Daewoo DWF-7094 - Gear Mechanism Assy

11

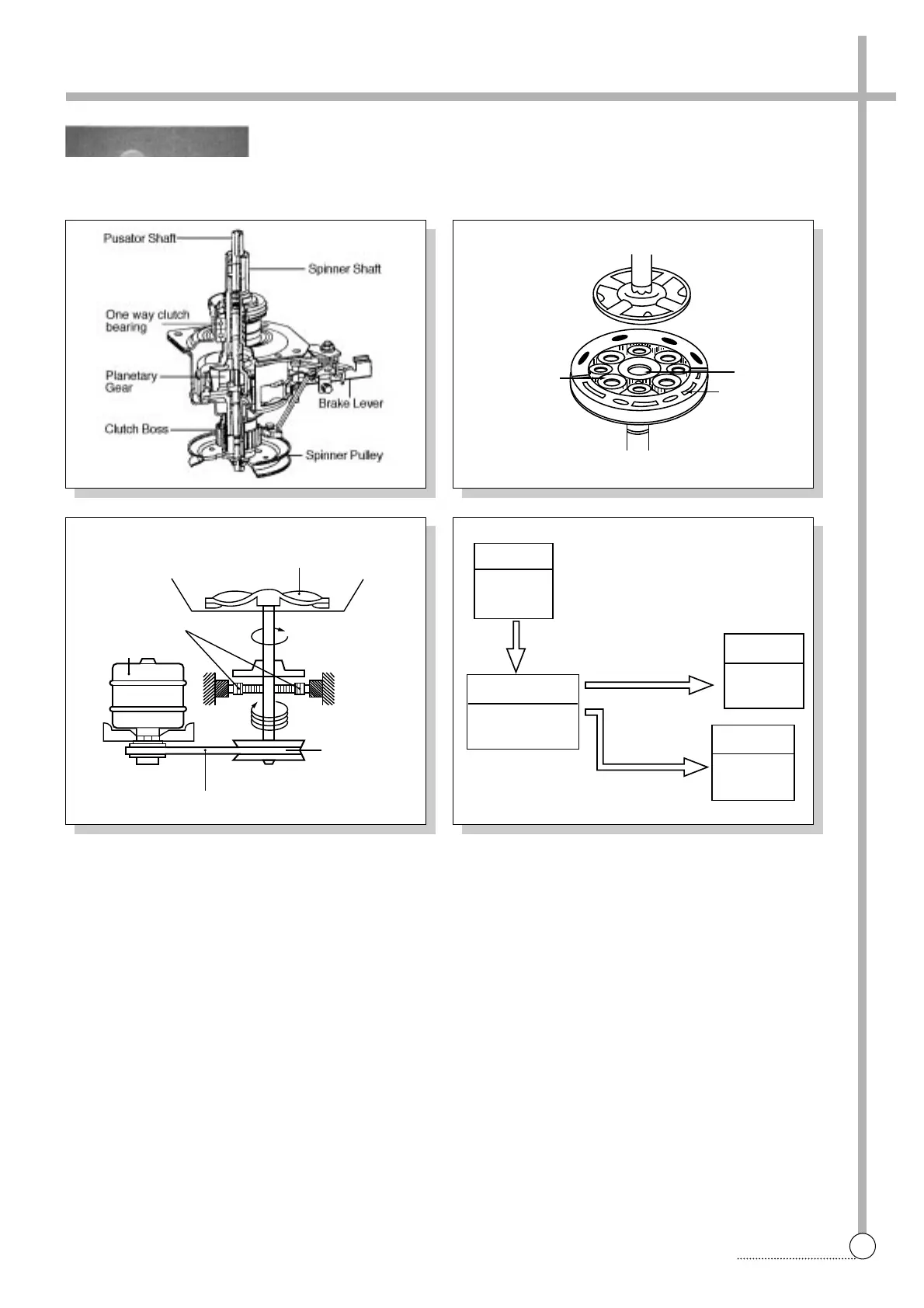

EXPLANATION
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small
sized clothes.
Planetary gear
Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1490 r.p.m
(50Hz)
Gear Unit as
Directly
1/5
Tub
640 r.p.m
Pulsator
128 r.p.m
Gear Pulley
640 r.p.m
Gear Mechanism Ass’y
