EXPLANATION
Automatic Unbalance Adjustment
Circulating-Water
The alarm finished when you close the lid after opening it. Check the unbalance of the wash load and the
installation condition.
NOTES
Filter
Tu b
Outer tub
Water
channel
Pulsator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1 When the lid is closed, the safety switch contact is “ON” position.
2 In case that wash loads get uneven during spin, the outer tub hits the safety switch due to the serious vibration,
and the spin process is interrupted.
3 In case that P.C.B. ASS’Y gets “OFF” signal from the safety switch, spin process are stopped and rinse process is
started automatically by P.C.B. ASS’Y.
4 If the safety switch is operated due to the unbalance of the tub, the program is stopped and the alarm is given.
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.

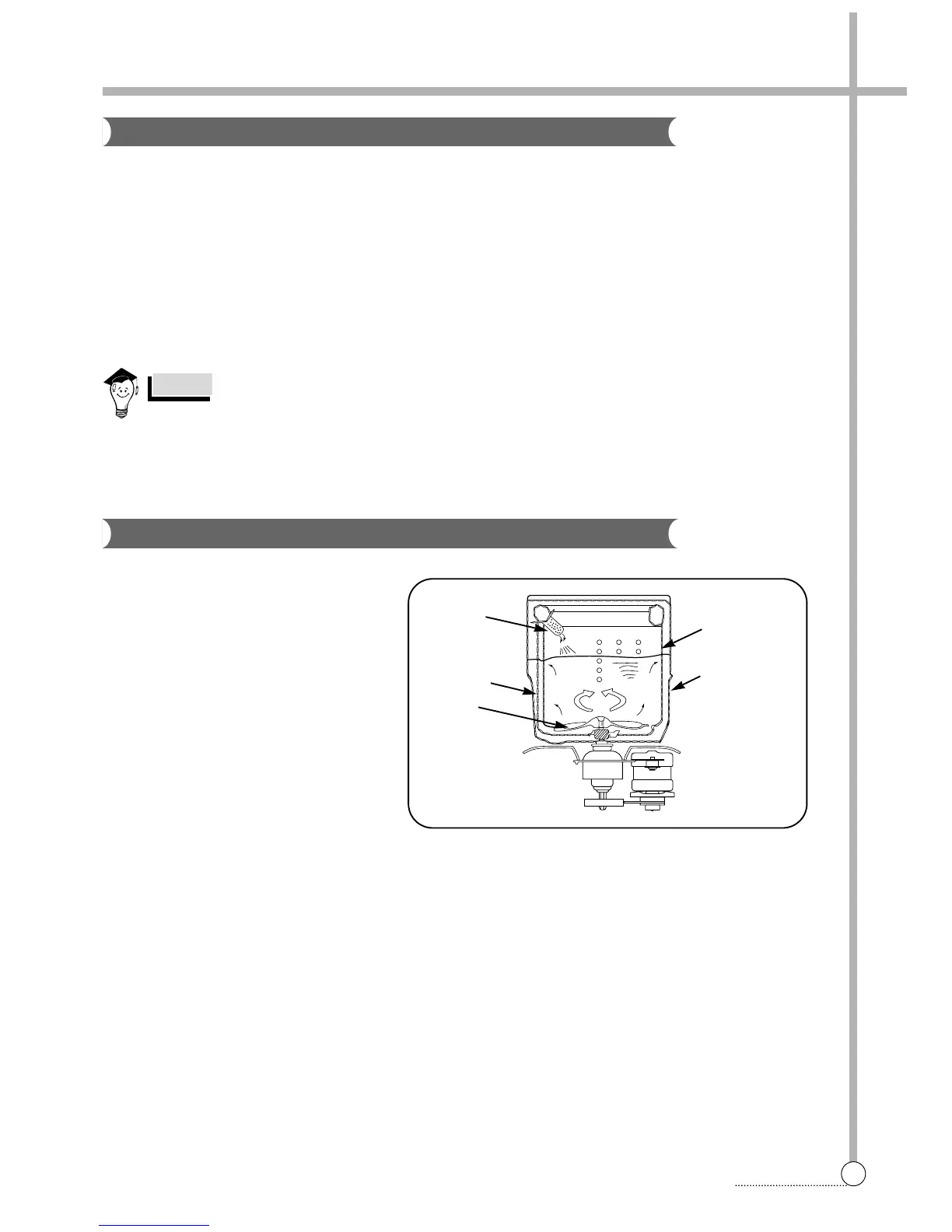

When the pulsator rotates during the washing
or rinsing process, the water below the pul-
sator vanes creates a water currents as shown
in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.
