23
THE REPAIR
No. Process Notice
Assemble 2
5
6
7
8
Clutch Tip
Dr
Syn
3.5~4.5
keep distance 2~3mm

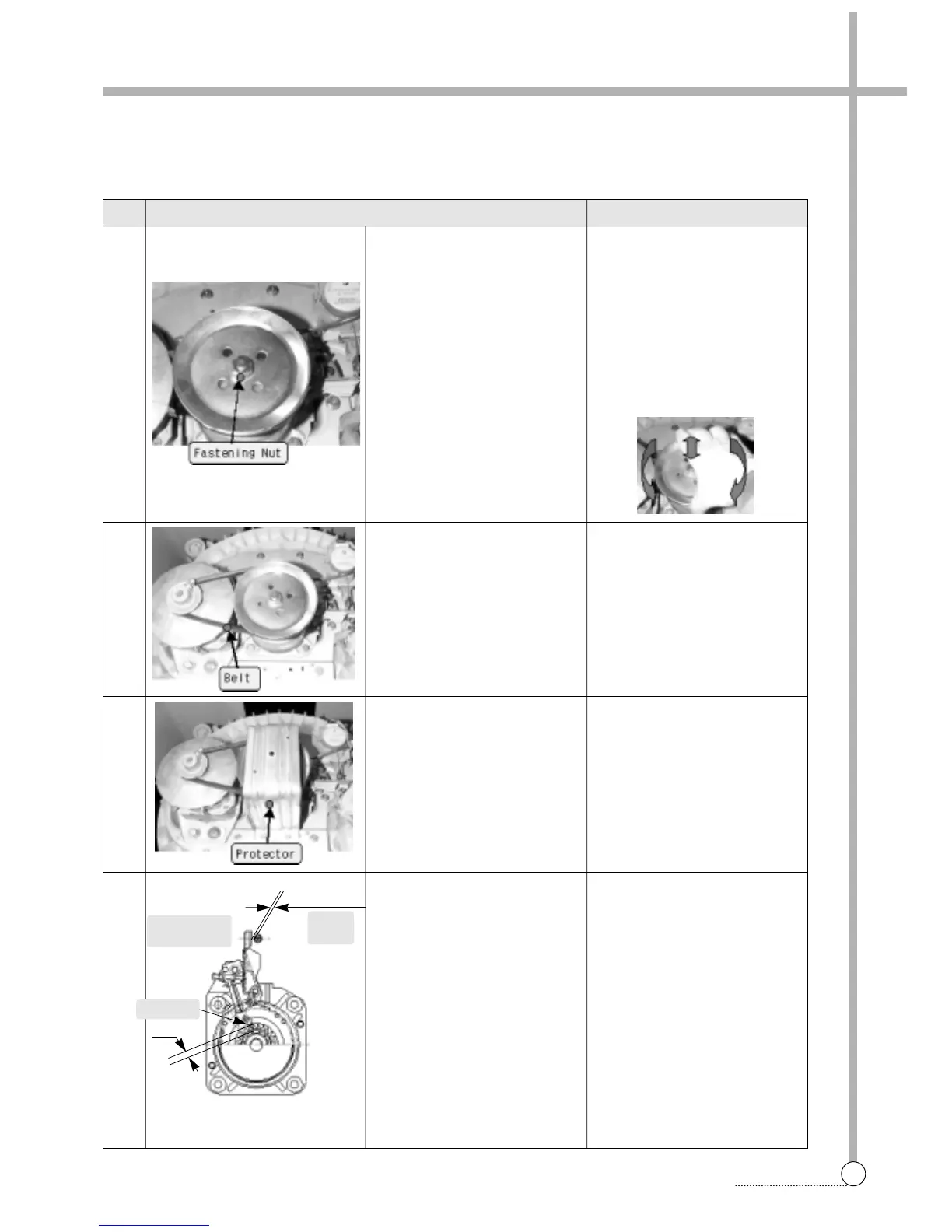

Assemble the fastening nut
Assemble the Belt
Assemble the protector
Final checking
- Use fixing jig and 17mm
socket wrench
as if disassembling,
as fastening torque about
100~200kgf-cm.
- Check the end-play, up and
downward and check the bind-
ing force, too much or not on
bi-direct of rotation.
Finally, check the distance
between brake lever and control
bolt. (2~3mm)
Also, check the interferance
depth both clutch tip and clutch
boss(3.5~4.5mm)
To Next Page
