REPLACEMENT OF MAIN COMPONENTS

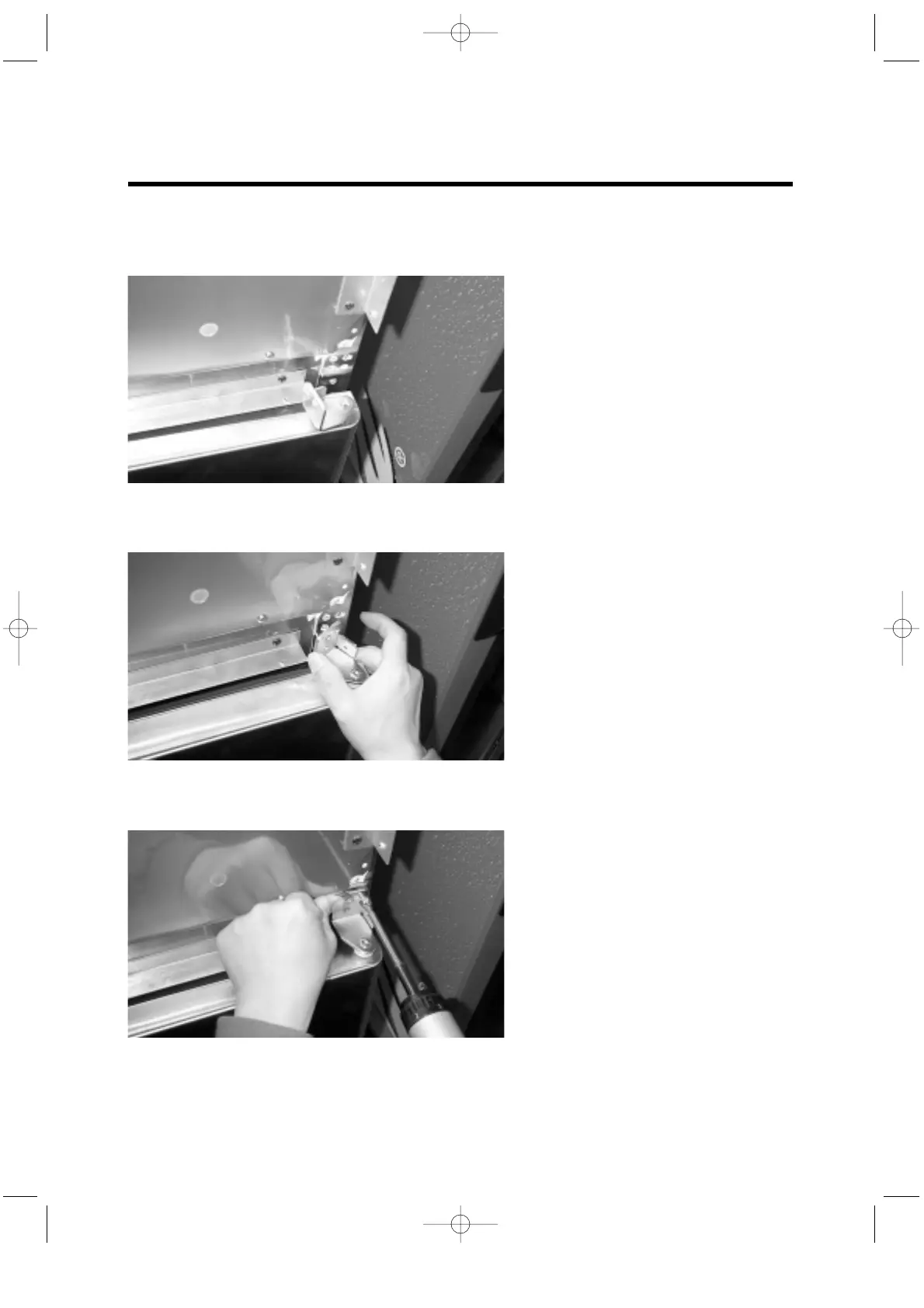

K. Initial position of the hinge must be as below.
L. Turn the hinge 90˚ CW. This turning causes torsion strength of the bar spring that
shuts the door(s) automatically.
M. Screw the hinge with pushing it. After installation of the door(s), assemble the top
grille panel.
