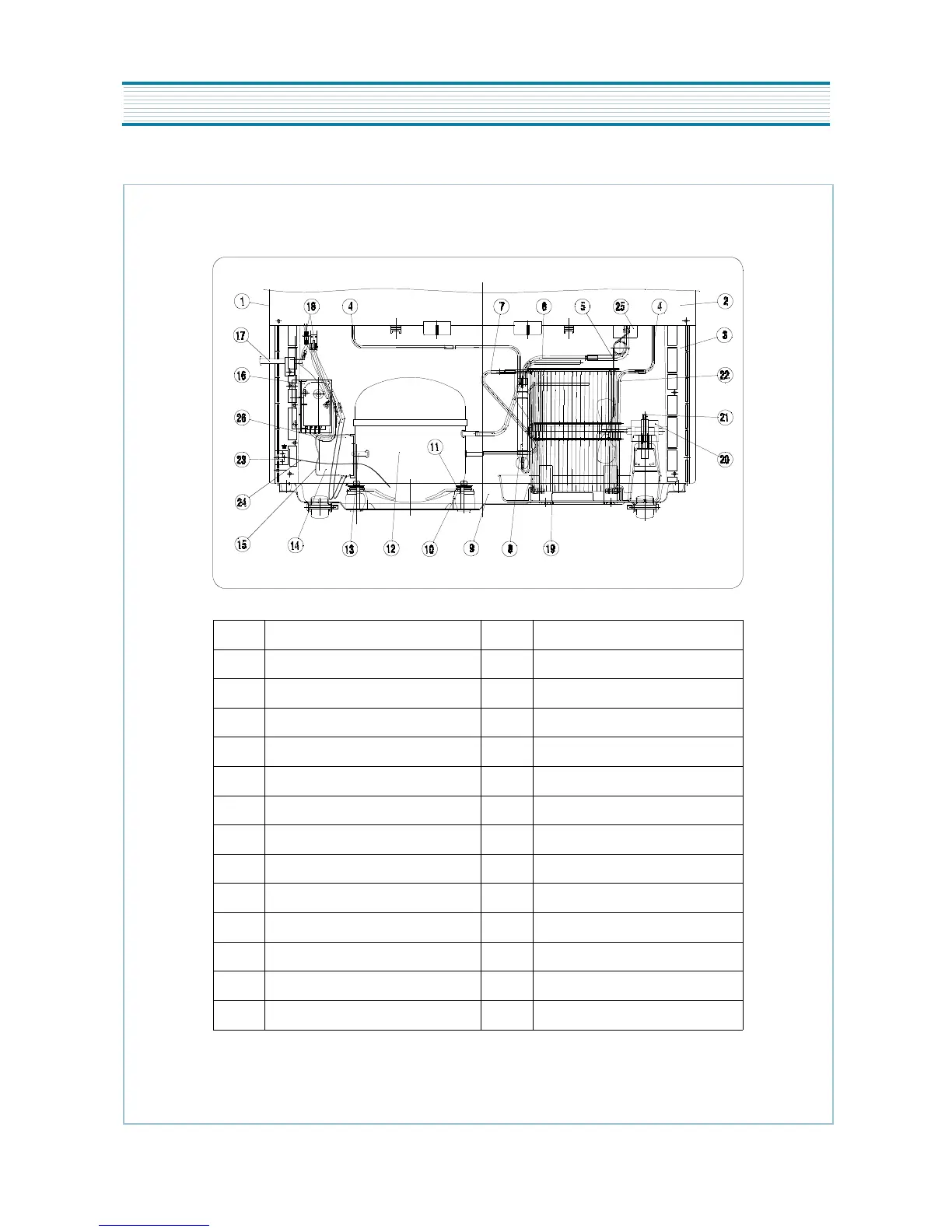

MACHINE ROOM VIEW AND PART LIST
PART NAME
CABINET AS
COVER CAB
BASE CAB AS
PIPE HOT
PIPE SUC AS
PIPE SUC CONN
PIPE CONN A
DRYER AS
BASE COMP AS
ABSORBER COMP
WASHER COMP * T
COMPRESSOR
PIPE SERVICE
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
NO.
14
15
16
17
18
19
20
21
22
23
24
25
26
PART NAME
SWITCH P-RELAY AS
BAND RELAY
BOX POWER AS
CORD POWER AS
HARNESS MAIN
CASE VAPORI
C-FAN MOTOR
FIXTURE C MOTOR AS
WI-CON AS
BRACKET EARTH
WIRE EARTH
BANGJIN GUM
HARNESS TIMER AS
