Daewoo FR-430 - Machine Room Component View and List

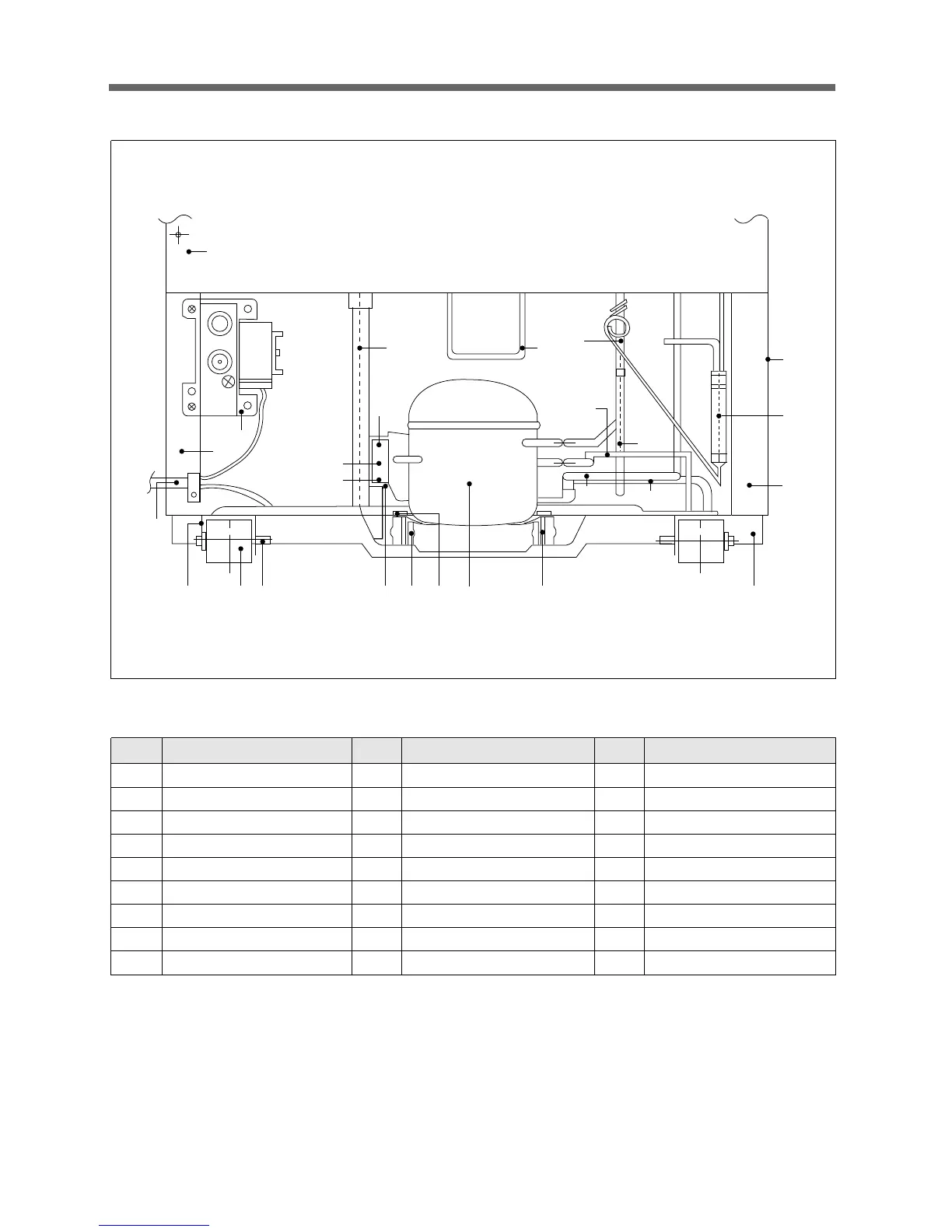

7. MACHINE ROOM VIEW AND PART LIST
7
1
23
22
25
24
7
3
6
26
4 5
9
8
10 11
13 14
12
16
17
18
21
2
15
19
20
NO PART NAME NO PART NAME NO PART NAME
1 CABINET COVER 10 RELAY BAND 19 SUCTION PIPE
2 CABINET 11 ABSORBER 20 BACK PLATE PIPE
3 POWER BOX 12 BOLT 21 REINFORCE *L
4 CASTER 13 WASHER 22 REINFORCE *R
5 CASTER PIN 14 COMPRESSOR 23 DRAIN HOSE (B)
6 CASTER FIXTURE 15 PIPE (PA) 24 COMPRESSOR BASE
7 PTC-RELAY 16 PIPE (CH) 25 PIPE (AE)
8 OVERLOAD 17 PIPE (AC) 26 POWER CORD
9 RELAY COVER 18 DRYER
