Daewoo FRS-U20DF. - Bracket Geared Motor Assembly Check

36
NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
14
25
3
6
- Remove 2 screws.
- Pull forward Bracket Geared Motor.
- Unscrew (4 points).
- Separate 6 pin housing of Bracket
Geared Motor from the top connector.
- Check Solenoid Valve and Geared Motor.
2) How to Check Hose Ice Maker Tube Assembly
SPEC. CRITERION
- GOOD : 11.3 ohm(+- 10%)
(10.8 ~ 12.7 ohm)
- DEFECTIVE ;
Change the Geared Motor.
PARTS HOW TO CHECK
- GOOD : 145 ohm(+- 8%)
(133 ~ 156 ohm)
- DEFECTIVE ;
Change the Cube Sol Valve.
- Check resistance value of
2 terminals with a Multi Tester.
- SPEC. NAME
:DAG-6502DEC
- VOLTAGE
:220/240V,50Hz
- SPEC. NAME
:Cube SN8
- VOLTAGE
:220/240V,50Hz
- Check resistance value of
2 terminals with a Multi Tester.
Geared Motor
Cube Sol Valve

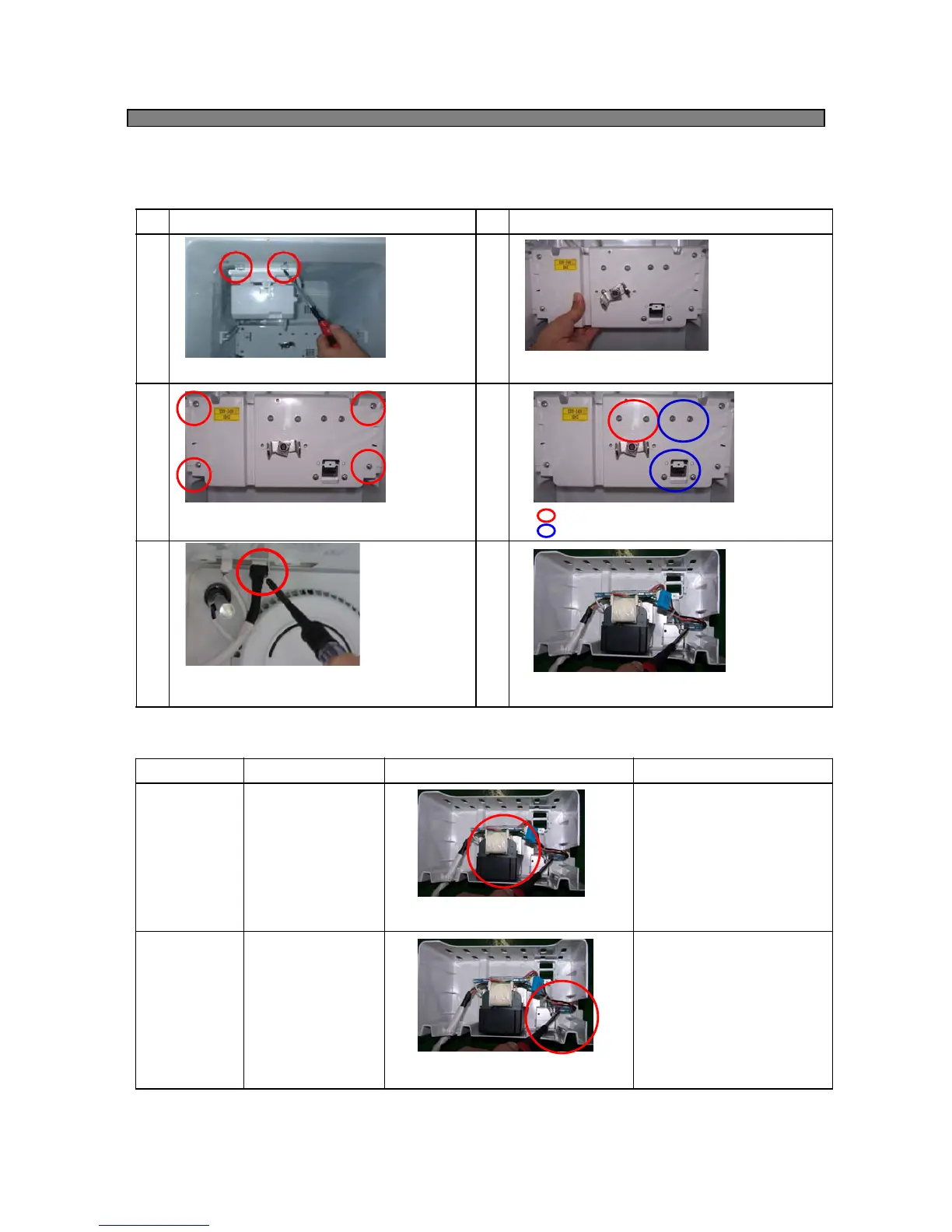

8-2. Bracket Geared Motor Assembly
1) Disassembling Procedure
Unscrew (red 2 screws).
Unscrew (blue 4 screws).
