Daewoo FRS-U20DF. - Page 71

71

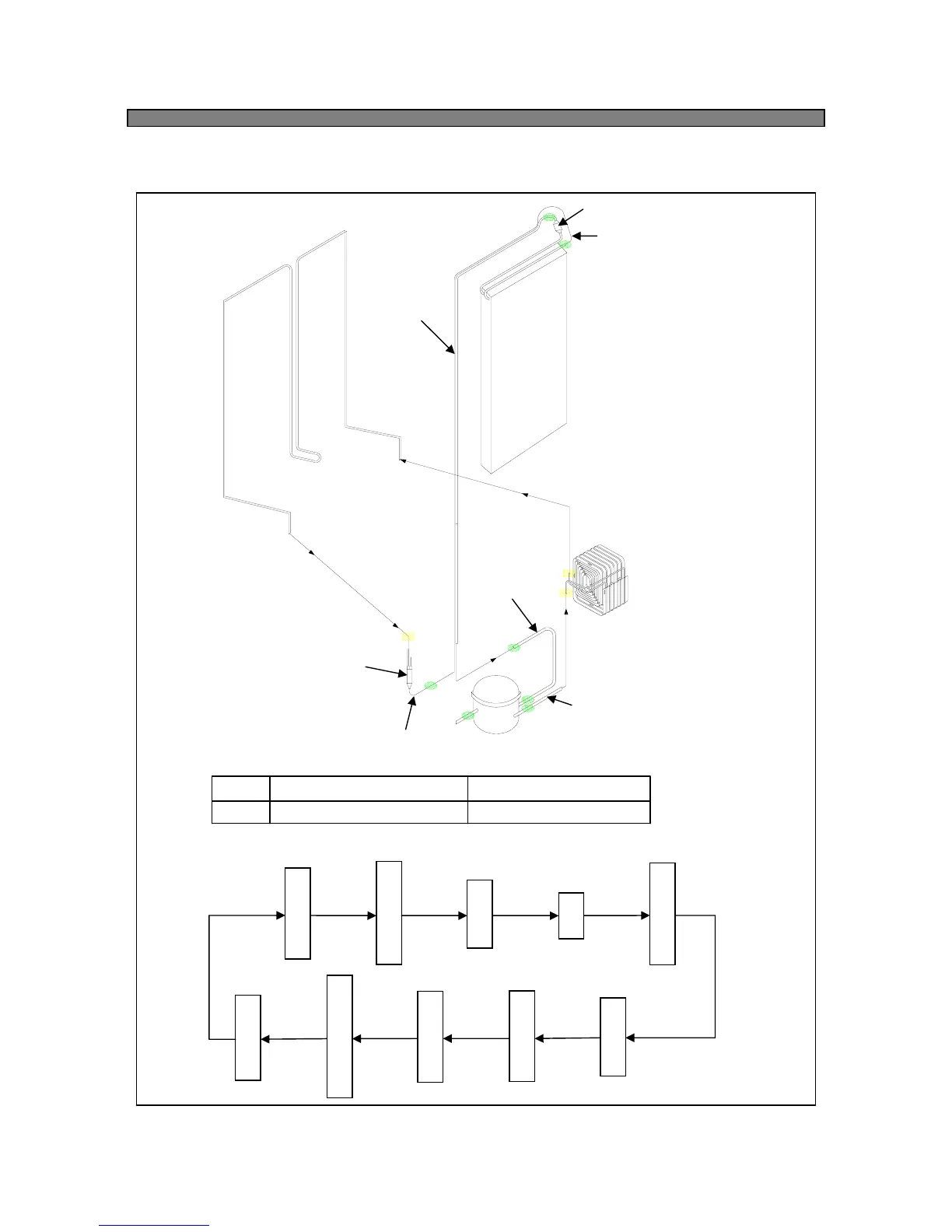

10-5. Brazing Reference Drawings.
- Welding Point
●
■
Copper Welding (Ag 5%) 7 Points
3 Points
Silver Welding (Ag 35%)
Hot Pipe
F
R
Evaporator
Condenser
I-Pipe
Accumulator
Suction Pipe
Dryer
Capi-Tube
Pipe Suc Conn
Pipe Conn B
Compressor
- Flow of Refrigeration Cycle
Compressor
Pipe Conn. B
Wire-Con. Pipe
Hot Pipe
Dryer
Capillary Tube
Evaporator
Accumulator
Pipe Suction Conn
Suction Pipe
High Low
