Assembly And Construction

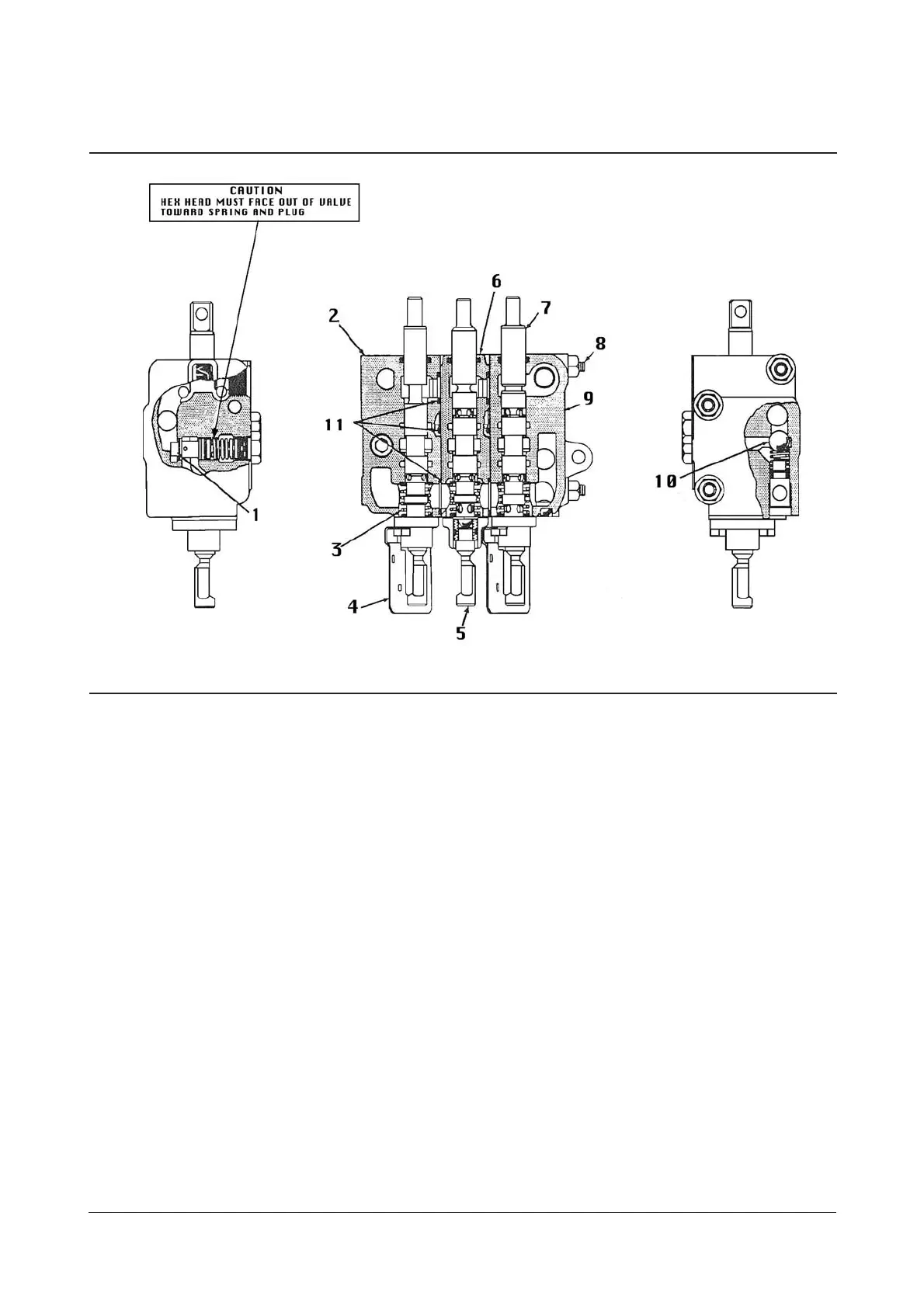

Above figure is a cross-section view showing
construction and assembly of a three-section valve.
The inlet section also contain a relief valve
assembly.
Passages between the bodies connect each section
to the common inlet and tank ports.
Seal rings between the sections seal the connecting
passages, Sections are held together by studs and
nuts.
17 of 29New Hydraulic Systems Systems Operation
(1) Relief Valve. (2) Inlet Body. (3) Center Spring. (4) Switch Bracket.
(5) Cam. (6) Center Body. (7) Spool. (8) Tie Stud.
(9) Outlet Body. (10) Check Valve. (11) Seal Rings.
Hydraulic Control Valve
