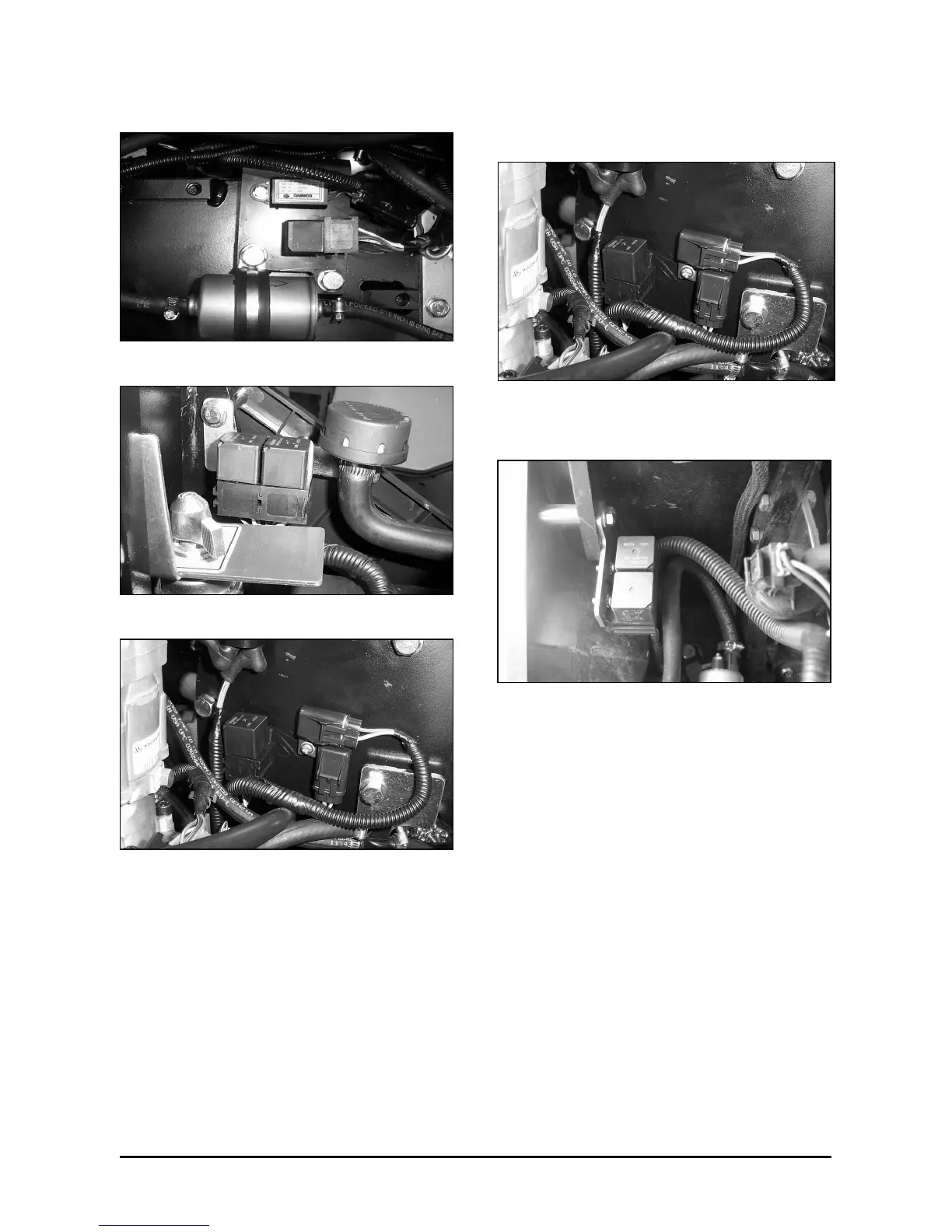

Maintenance Section
-146-
G20/25/30/32E-3 (Dual fuel Only)
Located on the right frame rail.
Located on the left frame.
Located rear side of valve mounting bracket.
G20/25/30/33p-3 (Dual fuel Only)
Main power rela
y, main fuse, fuel fuse
Located rear side of valve mounting bracket.
Fuel select relay1, relay2
Located on the left frame.
147
149
