Daewoo HC-4130X User Manual

Surround speaker
Surround speaker
Center speaker
Woofer speaker
Active subwoofer B
[USER Optional]
Audio Input
Front speaker
Left ch.
Front speaker
Right ch.
Left ch.
Right ch.
Active subwoofer A
[USER Optional]
Audio Input

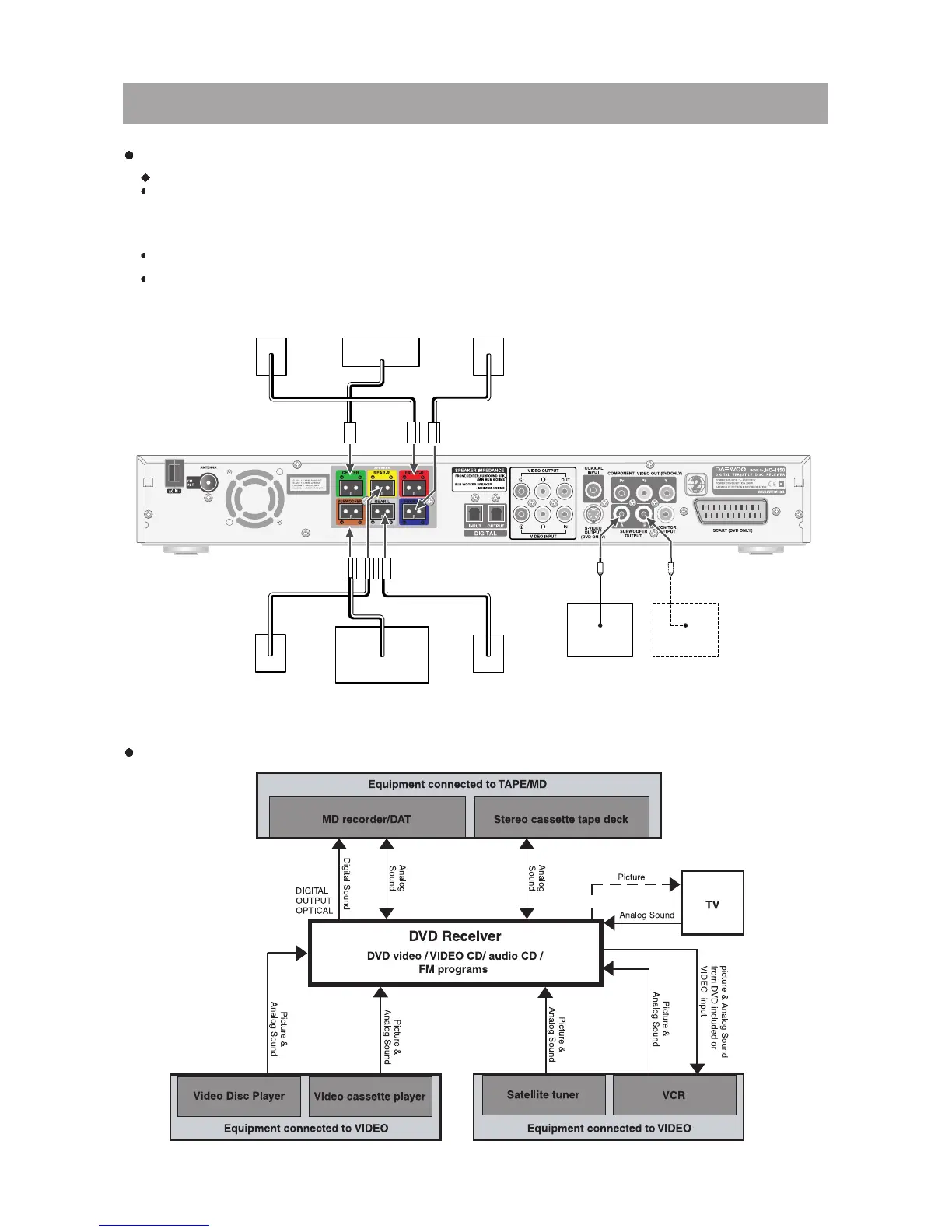

4. Connecting to Equipment
8
Before connecting
This machine is designed to reproduce optimum sound quality when speakers with the specified impedance below are connected.
Please check the following information and choose speakers with appropriate impedance for the connections.
Front speakers / Center speaker / Surround Speakers : 6 ohms min. per speaker
Woofer speaker : 4 ohm min. per speaker
To prevent damage to circuits, never short-circuit the positive (+) and negative (-) speaker wires.
Do not connect the speaker cable to the L and R connectors at the same time and do not connect more than one speaker to the
same speaker connectors.
Connecting to Speaker
Connecting to Recoring Equipment
RED
BLUE
GREEN
GRAY
BROWN
YELLOW
