The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when
the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave.
(1) Primary interlock switch
When the door is closed, the hook locks the oven door.
If the door is not closed properly, the oven will not operate.
When the door is closed, the hook pushes the lever downward.
The lever press the button of the primary interlock switch to bring it under ‘ON’ condition.
ADJUSTMENT 1.
When the door is closed, the switch button is
pushed by the hook.
The movement of the switch button should exceed
1.2mm measured at the top of the button.

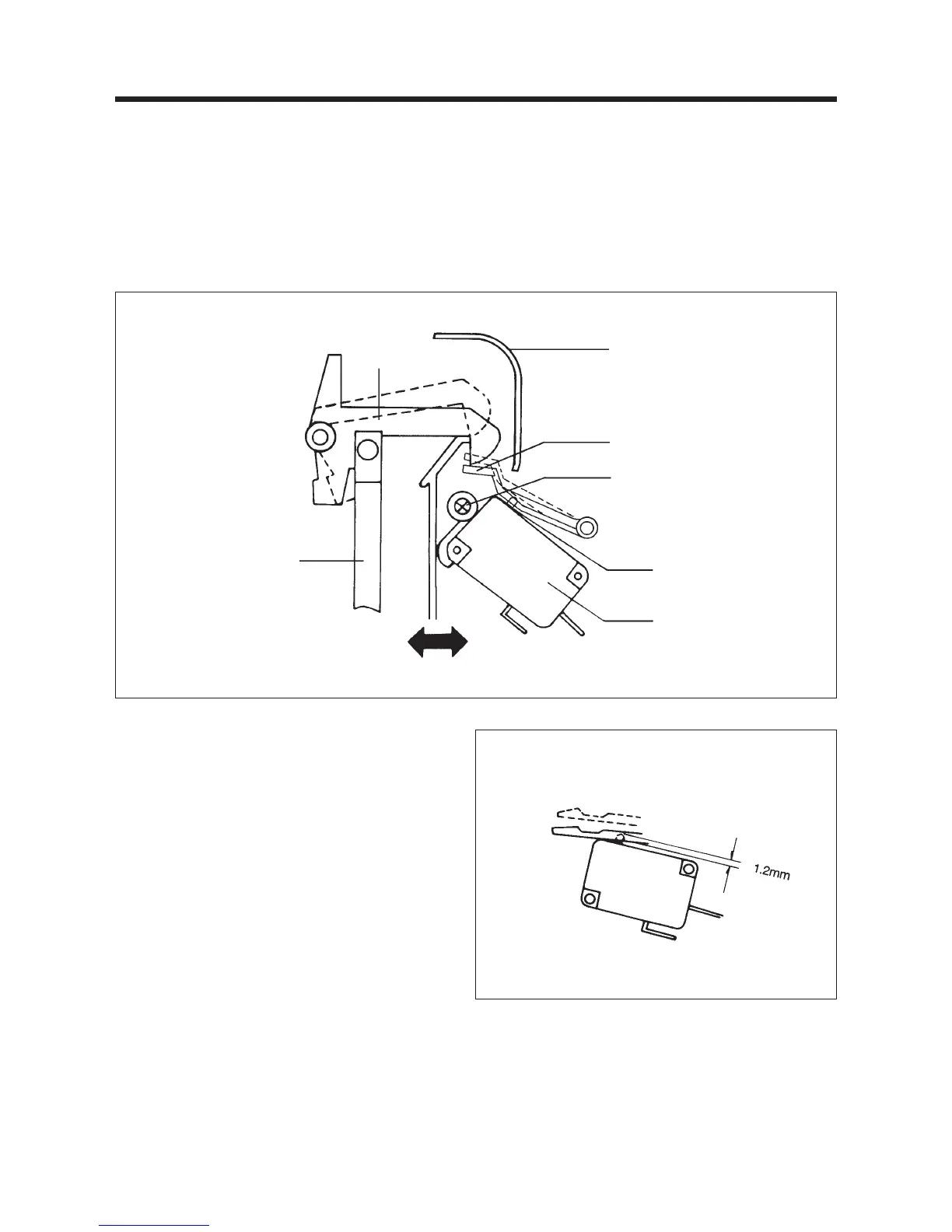

INTERLOCK MECHANISM FUNCTIONS AND ADJUSTMENTS
Latch
Pivot Lever
Mounting screw
Button
Primary interlock switch
Hook lever
Hook
