NO PART NAME PART CODE Q’TY DESCRIPTION REMARK

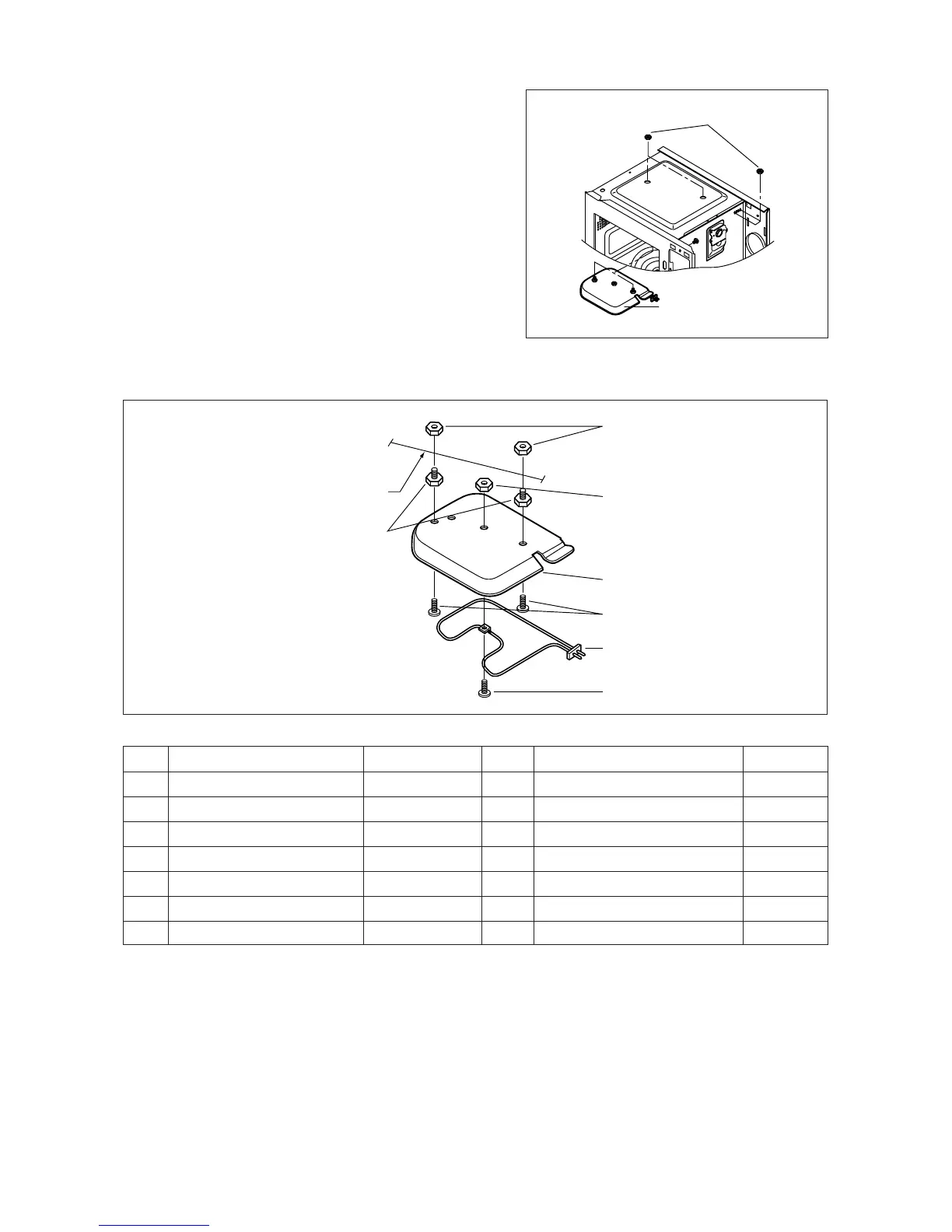

10. To remove insulator Heater assembly.
(1) Remove the four HEX Nuts ¤ .
(2) Remove the Insulator Heater assembly ¤Ł .
(3) Reverse the above steps for reassembly.
11. To remove Heater Part.
1
2
1
2
3
4
5
6
7
3513301100
3512801700
7002500613
7392500008
7002400413
3515000700
7S627W50X1
1
1
1
1
2
2
2
SPP T0.8
230V 1000W
TRS 5X6 MFCR
6N-2-5 SUS
TRS 4X4 MFCR
C3771BD
FLG NUT M5X0.8P MFZN
INSULATOR HEATER
HEATER
SCREW MACHINE
NUT HEX
SCREW MACHINE
SPACER INSULATOR*I
NUT HEX
(1) Remove the HEX Nut ¤Œ .
(2) Remove the Insulator Heater ¤ and Heater ¤Ł .
(3) Remove the two screws ¤º .
(4) Reverse the above steps for reassembly.
TOP PLATE
1
4
7
6
5
2
3
