Daewoo KOG-36052S - Page 28

28
REF NO PART CODE PART NAME DESCRIPTION Q’TY REMARK
3516903610 KOG-3605
3516903600
1
KOG-3615/35
B1
3516903620
BUTTON DOOR OPEN ABS
KOG-3625
3516903630 KOG-3645
B2
4416D55061
BUTTON SPRING
SWPA 1 KOG-3605
441B655072 HSWR 1 KOG-3625/15/35
3513402610 KOG-3605/35
B3
3513402600
KNOB VPC ABS
1
KOG-3615
3513402620 KOG-3625
3513402640 KOG-3645
3516711400 KOG-3605
B4
3516709800
CONTRON-PANEL ABS 1
KOG-3615/35
3516709810 KOG-3625
3516709820 KOG-3645
B5
3513701400
LEVER DOOR OPEN POM
1 KOG-3605/15/25/35
3513701410 1 KOG-3645
B6 4415A66910 SW MICRO VP-531A-OF 1
B7 7121301511 SCREW TAPPING T2S PAN 3X15 MFZN 1
B8 4415A17352 SW MICRO VP-533A-OF 1
B9 7121301511 SCREW TAPPING T2S PAN 3X15 MFZN 1
B10 3517400500 COUPLER VPC KNOB POM 1
B11 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1
B12 3517400400 COUPLER TIMER POM 1
3513402510 KOG-3605/35
B13
3513402500
KNOB ABS 1
KOG-3615
3513402520 KOG-3625
3513402540 KOG-3645
B14 3518203800 TIMER KN35MKD 24E-P 1
B15 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1
B16 3512764200 HARNESS TIMER KOG-36150S 1

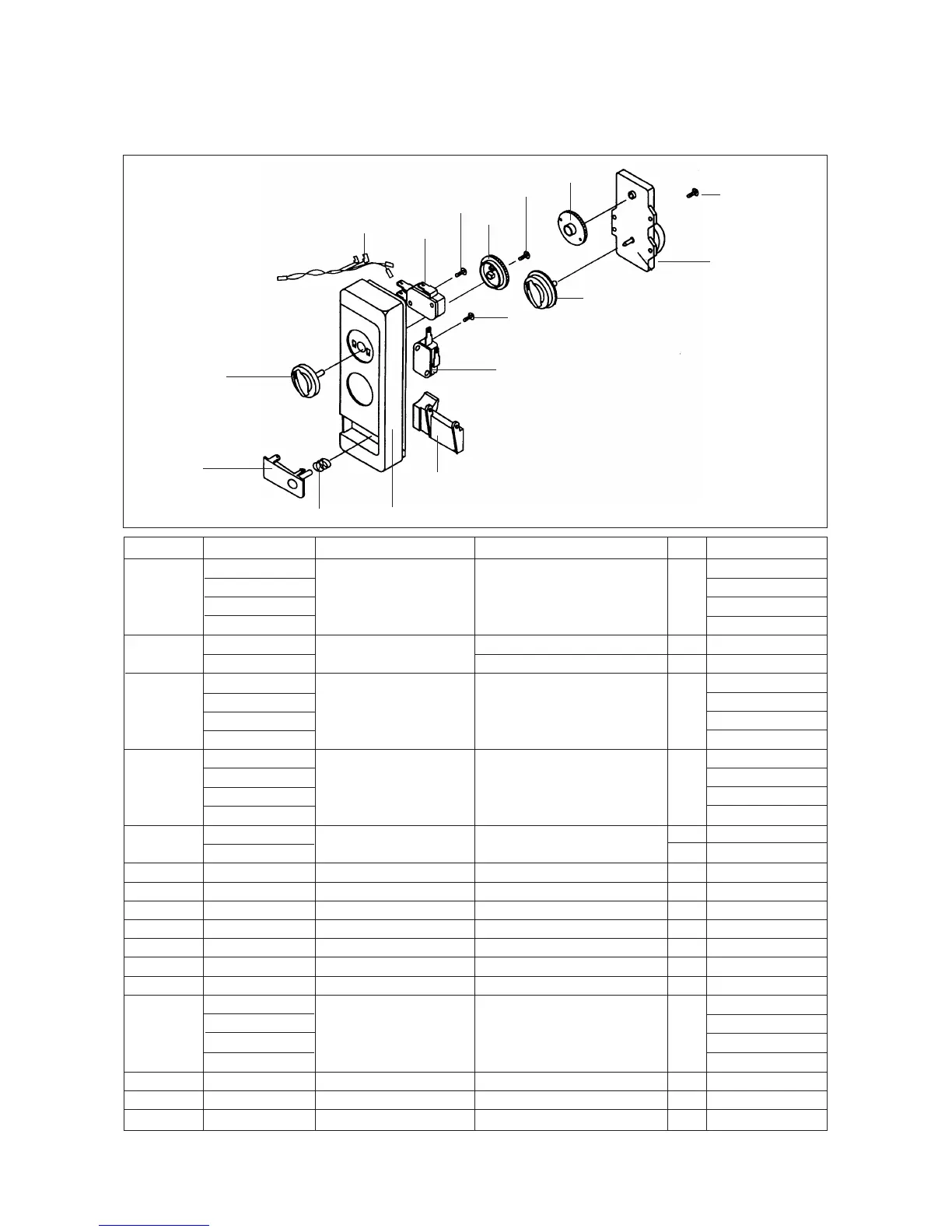

2. Control Panel Ass’y
CONTROL PANEL ASSEMBLY : 3516713840(KOG-3605)
3516713800(KOG-3615)
3516713810(KOG-3625)
3516713880(KOG-3635)
3516716010(KOG-3645)
B16
B6
B7
B10
B11
B12
B15
B14
B13
B9
B8
B5
B4B2
B1
B3
