Door seal - Door seal maintains the microwave energy within the oven cavity and prevents microwave leak-
age.
22
Reflector (Insulator Heater)
33
Heating Element
44
Oven cavity
55
Safety interlock system
66
Control Panel
77
Metal rack
88
Coupler - This fits over the shaft in the centre of the ovens cavity floor. This is to remain in the oven for all
cooking.
99
Roller guide - This must always be used for cooking together with the glass cooking tray.
00
Glass cooking tray - Made of special heat resistant glass. Food in a proper receptacle is placed on this
tray for cooking.
qq
Door viewing screen - Allows viewing of food. The screen is designed so that light can pass through, but
not the microwave.
ww
Door hook - When the door is closed, it will automatically shut off. If the door is opened while the oven is
operating, the magnetron will immediately stop operating.

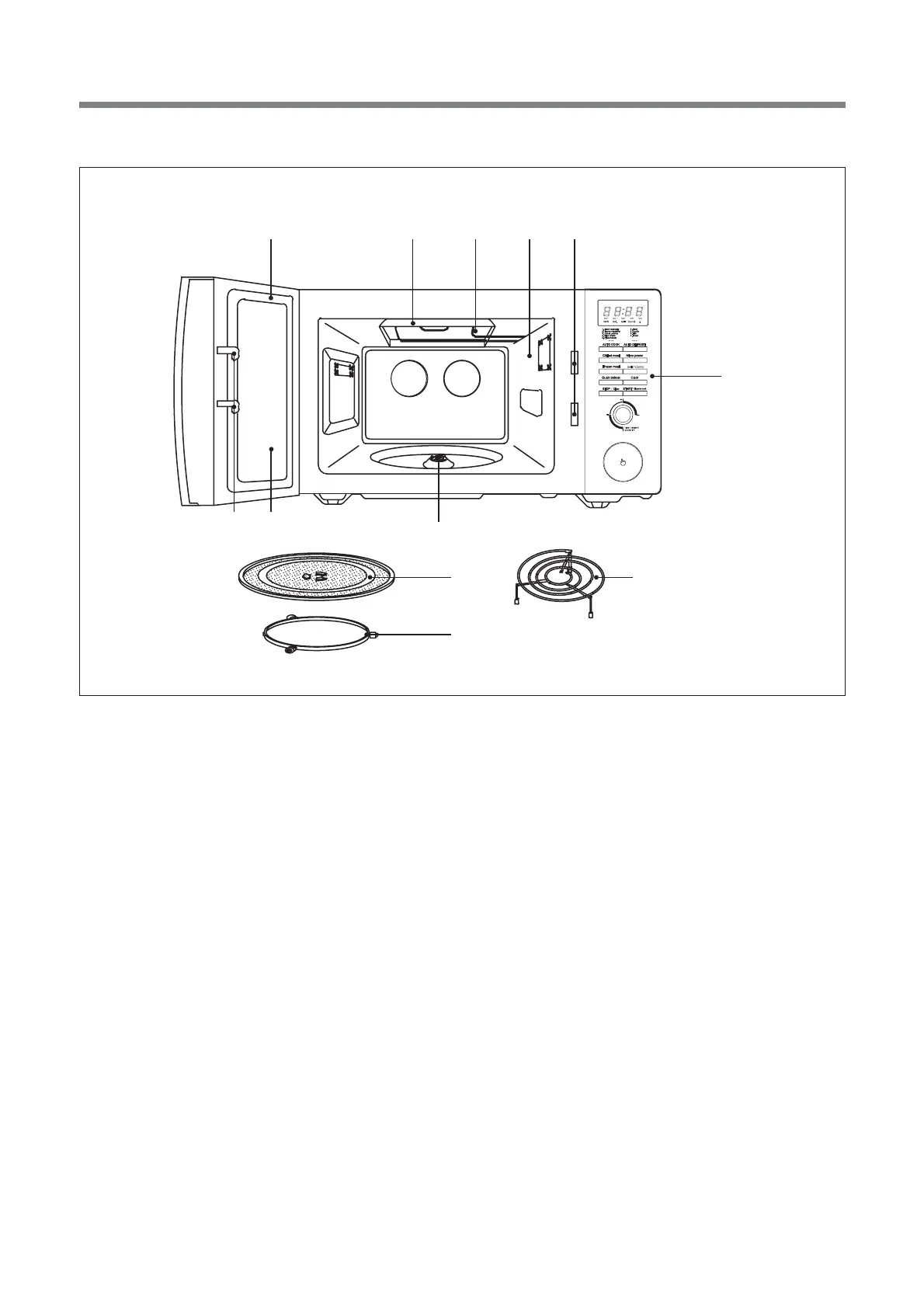

2. FEATURES DIAGRAM
