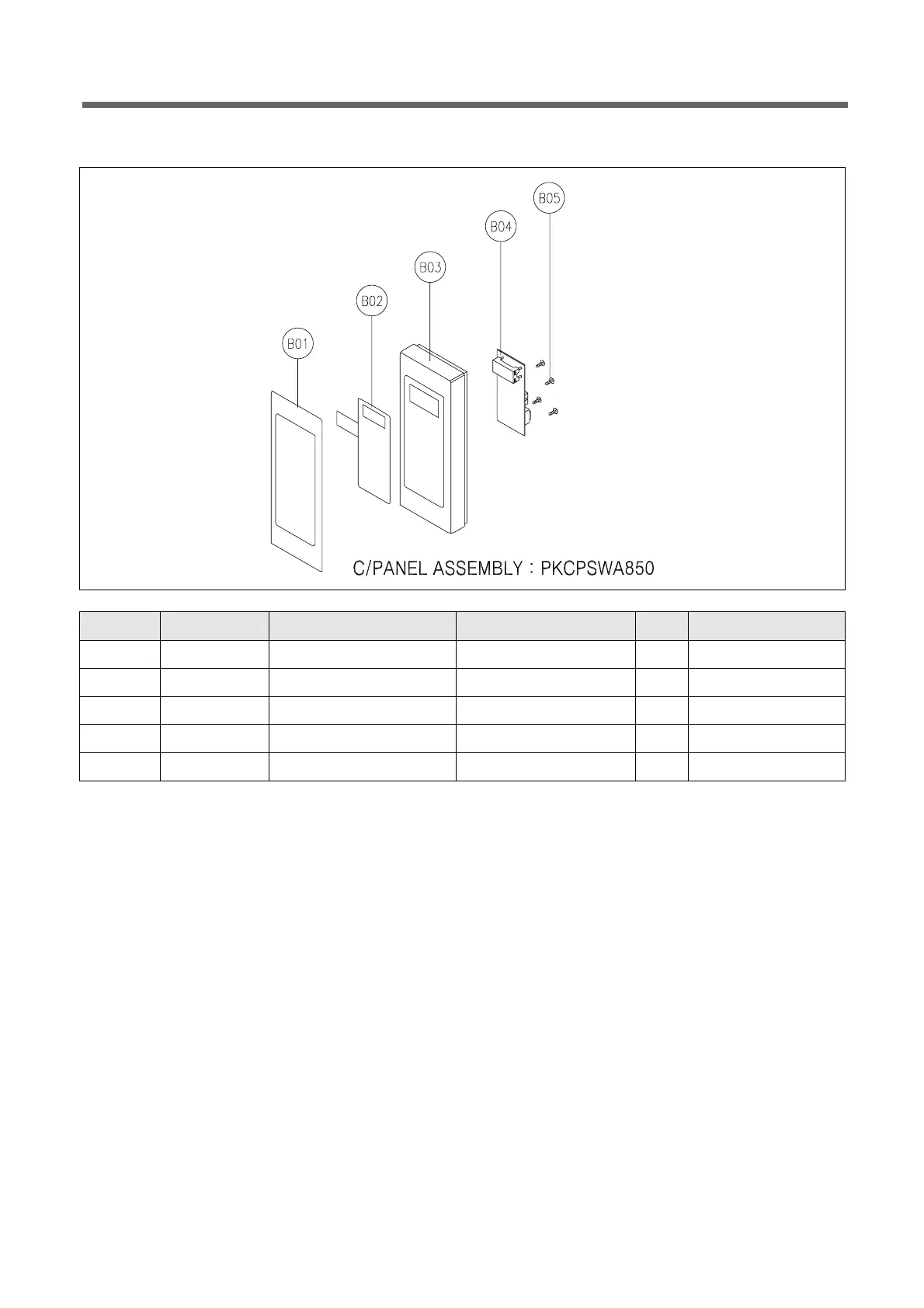

5. To remove control panel parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
B01 3511604850 DECORATOR C-PANEL SUS430 T0.5 H/L 1
B02 3518571900 SWITCH MEMBRANE KOR-1A7G9T 1
B03 3516727510 CONTROL-PANEL ABS SG-175 SG-0760D 1
B04 PKMPMSFK40 PCB MAIN MANUAL AS 1A(1000W,T,9,99) 1
B05 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 4
(1) Remove a screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
(2) Remove four screws which secure the PCB assembly to control panel.
(3) Disconnect membrane tail from the connector of the PCB assembly.
(4) Detach membrane from the control panel.
(5) Reverse the above steps for reassembly.
