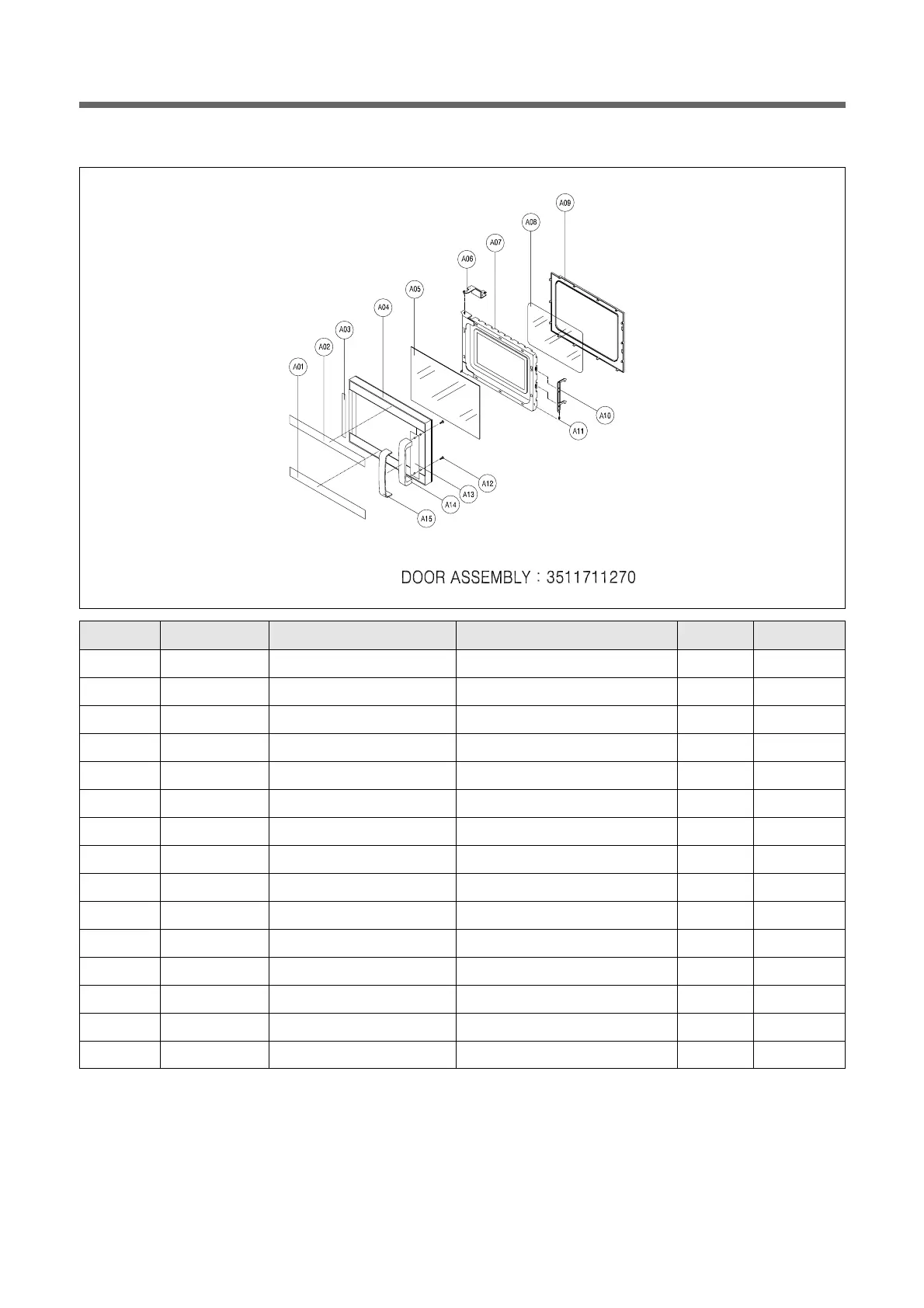

3. To remove door parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3511604730 DECORATOR DOOR *U SUS430 T0.5 H/L 1
A02 3511604720 DECORATOR DOOR *T SUS430 T0.5 H/L 1
A03 3511609510 DECORATOR DOOR *L SUS430 T0.5 H/L 1
A04 3512204370 FRAME DOOR ABS XR-401 SR-0320G 1
A05 3517005930 BARRIER-SCREEN *O TEMP GLASS T3.2, NO PRINT 1
A06 3515202900 STOPPER HINGE *T AS KOR-121M0A 1
A07 3511711300 DOOR PAINTING AS KOR-1A1G0A 1
A08 3517005800 BARRIER-SCREEN *I PETP T0.1 1
A09 3512301900 GASKET DOOR PP 5113MF6 1
A10 3513100730 HOOK POM BLACK 1
A11 3515101900 SPRING HOOK PW-1 1
A12 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1
A13 3511609310 DECORATOR DOOR *R SUS430 T0.5 H/L 1
A14 3512602700 HANDLE DOOR *U ABS XR-401 H-2938 1
A15 3512602600 HANDLE DOOR *T SUS304 T0.6 HAIR LINE 1
(1) Remove the gasket door from door painting as.
(2) Remove the barrier screen inner from door painting as.
(3) Remove the frame door from door painting as.
(4) Remove the stopper hinge top form door painting as.
(5) Remove the spring and the hook door painting as.
(7) Remove two screws holding the handle.
(8) Remove the handle from frame door.
(9) Reverse the above steps for reassembly.
