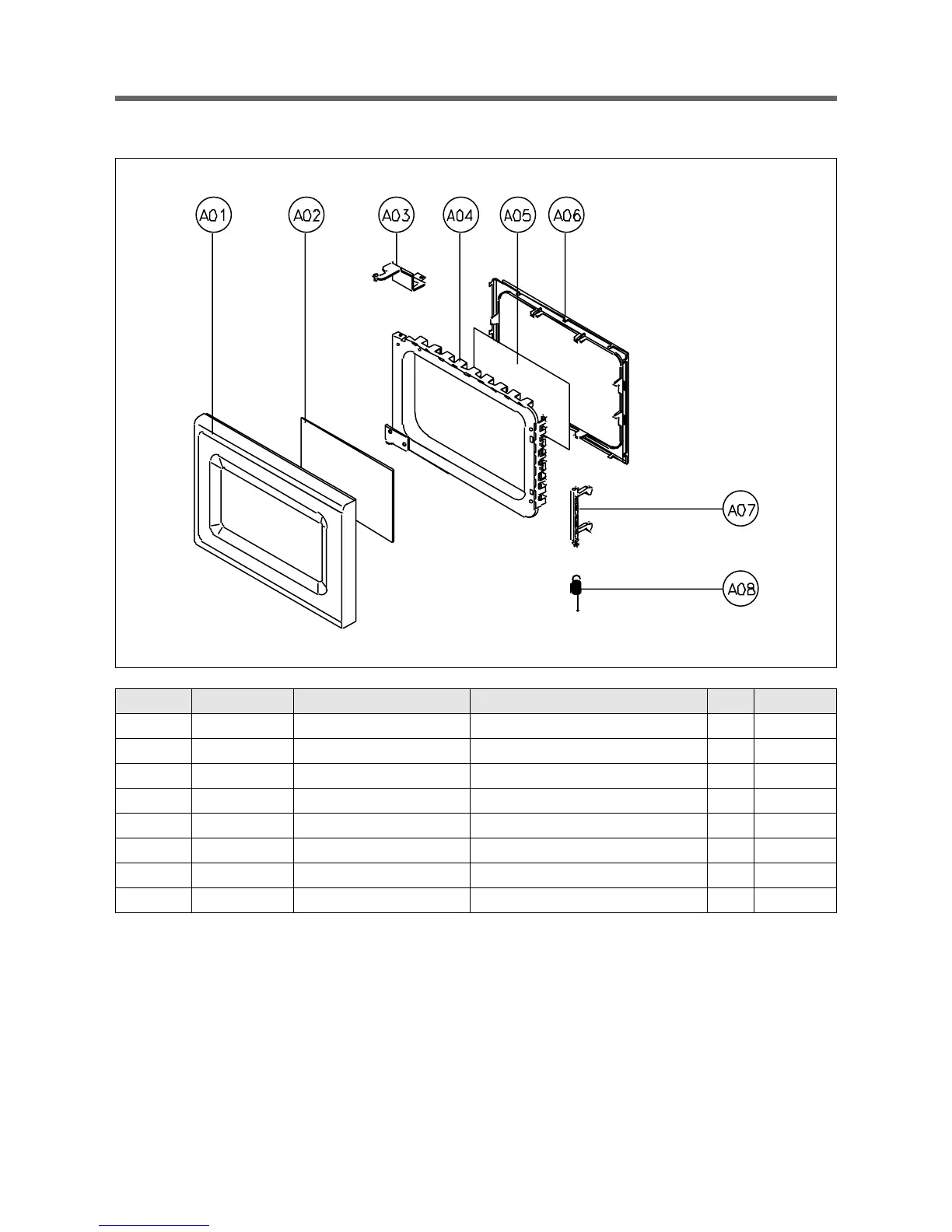

3. To remove door parts.
(1) Remove the gasket door from door weld as.
(2) Remove the door frame from door weld as.
(3) Remove the stopper hinge top from door weld as.
(4) Remove the spring and the hook.
(5) Remove the barrier screen outer from door frame.
(6) Reverse the above steps for reassembly.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3512203880 FRAME DOOR PP SI83C 1
A02 3517007300 BARRIER-SCREEN*0 PET T0.125 1
A03 3515204100 STOPPER HINGE *T AS KOR-63150S 1
A04 3511705500 DOOR WELD AS KOR-61150S 1
A05 3517002800 BARRIER-SCREEN *I T0.1 1
A06 3512300210 GASKET DOOR PP 1
A07 3513100700 HOOK POM 1
A08 3515101300 SPRING HOOK PW -1 1
