Main PCBs Trouble Diagnosis
A.When “No signal”in CVBS(RF, Monitor Out)
1)First check if other inputs are working
=>if other inputs are not working, replace MAIN PCB

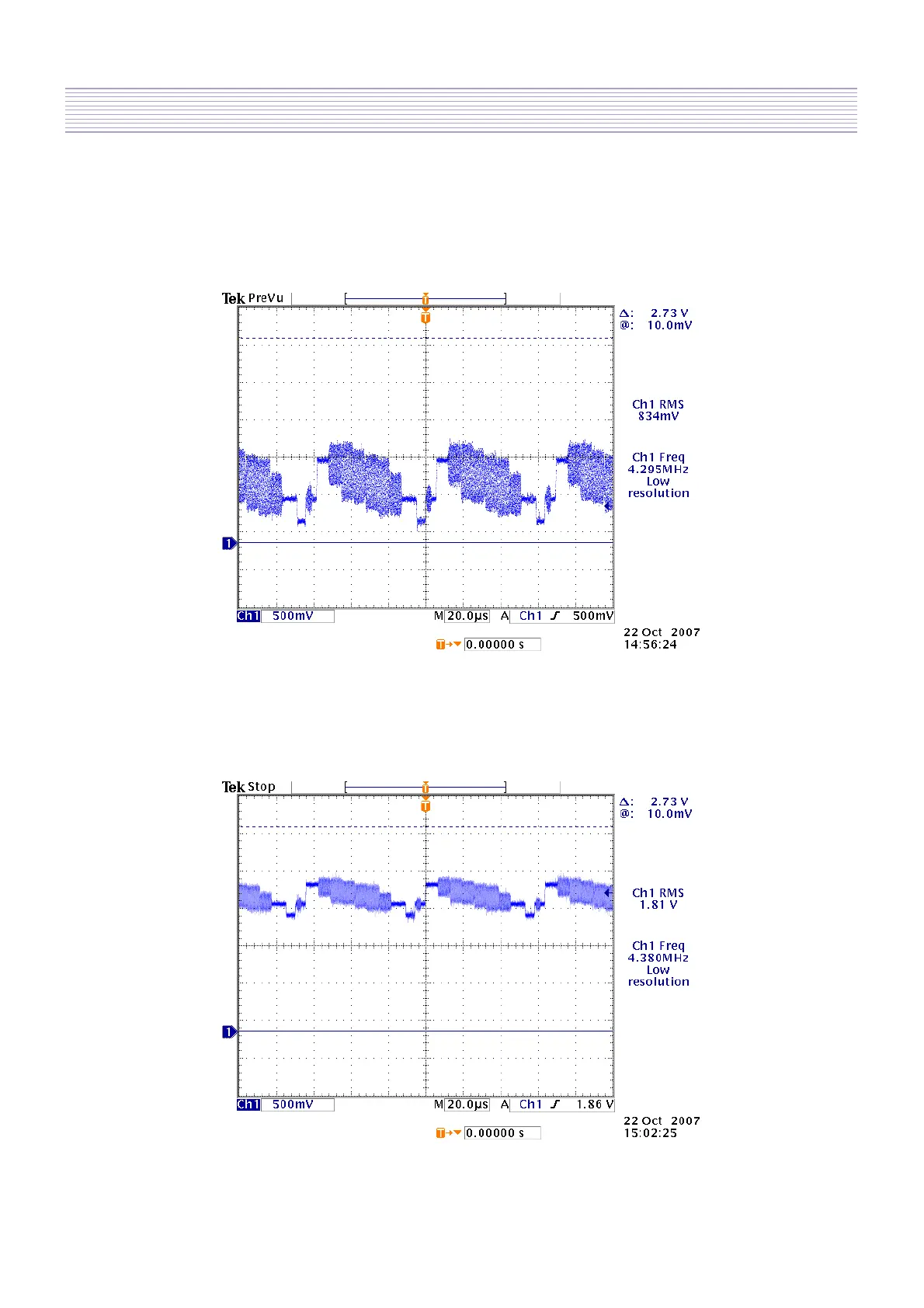

2)Checking waveforms with Color Bar Pattern(Using the oscilloscope)
- Main TP(RF) : CE103
- Main TP(Monitor Out) : RCA12
