Description of Each Block
4-1-3. COMPONENT_YPbPr

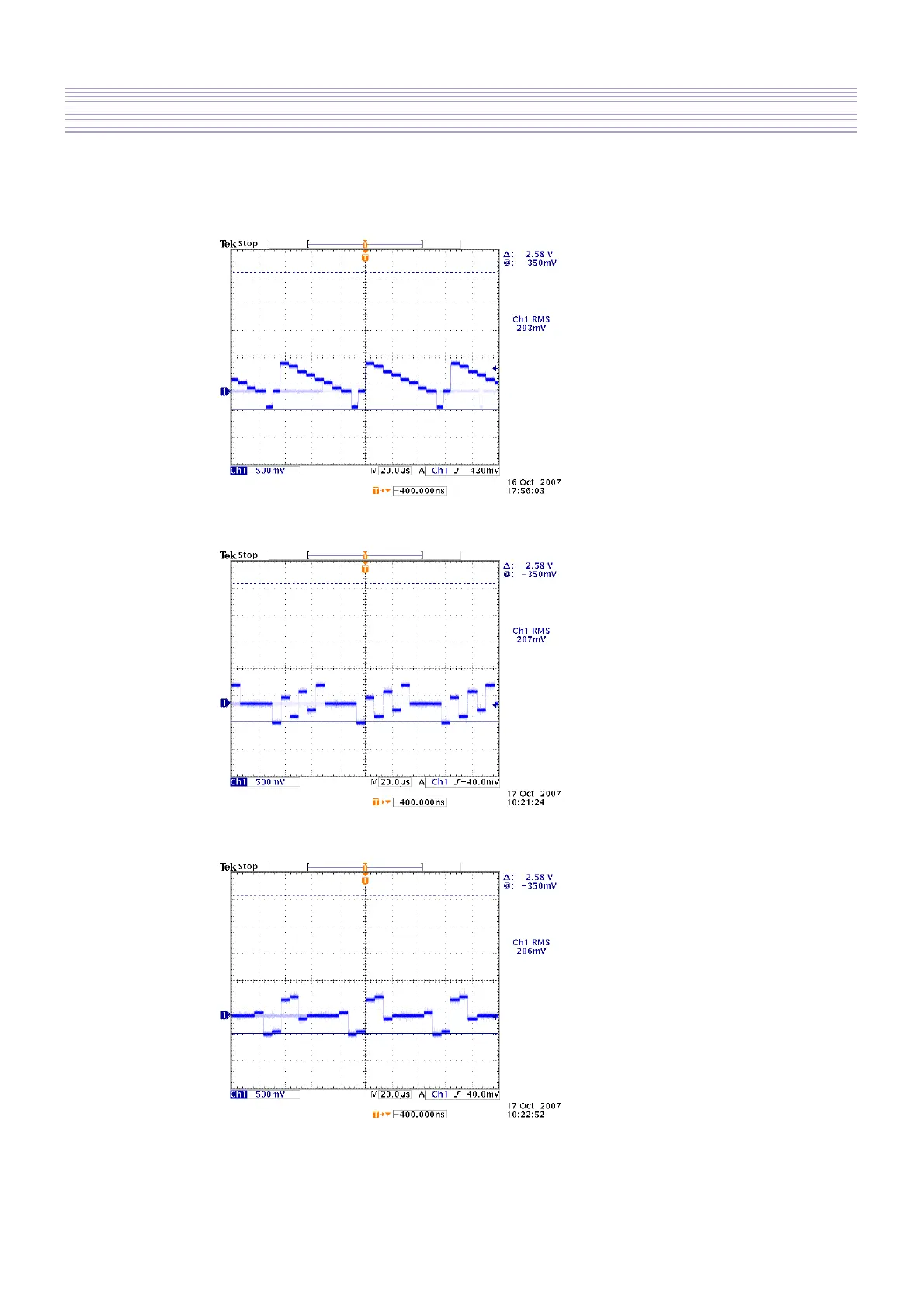

Y signal(input to IC501), LOC : LCA08
Pb signal(input to IC501), LOC : LCA06
Pr signal(input to IC501), LOC : LCA04
