-8-

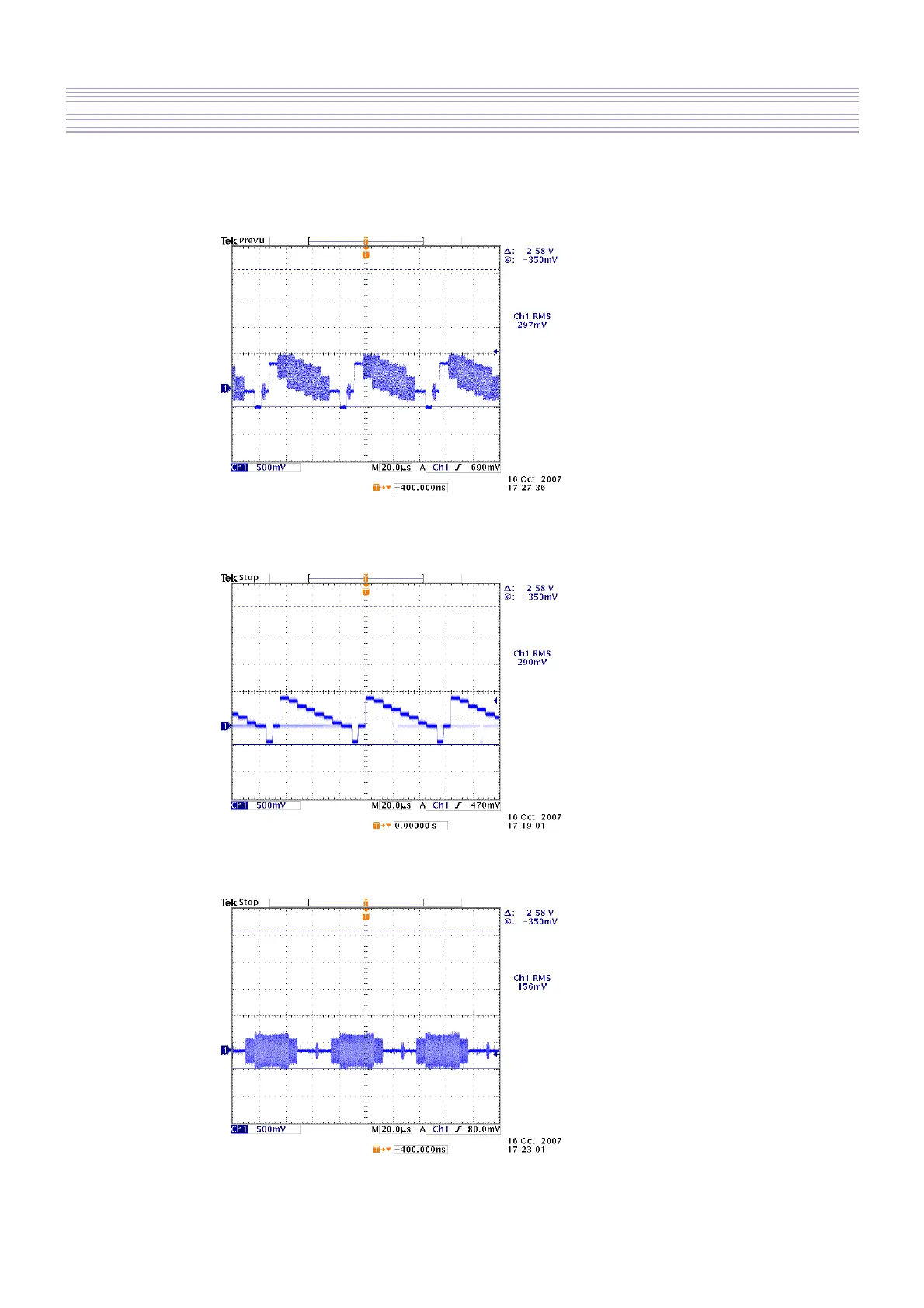

Description of Each Block
4-1-1. AV1 _CVBS
CVBS signal(input to IC501), LOC : RC508
4-1-2. AV2_S-VIDEO
Y signal(input to IC501), LOC : RCA31
Color signal(input to IC501), LOC : RCA30
