6-5. CORD REEL ASSEMBLY
1) MODEL RC-320F (3629507000)
NO PART NAME PART CODE SPECS. Q'YT
1 BOBBIN 3629200600 PP 1
2 HOLDER TERMINAL 4565A36020 PC (V-0) 1
3 TERMINAL 4565A36034 C2600P-1/2H T=0.3 1
4 TERMINAL 4565A36024 C2600P-1/2H T=0.3 1
5 CORD POWER 3621300700 250V16A, H05H2F,5m 1
6 SCREW TAPPING 7121301411 T2S PAN 3X14 MFZN 1
7 SPRING AS 3625102005
SUS30-EH+Cover,3800mm
1
8 SCREW TAPPING 7121300811 T2S PAN 3X8 MFZN 2
9 BRACKET CR 3620602300 PP 1
10 TERMINAL Y AS 3628712000 ASSY 2
11 TERMINAL Y AS 3628712100 ASSY 2
12 SCREW TAPPING 7121400811 T2S PAN 4X8 MFZN 2
13 SHAFT CR 3624900510 PC LEXAN 500 1
14 SCREW TAPPING 7121401211 T2S PAN 4X12 MFZN 1
15 LEVER CR 3623702500 ABS 1
16 STOPPER ASSY 3625200200 ASSY 1
17 SPRING 3625107400 HSW3 1

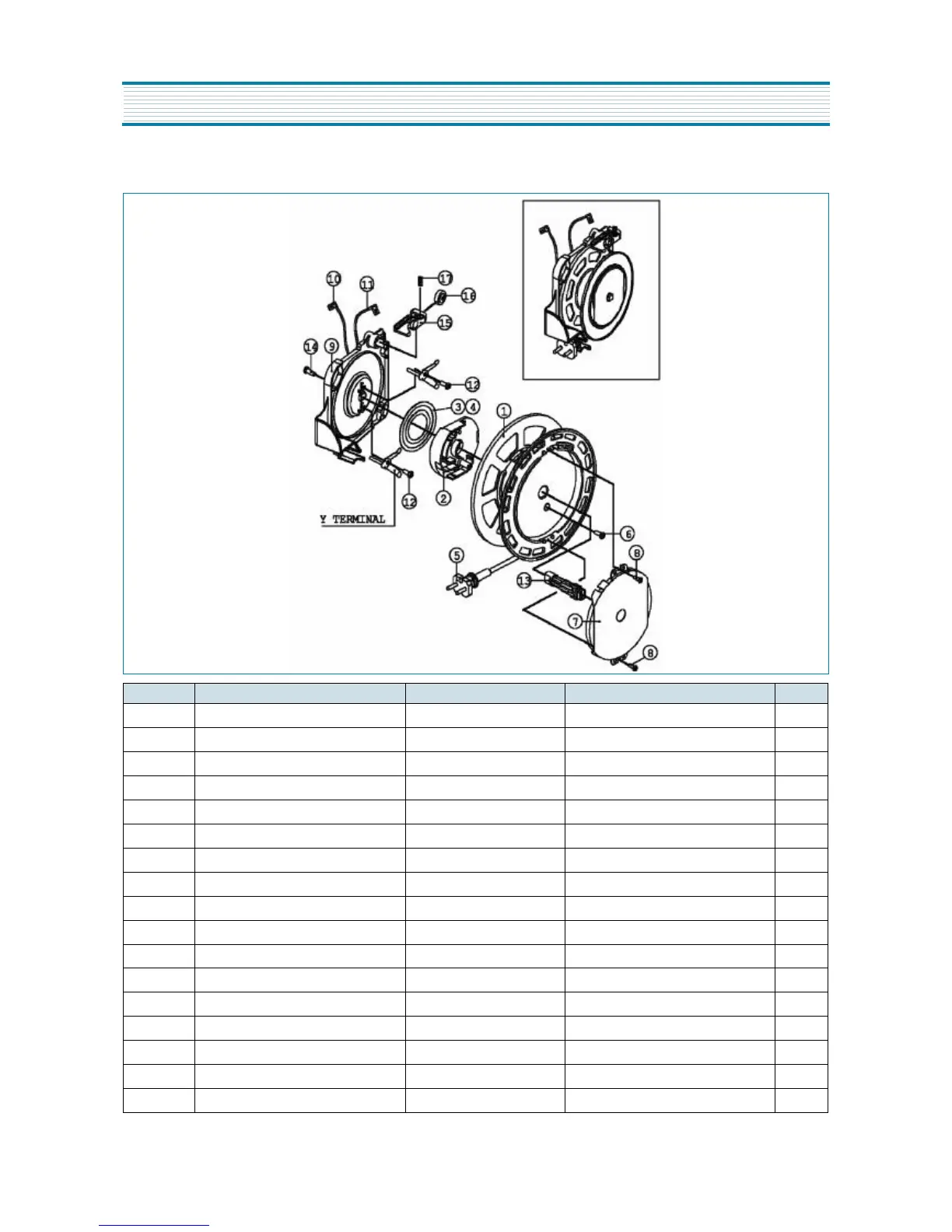

EXPLODED VIEW AND PARTS LIST
