Daewoo RCC-250F - Motor Assembly

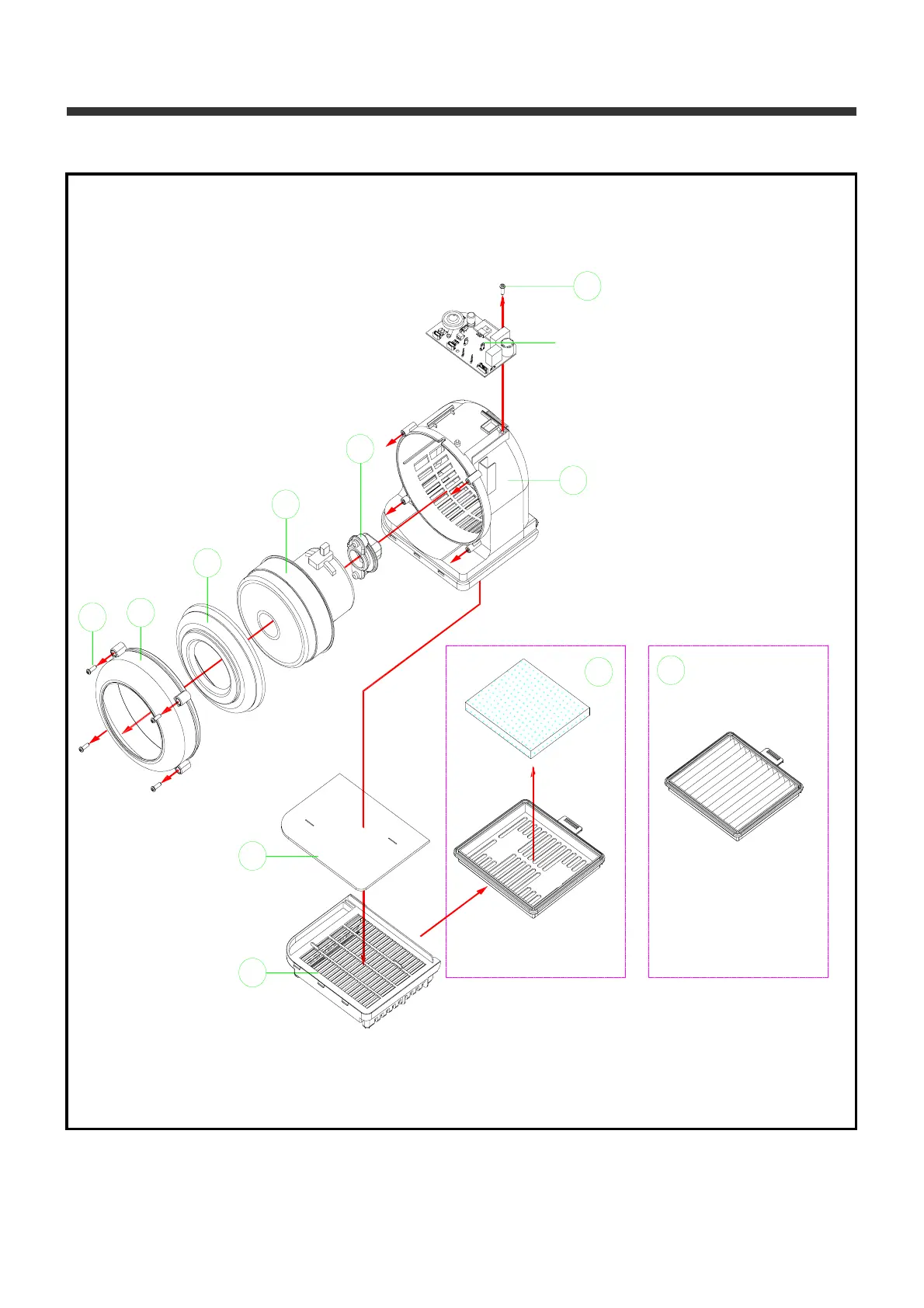

5-2. Motor Assembly
1) Draw FILTER EXHAUST (#8-9 or #10) in back side of MOTOR AS
2) Unscrew a SCREW (#8) then remove PCB
3) Unscrew 4 SCREWs (#8), Check MOTOR(#1) - whether the motor is burnt out or not.
4) When assembling, insert the leads into the slit.
9-1
9-2
2
3
5
9
10
1
8
4
7
PCB
8
RCC-250F RCC-250S
RCC-250B
6
12
