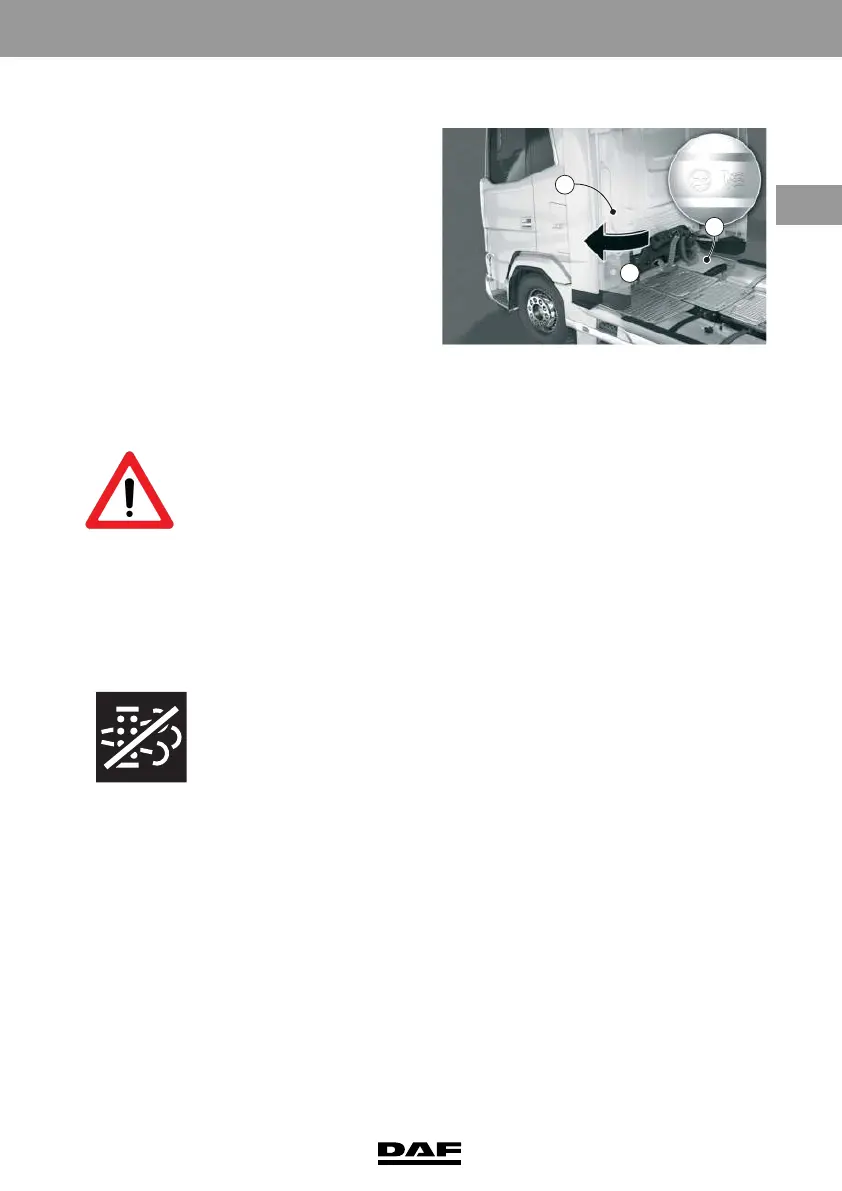

3.1.6 Regeneration unit
1 To open: Pull out the fender
(metal bracket). See the sec-
tion 'Opening the grille' in the
chapter releasing a trapped
driver.
2 Exhaust high temperature
warnings.
3 To get on and off the catwalk
use the grab handle.
During regeneration, the exhaust gases, surroundings of the regeneration
unit and the catwalk can reach high temperatures that can potentially harm
bystanders or the surrounding area.
WARNING!
During regeneration, there is a risk of fire or another hazardous
situation due to the high temperatures that are reached in the fol-
lowing areas:
– Exhaust gases.
– Surroundings of the regeneration unit.
– Catwalk.
Inhibit the regeneration
Press the Diesel Particulate Filter (DPF) switch to stop or
inhibit the regeneration.
A red indicator light in the switch indicates that the regenera-
tion is stopped or inhibited.
19
Securing the vehicle
