Dahua Technology ASC1202B-S User Manual

8
Port
No.
Cabling Port
Note
alarm and etc.
Cabling ports of “Lock Control Output” are as follows:
Port
No.
Cabling Port
Note
Lock Control
Output
11
12V
Lock power supply
12
GND
13
NO1
Door lock off when outage
(door 1)
14
COM1
Lock power 12V input (door
1)
15
NC1
Door unlock on when outage
(door 1)
16
NO2
Door lock on when outage
(door 2)
17
COM2
Lock power 12V input (door
2)
18
NC2
Door unlock on when outage
(door 2)
Cabling ports of “Alarm Output” are as follows:
Port
No.
Cabling Port
Note
Output
Control
19
OUT1+
No. 1 alarm output
20
OUT1-
21
OUT2+
No. 2 alarm output
22
OUT2-

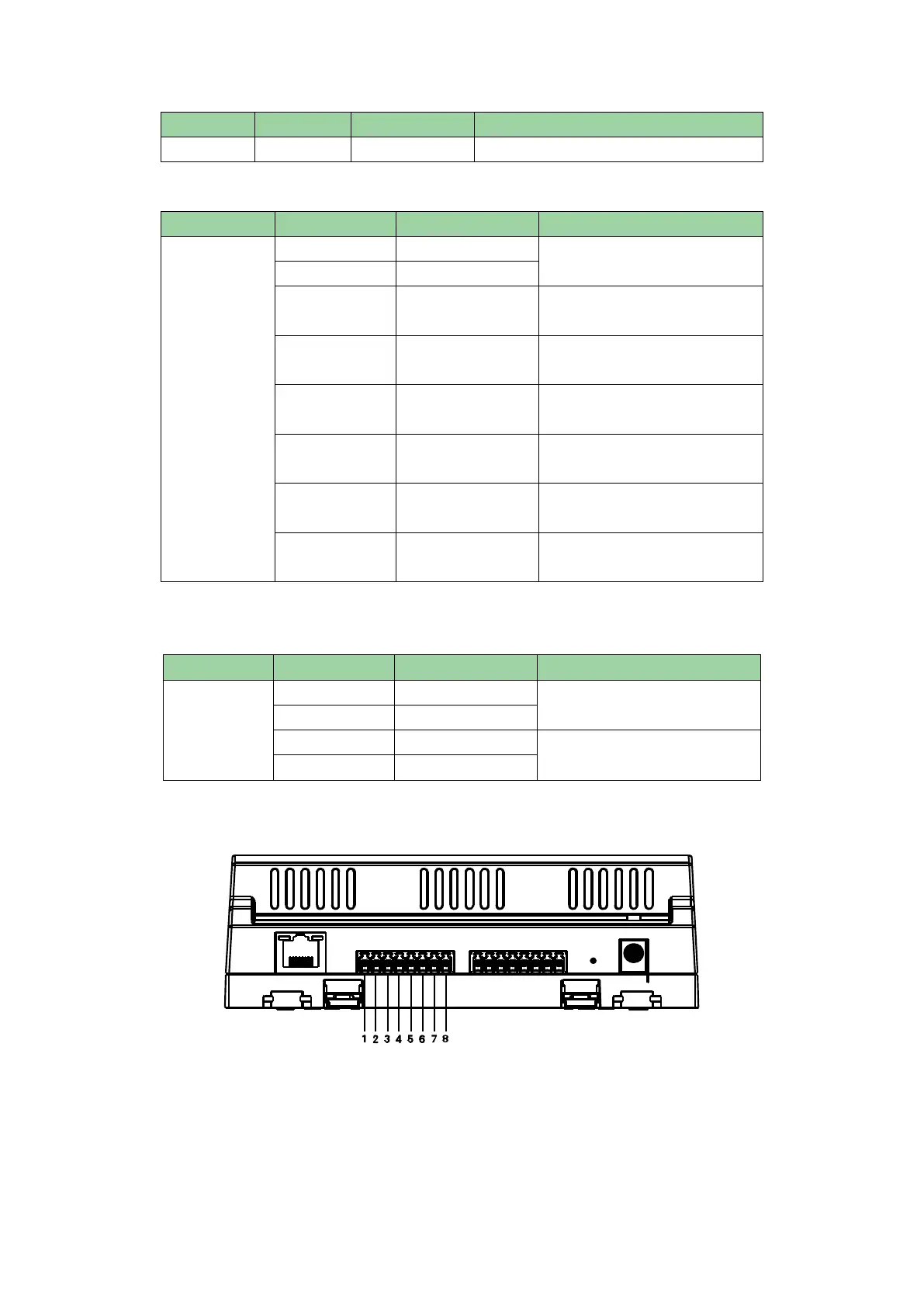

Cabing ports of card reader are shown in Figure 4- 3.
Figure 4- 3
“Door 1 Card Reader” corresponds to ports in the following chart. “Door 2 Card Reader” is
similar to “Door 1 Card Reader”.
