Dahua Technology DH-XVR42 AN-I Series - I;DH-Xvr82 Xxa-4 KL-I

User’s Manual
4
2.2.1 DH-XVR42xxAN-I/DH-XVR42xxAN-I(V2.0)/DH-XVR52xxA-I2/DH-
XVR52xxA-I3/DH-XVR52xxA-4KL-I2/DH-XVR52xxA-4KL-I3/DH-
XVR52xxAN-I2/DH-XVR52xxAN-I3/DH-XVR52xxAN-4KL-I2/DH-
XVR52xxAN-4KL-I3/DH-XVR72xxA-4K-I2/DH-XVR72xxA-4KL-I/DH-
XVR7216AN-4K-I2/DH-XVR82xxA-4K-I/DH-XVR82xxA-4KL-I

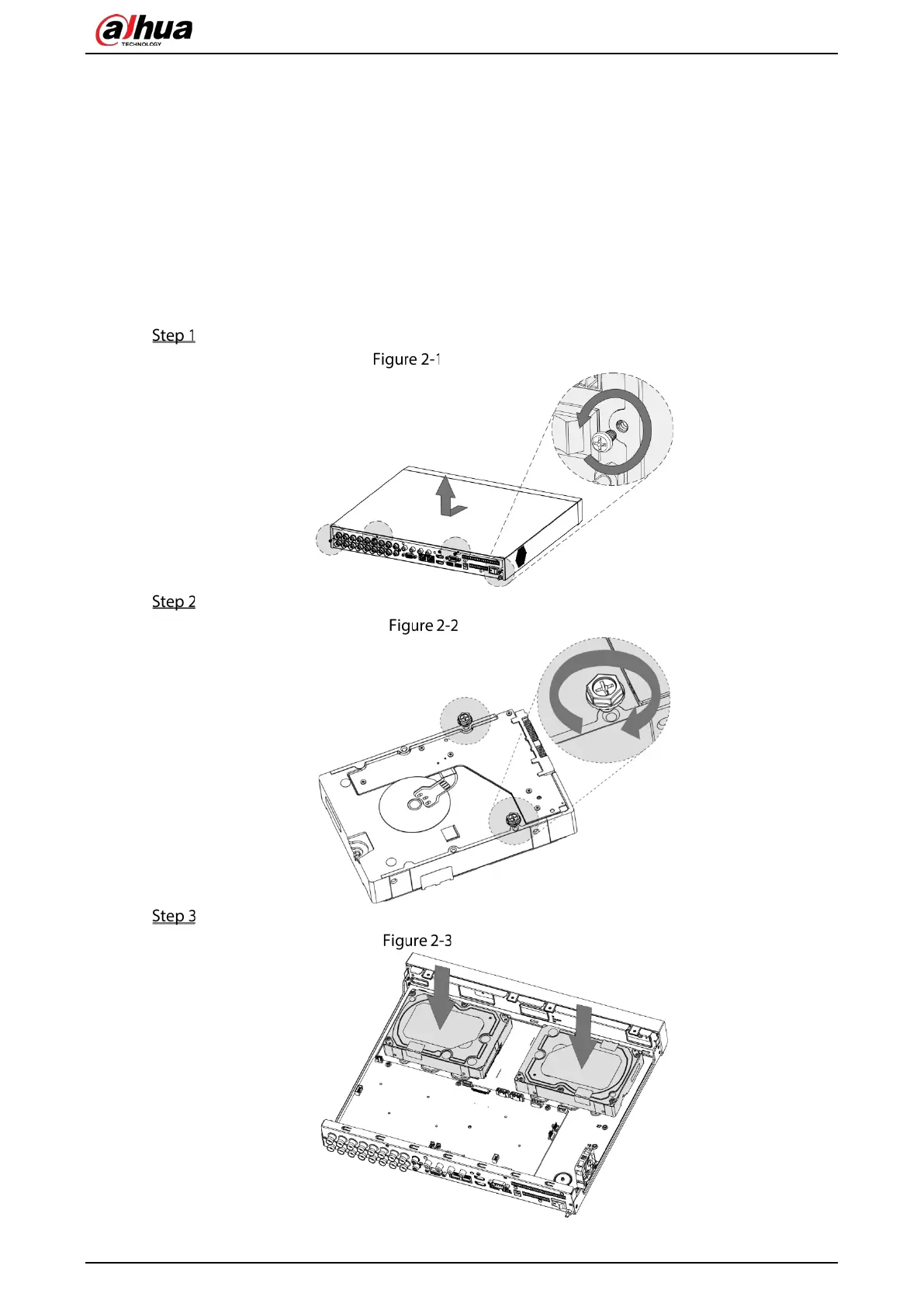

Remove the screws to take off the cover.
Remove screws
Put two screws on the HDD and twist one turn.
Put screws
Align the two screws with the holes on the device.
Align screws
