User's Manual
7
Foundation Construction Requirements

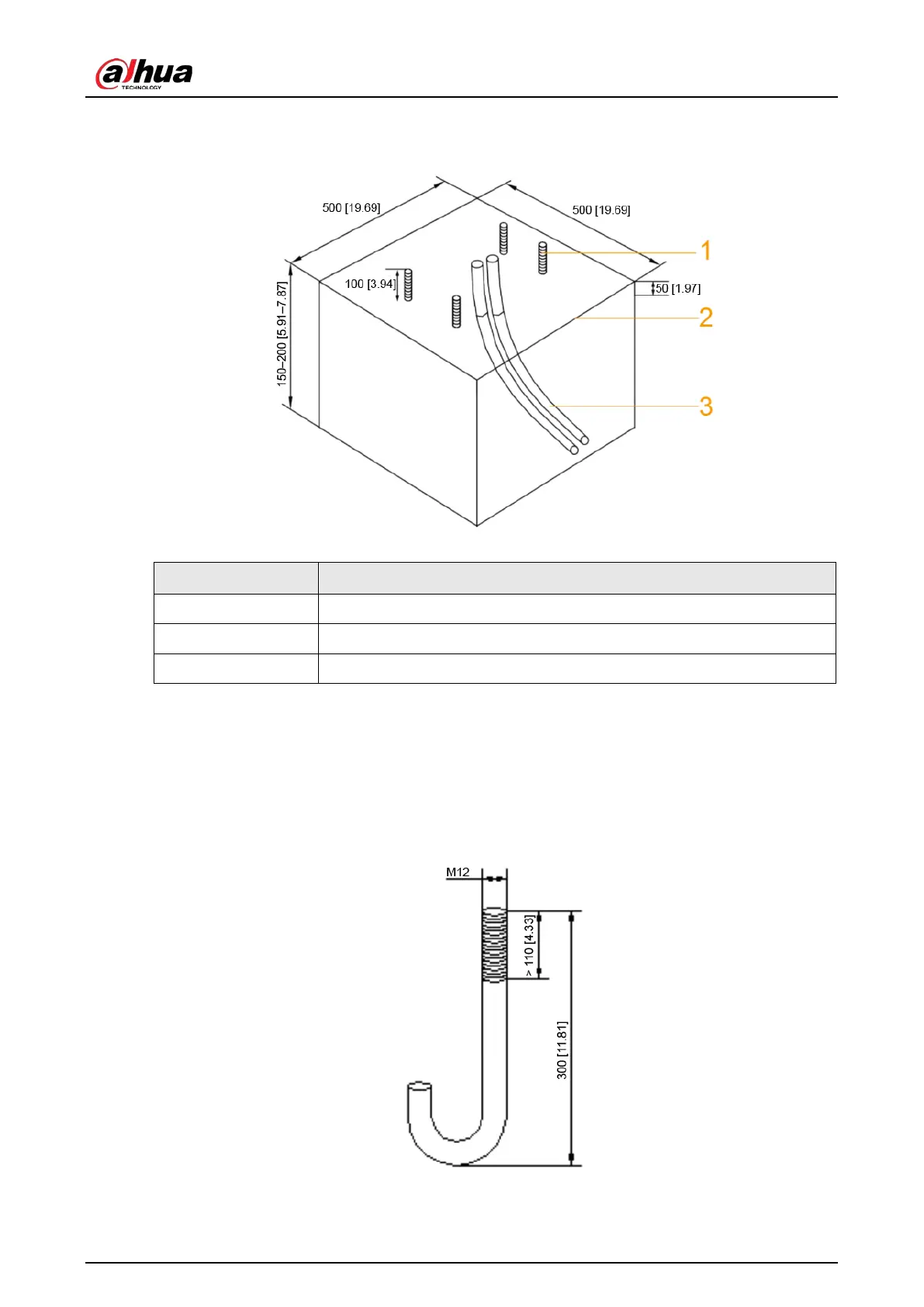

Figure 3-2 Foundation construction requirements (mm [inch])
Table 3-1 Foundation description
No. Name
1 Foundation bolt
2 Foundation surface
3 PVC pipe
Pour concrete to construct a foundation of 500 m 500 mm (19.69' 19.69'') (L × W), and make
sure that the depth is between 150 mm200 mm (5.91''7.87''). Depths that do not fall within this
range will greatly influence the accuracy of radar detection.
Use concrete of at least grade C15.
Bury foundation bolts in the foundation. Make sure that the bolts are exposed 100 mm (3.94'')
above the foundation.
Figure 3-3 Foundation bolt (mm [inch])
(Optional) If no foundation bolts are buried, you can use the expansion bolts provided in the
accessories of the Barrier.
