User's Manual
8
After the concrete foundation hardens, drill 4 holes with a diameter of 16 mm (0.63'') to install
the Barrier.
Use M12 expansion bolts. Make sure that the thread length of the expansion bolt is longer
than 80 mm (3.15''), and its total length is more than 150 mm (5.91'').
The drilled holes and the installation position should meet the requirements shown in Figure
3-4 to facilitate installing the metal plates and fixing the Barrier.

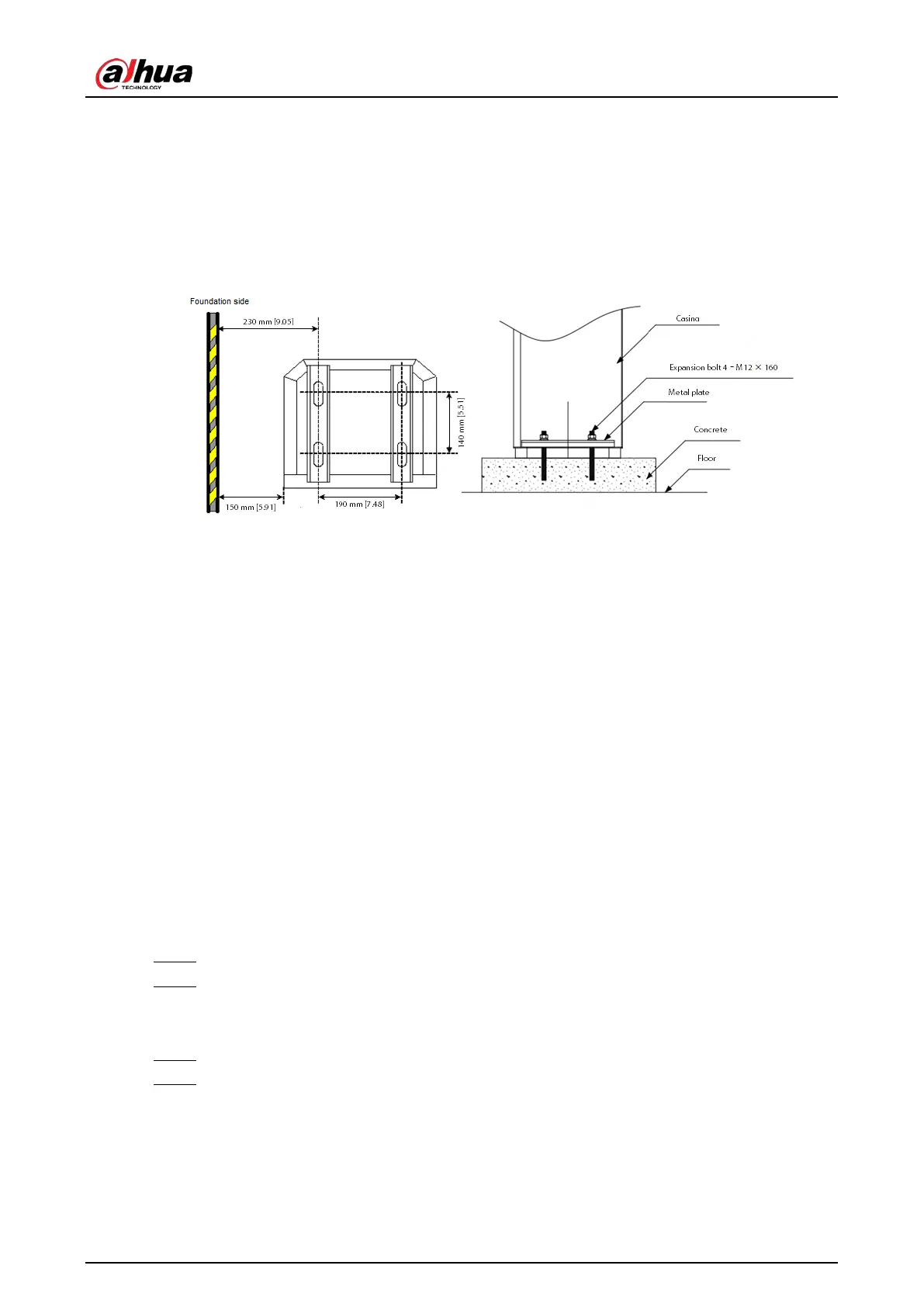

Figure 3-4 Install expansion bolt (top view) (mm [inch])
Thread the power cable and the signal cable separately through two 1-inch PVC pipes (buried in
the foundation) to the cable holes next to the foundation.
After installation, make sure that when opening the Barrier, there are no obstacles within a 90°
vertical range.
3.2 Installing the Barrier
3.2.1 Installing the Casing
Prerequisites
Read the manual carefully before installation. Refer to the barrier drawing attached to the casing
to know how the Barrier works and how to wire it.
Check whether the power cable, signal cable, or internal wiring is loose or disconnected. If yes,
securely connect the cables before installation.
Procedure
Step 1 Unpack the packaging box.
Step 2 Place the casing on the foundation, and set the working direction of the arm vertical to the
vehicle movement direction (we recommend placing a layer of 3mm rubber under the
casing to reduce vibrations).
Step 3 Use the key to open the door, and then place metal plates on the foundation bolts.
Step 4 Adjust the horizontal and vertical positions of the casing, and then tighten the nuts with a
wrench.
