User's Manual
12

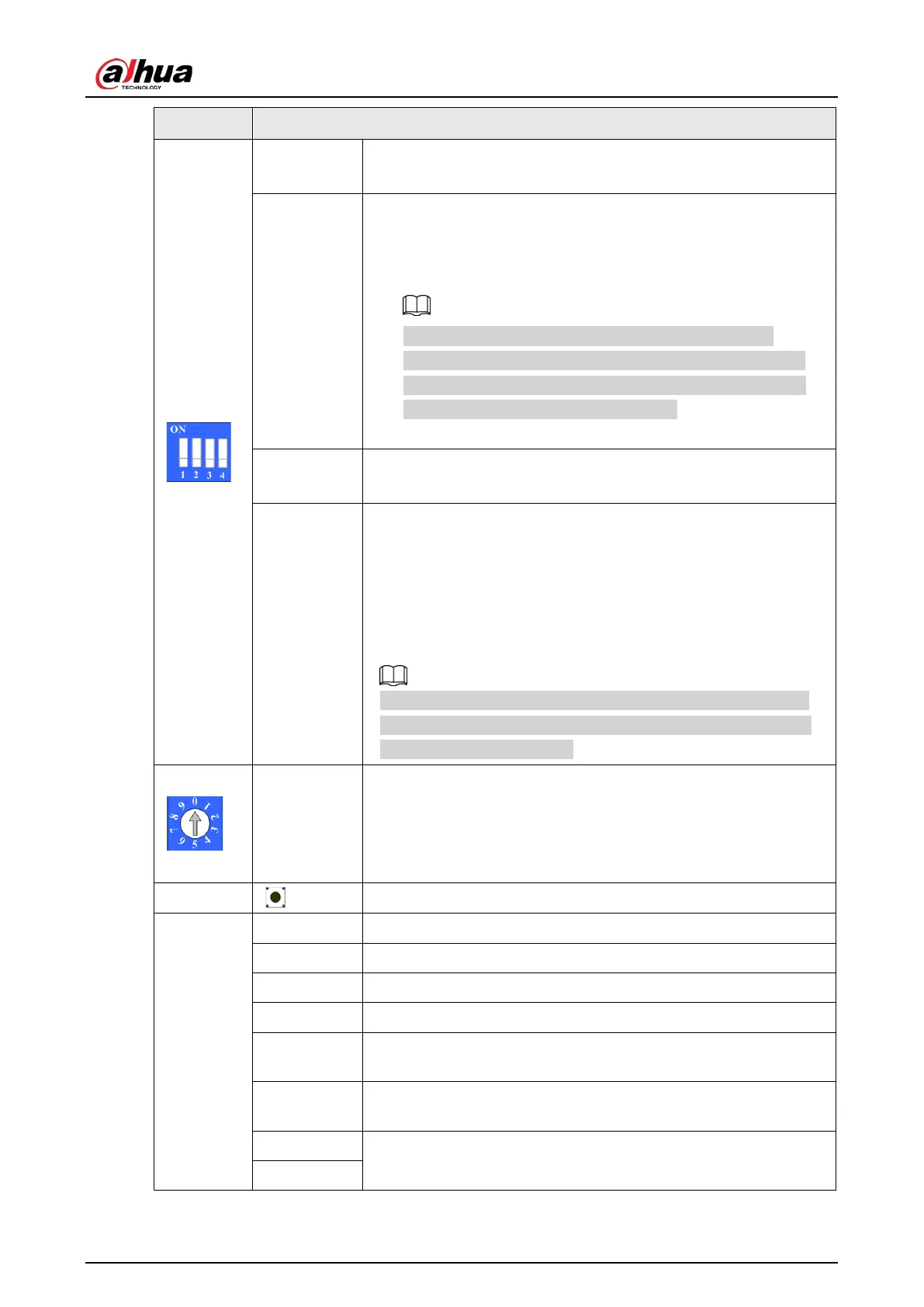

Parameter Description
1
●
ON: Enable automatic arm lifting during power failure.
●
OFF: Disable automatic arm lifting during power failure.
2
Counting mode: Under this mode, when the Barrier is powered on,
and there is no anti-smashing signal triggered, the arm
automatically falls.
●
2 and 3 are ON: Enable counting mode.
When the Barrier receives N signals (N ≤ 5) of opening,
including from camera and remote control, the arm will fall
after receiving N signals of vehicle passing, and the interval
between signals is longer than 1 second.
●
OFF: Disable the counting mode.
3
●
ON: Enable the function of auto-falling when vehicle passing.
●
OFF: Disable the function of auto-falling when vehicle passing.
4
●
ON: The
Always on
point of the anti-smashing vehicle
detector output is connected between the inverter VD port
and +24 V port (VD connects to NO and +24 V to COM).
●
OFF: The
Always off
point of the anti-smashing vehicle
detector output is connected between the inverter VD port
and +24 V port (VD connects to NC and +24 V to COM).
When the vehicle detector detects vehicle passing, the inverter
keeps the arm lifted and lifts the arm that is falling, and the arm
falls after the vehicle passed.
Brake
position
adjustment
DIP (0–9)
●
0: Switch the DIP to 0 after adjusting arm stability.
●
1: Invalid position.
●
2–9: Adjust the brake position of the arm during rising or
falling while adjusting arm stability. The larger the number,
the later the arm starts decelerating.
Buttons
Open and close the Barrier.
Ports
–24 V Ground.
COM Feedback signal common port.
LDUP Barrier open feedback signal.
LDDN Barrier close feedback signal.
BOOM
Auxiliary anti-smashing port, which only triggers anti-smashing. It
does not control automatic close of barrier.
VD
Common anti-smashing port. The barrier automatically closes
after the anti-smashing signal disappears.
GOUP
Ports for controlling open and close of the Barrier.
●
GOUP: Open.
GODN
