7

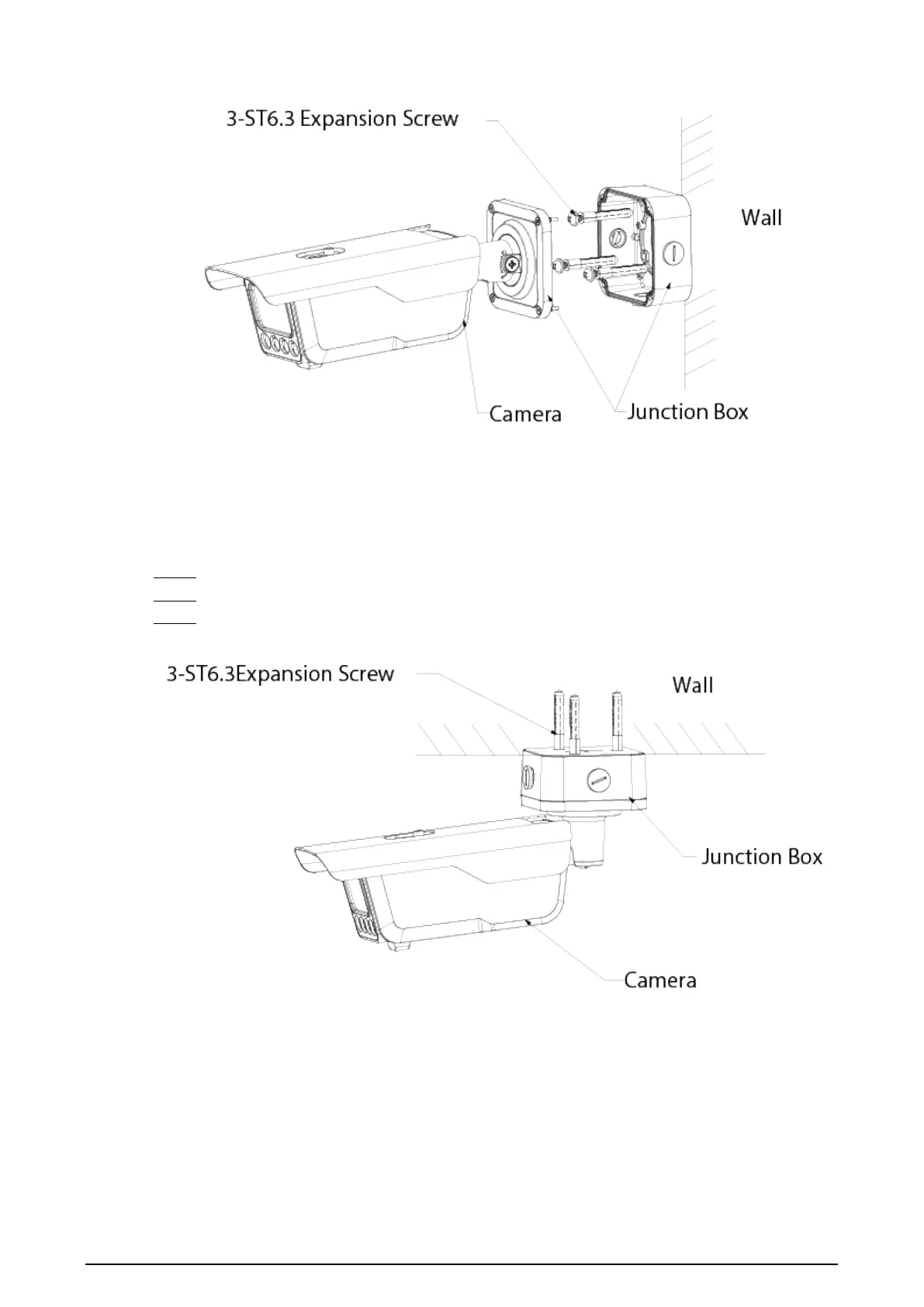

Figure 3-2 Wall mount
3.3 Ceiling Mount
Procedure
Step 1 Drill holes on the ceiling according to the holes on the junction box.
Step 2 Use 3 ST6.3 expansion screws to fix the junction box to the ceiling.
Step 3 Tighten the screws on the end of the camera to fix it to the junction box.
Figure 3-3 Ceiling mount
