Quick Start Guide
3

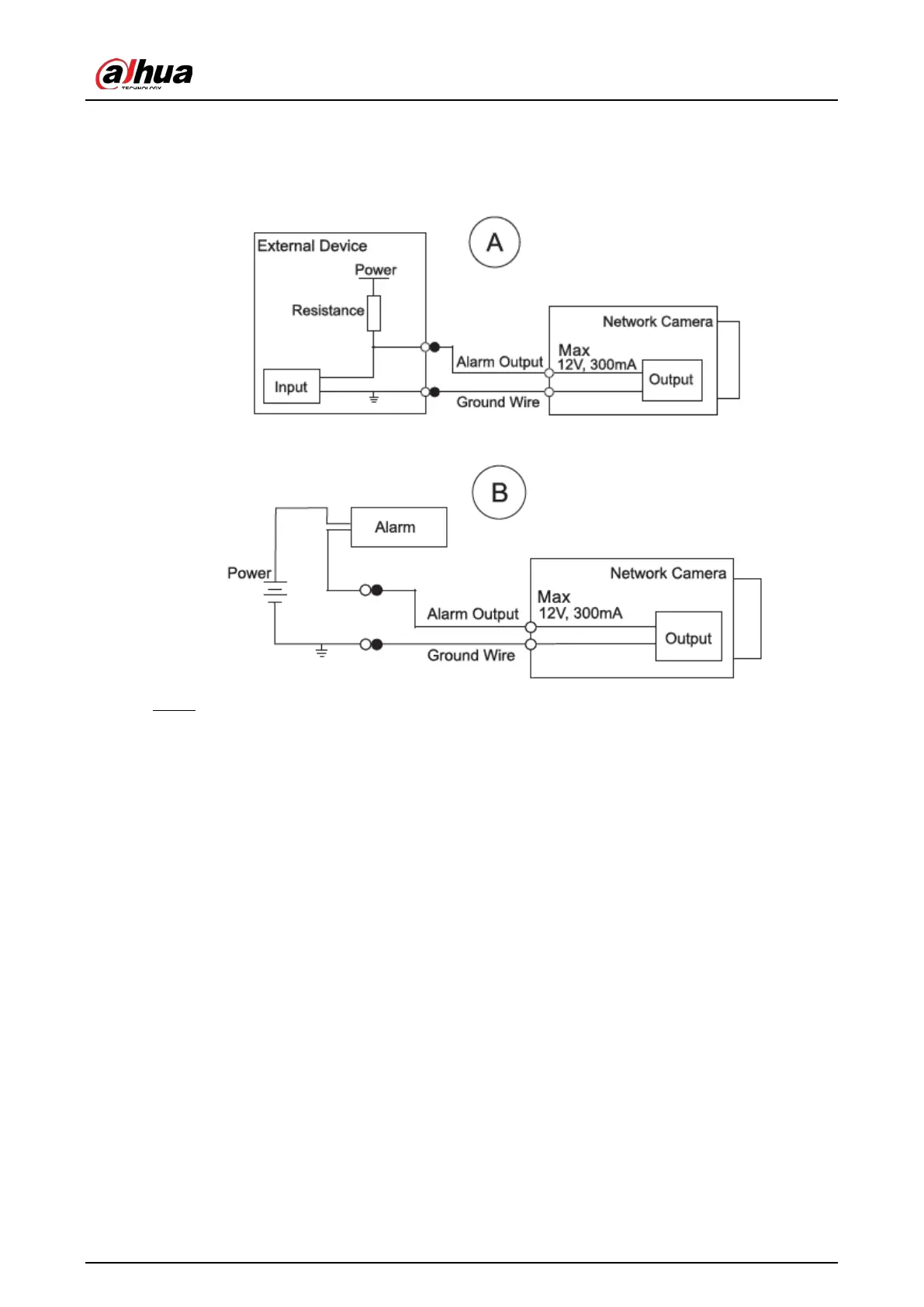

Mode B: Switch application. Alarm output is used to drive external circuit, the
maximum voltage is 12V and the maximum current is 300mA. If the voltage is higher
than 12V, please use an additional electric relay.
Mode A Figure 1-3
Mode B Figure 1-4
Log in web interface, and configure alarm input and alarm output in alarm setting. Step 3
The alarm input in the web interface is corresponding to the alarm input end of the I/O
port. There will be high level and low level alarm signal generated by the alarm input
device when alarm occurs, set the input mode to "NO" (default) if the alarm input signal
is logic "0" and to "NC" if the alarm input signal is logic "1".
The alarm output in the web interface is corresponding to the alarm output end of the
device, which is also alarm output end of the I/O port.
