Dahua Technology IPC-HDW5231R-Z User Manual

2
Port Name
SN
Name
Note
I/O Port
1
ALARM_NO
Alarm output port. It is to output the alarm signal to the
alarm device.
NO: normal open alarm output port.
It must be used with ALARM_COM.
2
ALARM_COM
Alarm output public port.
3
ALARM_IN1
Alarm input port 1. It is to receive the on-off signal from
the external alarm source.
4
ALARM_IN2
Alarm input port 2. It is to receive the on-off signal from
the external alarm source.
5
GND
Ground port
1.2 Framework and Dimension
Note:
The following figure is for reference only, which is used to know the device dimension.

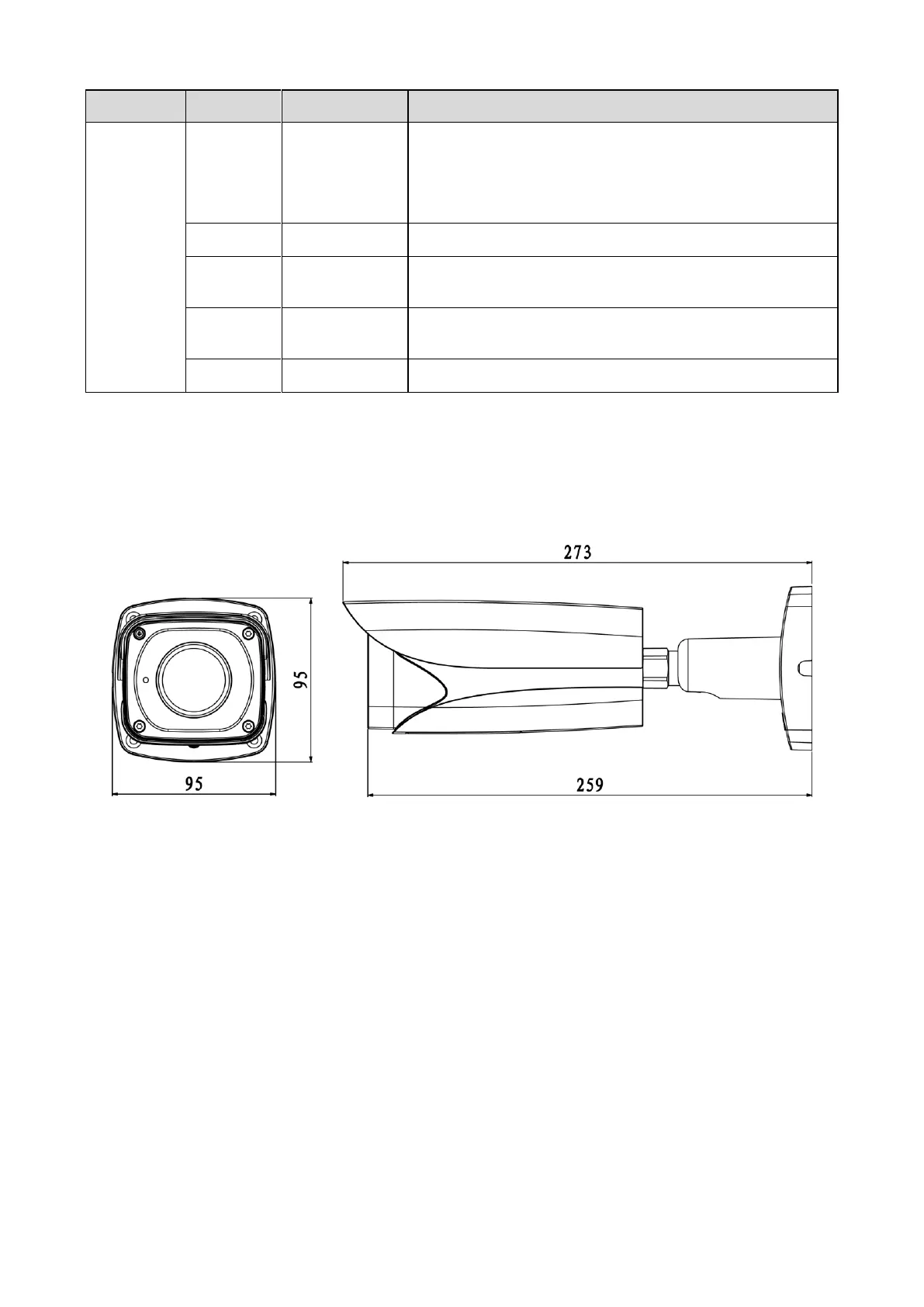

Please refer to the following figure for dimension information. The unit is mm. See Figure 1- 2.
Figure 1-2
1.3 Alarm Setup
Note:
It is only supported by some series products.

Dahua Technology IPC-HDW5231R-Z Specifications

General

Brand	Dahua Technology
Model	IPC-HDW5231R-Z
Category	Security Camera
Language	English
