Dahua Technology IPC-HFW1320S-W User Manual

10

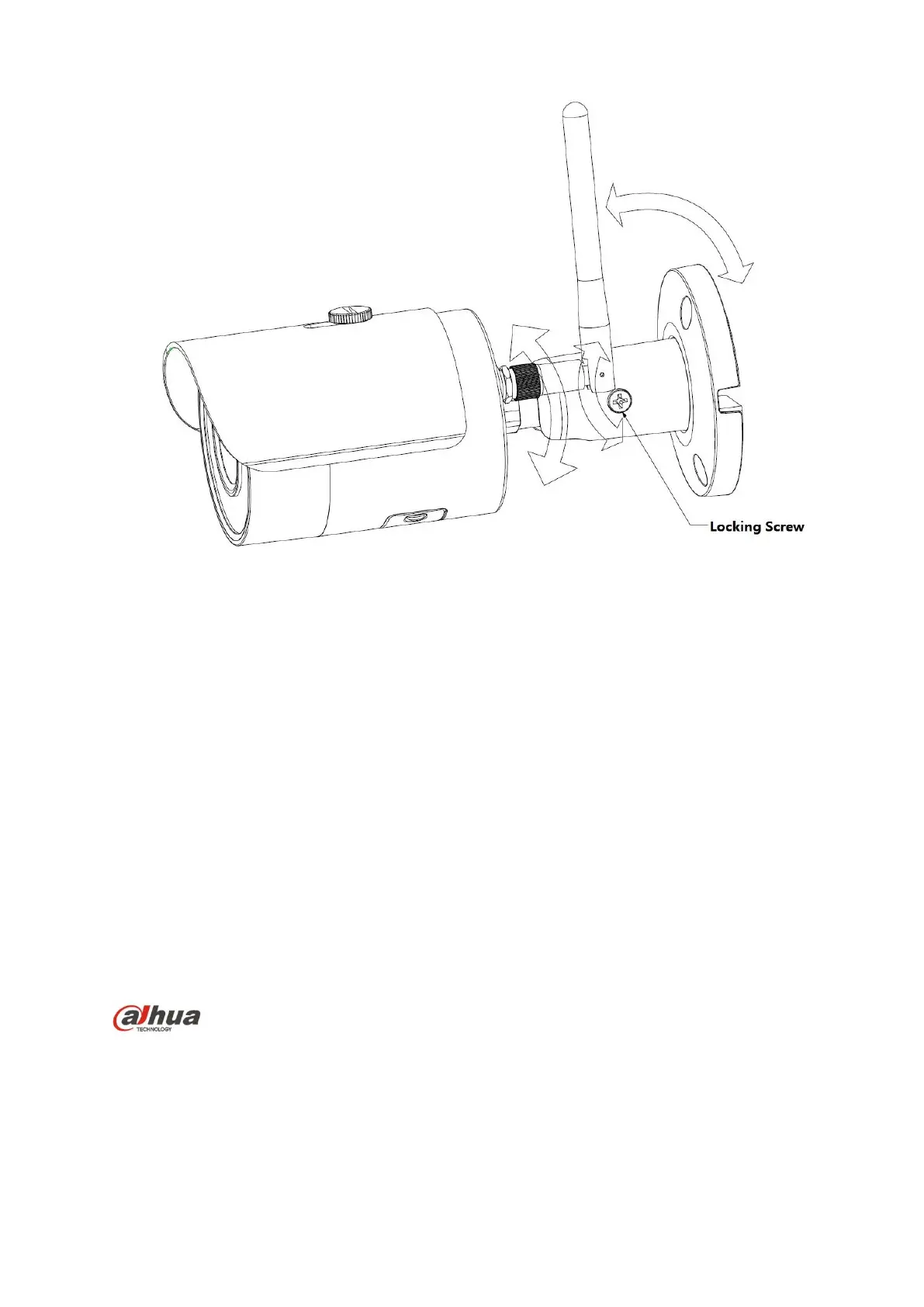

Figure 4-2
Step 5
Use cross screwdriver (in accessories bag) to loosen adjusting screw.
Step 6
Adjust the device in all possible directions, and set its monitoring direction according to the
requirements.
Step 7
Use cross screwdriver to tighten the adjusting screws.
Note:
 This quick start guide is for reference only. Slight difference may be found in user interface.
 All the designs and software here are subject to change without prior written notice.
 All trademarks and registered trademarks mentioned are the properties of their respective
owners.
 If there is any uncertainty or controversy, please refer to the final explanation of us.
 Please visit our website or contact your local service engineer for more information.
Zhejiang Dahua Vision Technology Co., Ltd
Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC.
Postcode: 310053
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
Website: www.dahuasecurity.com

Dahua Technology IPC-HFW1320S-W Specifications

General

Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Housing material	Metal, Plastic
International Protection (IP) code	IP67
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	12
Power over Ethernet (PoE)	No
Power consumption (typical)	4.4 W
Type	IP security camera
Certification	CE (EN 60950:2000), UL:UL60950-1, FCC 15 B
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	50 m
Mobile operating systems supported	Android, iOS
ROM capacity	16 MB
Internal memory	256 MB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Number of users	20 user(s)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Streaming method	Multicast, Unicast
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;ICMP;IGMP
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Total megapixels	3 MP
Gain control type	Auto/Manual
Maximum resolution	2304 x 1296 pixels
Supported video modes	720p, 1080p
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296
Digital zoom	16 x
Fixed focal length	2.8 mm
Maximum aperture number	2
Pan range	0 - 360 °
White balance	Auto, Lamp, Manual, Natural, Outdoor
Tilt angle range	0 - 90 °
Angle of rotation	360 °
Minimum illumination	0 lx
LED type	IR
Night vision distance	30 m
Number of illumination LEDs	24
Sensor type	CMOS
Optical sensor size	1/3 \
Number of cameras	1
Interface	RJ-45/WLAN

Weight and Dimensions

Length	164.7 mm
Weight	430 g
Diameter	70 mm
Package weight	520 g
