4 Device Installation
Important
Before the installation, please make sure the installation environment can at least support 3x weight of
the camera.

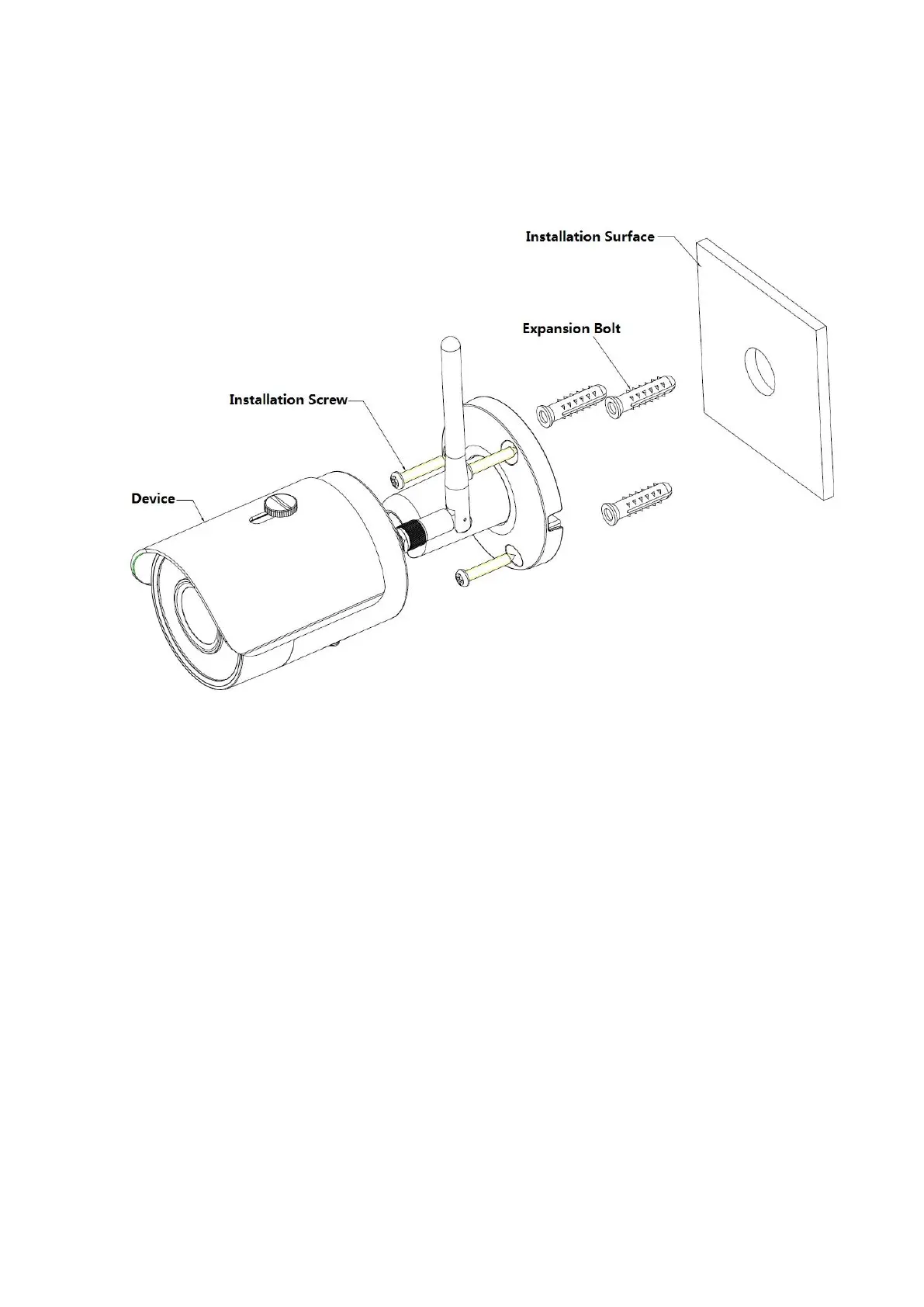

Figure 4-1
Please see Figure 4-1 and Figure 4-2.
Step 1
Dig holes on the installation surface (wall or ceiling).
Step 2
Open accessories bag, take out expansion bolt and insert it into the hole you just dug.
Step 3
Open accessories bag, take out installation screws. Tighten the screws to fix the device on the
installation surface (wall or ceiling). You can move device sunshade back and forth. When you have
fixed the device, you must tighten screws on sunshade.
Step 4
Plug external wiring of the device properly.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology IPC-HFW1320S-W and is the answer not in the manual?

Dahua Technology IPC-HFW1320S-W Specifications

General IconGeneral
Form factorBullet
Mounting typeCeiling/wall
Product colorWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95 %
DC output voltage12
Power over Ethernet (PoE)No
Power consumption (typical)4.4 W
TypeIP security camera
CertificationCE (EN 60950:2000), UL:UL60950-1, FCC 15 B
Day/night modeYes
Placement supportedOutdoor
Connectivity technologyWired & Wireless
Maximum operating distance50 m
Mobile operating systems supportedAndroid, iOS
ROM capacity16 MB
Internal memory256 MB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Number of users20 user(s)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Streaming methodMulticast, Unicast
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.1x
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;ICMP;IGMP
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Total megapixels3 MP
Gain control typeAuto/Manual
Maximum resolution2304 x 1296 pixels
Supported video modes720p, 1080p
Video compression formatsH.264, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296
Digital zoom16 x
Fixed focal length2.8 mm
Maximum aperture number2
Pan range0 - 360 °
White balanceAuto, Lamp, Manual, Natural, Outdoor
Tilt angle range0 - 90 °
Angle of rotation360 °
Minimum illumination0 lx
LED typeIR
Night vision distance30 m
Number of illumination LEDs24
Sensor typeCMOS
Optical sensor size1/3 \
Number of cameras1
InterfaceRJ-45/WLAN
Weight and Dimensions IconWeight and Dimensions
Length164.7 mm
Weight430 g
Diameter70 mm
Package weight520 g
