Dahua DSS4004-S2 Application Deployment Manual

Checklist 2

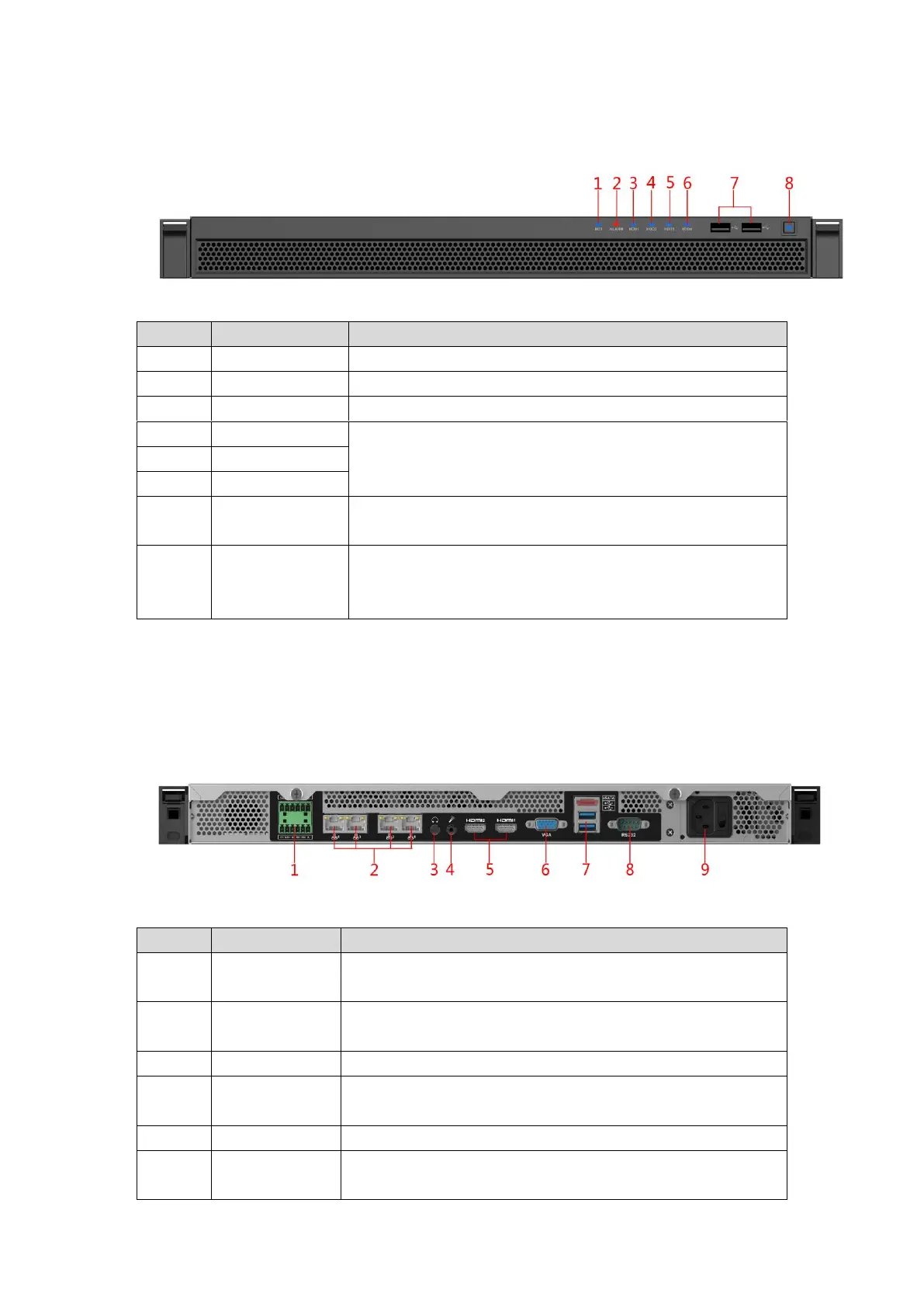

1.2.1 Front Panel
Figure 1-1
Chart 1-1
No.
Port or Tag
Definition
1
Network Light
Blue light flash during connection
2
Alarm Light
Blue light flash when alarm occurs (i.e. no HDD)
3
HDD1
System disk light flash when reading disk
4
HDD2
HDD light, normally ON after HDD is inserted
5
HDD3
6
HDD4
7
USB2.0 Port
2，white
8
Power Button
Press the button to boot device. Self-carried power status
light （blue light is normally ON）； long press to shut down.
1.2.2 Rear Panel
Figure 1-2
Chart 1-2
No.
Port or Tag
Definition
1
Alarm Output,
Input
Reserved, support RS485 protocol input
2
Ethernet Port
Support 10Mbps/100Mbps/1Gbps self-adaptive dual full
duplex, platform default Ethernet port 1
3
Audio Output
3.5mm audio input
4
Video Intercom
Input.
3.5mm audio input
5
HDMI Port
2-ch, reserved
6
VGA Port
DB15-pin，support VGA port device input

Dahua DSS4004-S2 Specifications

General

Brand	Dahua
Model	DSS4004-S2
Category	Server
Language	English
