Dahua IPC-EW5541-AS User Manual

Quick Start Guide
1
1 Introduction
General 1.1
This series of digital video cameras use internet protocol, and they can send and receive audio
and video data through network independently. They are equipped with fisheye lens and
advanced algorithm of fisheye image rectification; they support surveillance with no dead zone
and panorama image output with multiple image screens, and every screen supports virtual
PTZ
Device Ports 1.2
 Cable type might vary with different models, and the actual product shall prevail.
 Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit
and water damage. For the detailed operations, see the FAQ Manual.
Cable list

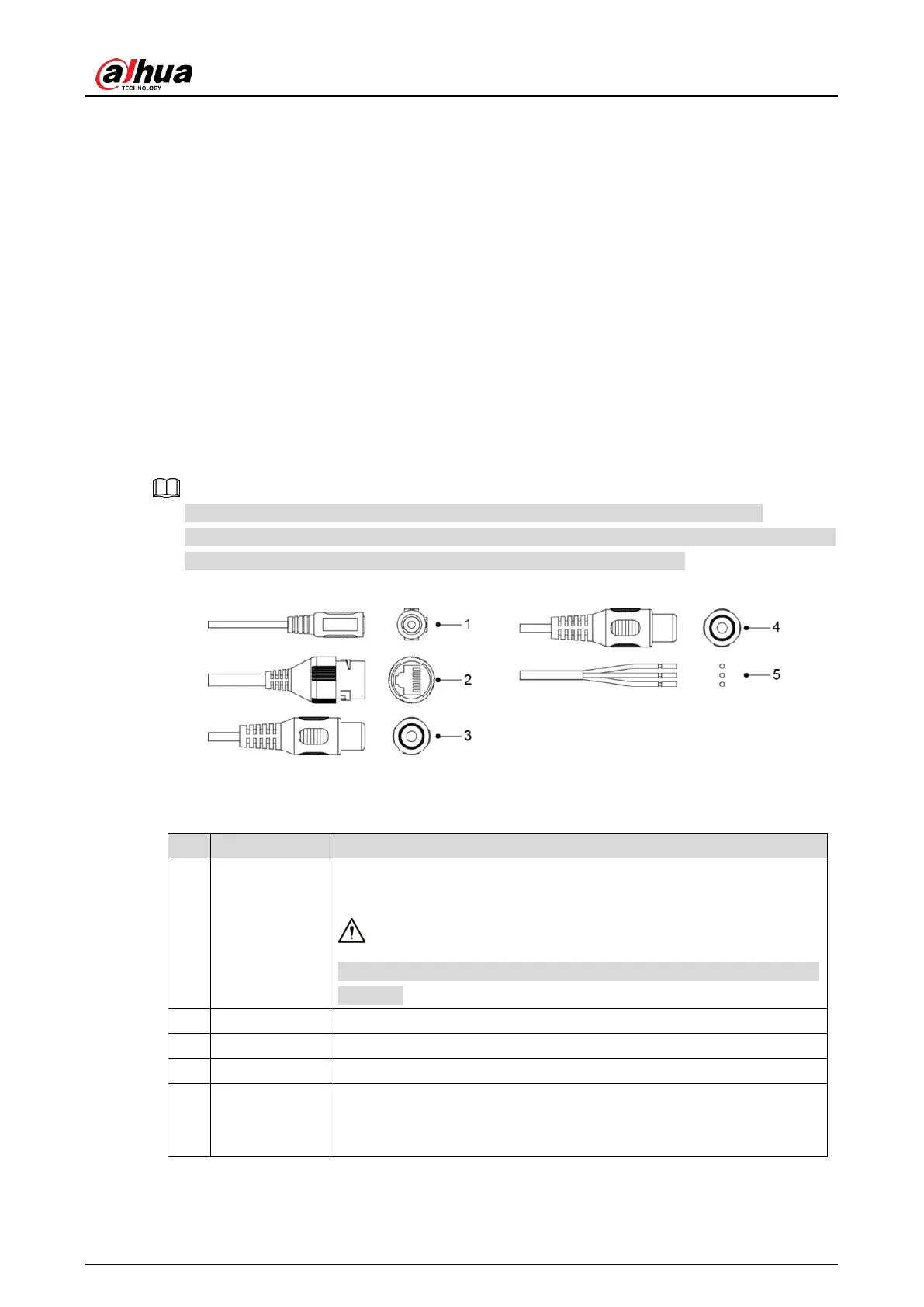

Figure 1-1
For more information about cable ports, see Table 1-1and Table 1-2.
Table 1-1 Cable information
No.
Port Name
Function
1
12V DC
power input
Inputs 12V DC power. Be sure to supply power as instructed in the
manual.
Device abnormity or damage could occur if power is not supplied
correctly.
2
Audio output
Connects to speaker to output audio signal.
3
Audio input
Connects to sound pickups to receive audio signal.
4
Ethernet port
Connects to network with network cable.
5
Alarm I/O
Includes alarm signal input and output ports, and the number of I/O
ports might vary on different devices. For detailed information, see
Table 1-2
