Dahua HD IR Vari-focal Bullet Network Camera Quick Start Guide

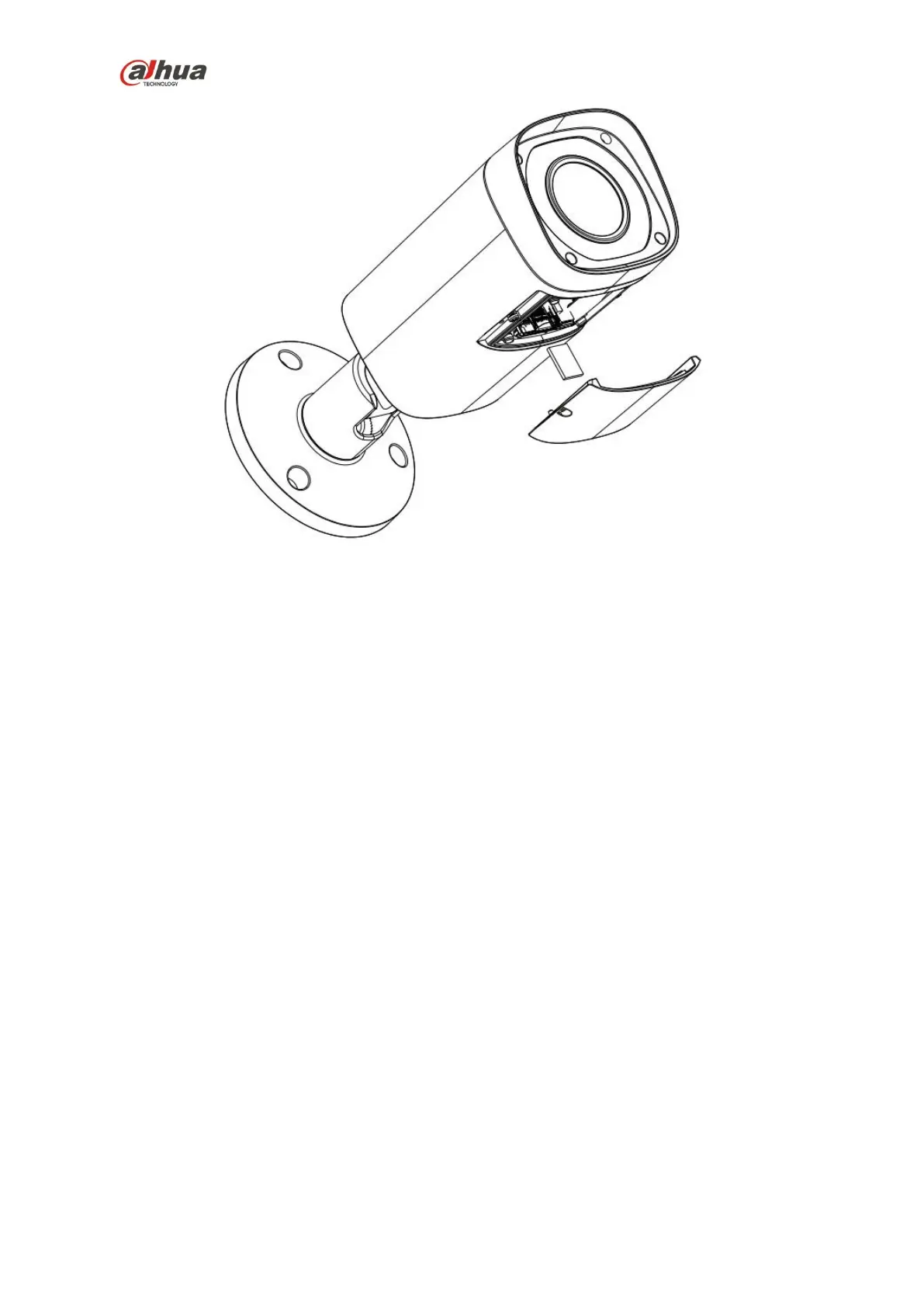

Figure 2-2
Step 2
Fix the device on the installation surface.
1. Take out the installation position map from the accessories bag, paste it on the installation
surface (wall or ceiling) and dig holes according to the hole sites marked on the installation
position map.
2. Take out the expansion bolts from the accessories bag and insert them into the holes you
just dug.
3. Take out the self-tapping screws from the accessories bag, aim the installation holes of the
device bracket chassis at the expansion bolt and use the self-tapping screws to fix the device
on the installation surface (wall or ceiling).
Step 3
Plug the external cable of the device well according to the requirement.
Step 4
Adjust device angle.
