Dahua IPC-KW12W - Device Installation

HD Cube Network Camera User’s Manual
10
Alarm output: Alarm output is OC door, requiring increase of external pull-up resistor. Output signal is
high and low levels. After pull-up resistor is increased, output signal is high level by default. When
there is alarm output, output signal becomes low level.

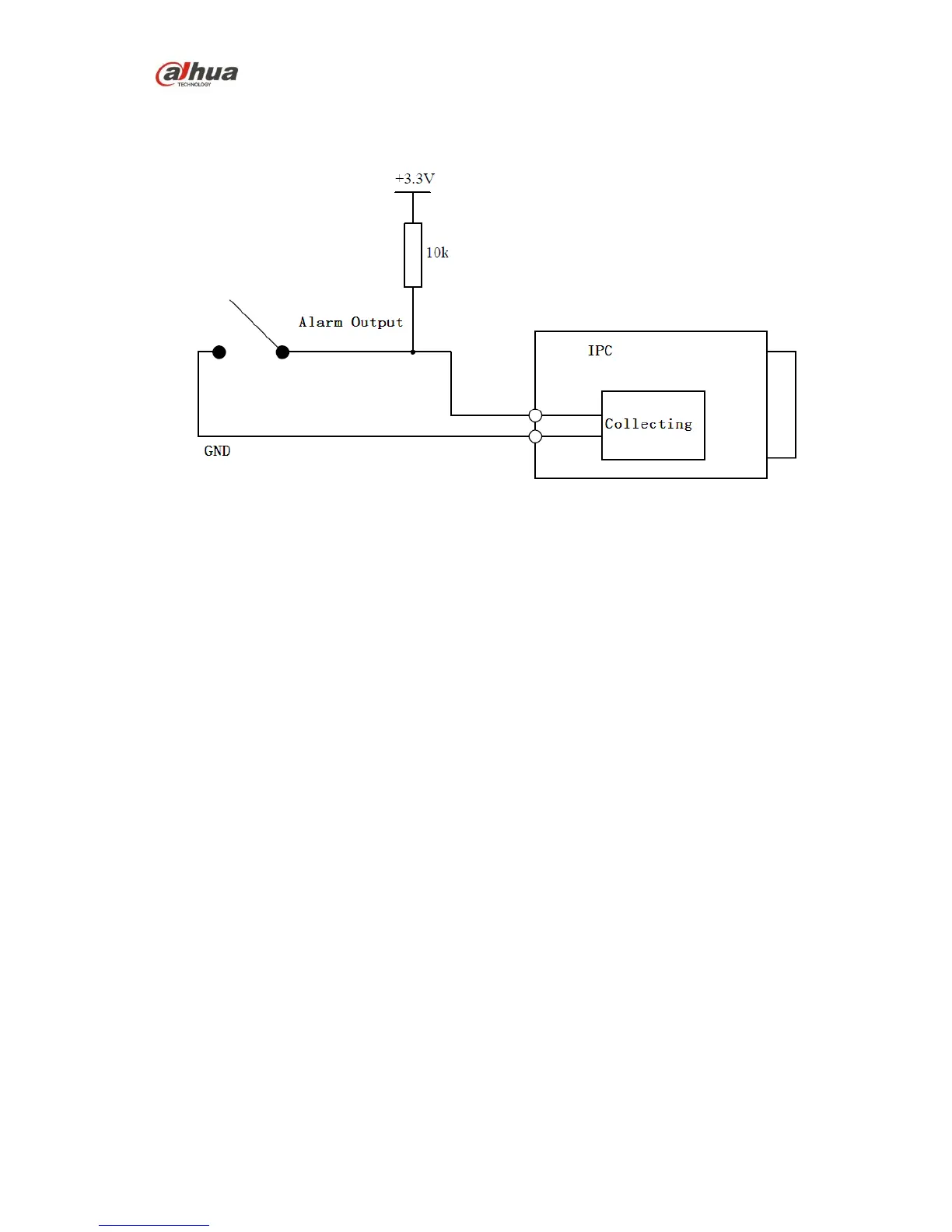

Figure 2-5 Alarm output
