Dahua NVR22-16P-4KS3 Series

To Next Page

To Previous Page

User's Manual

101

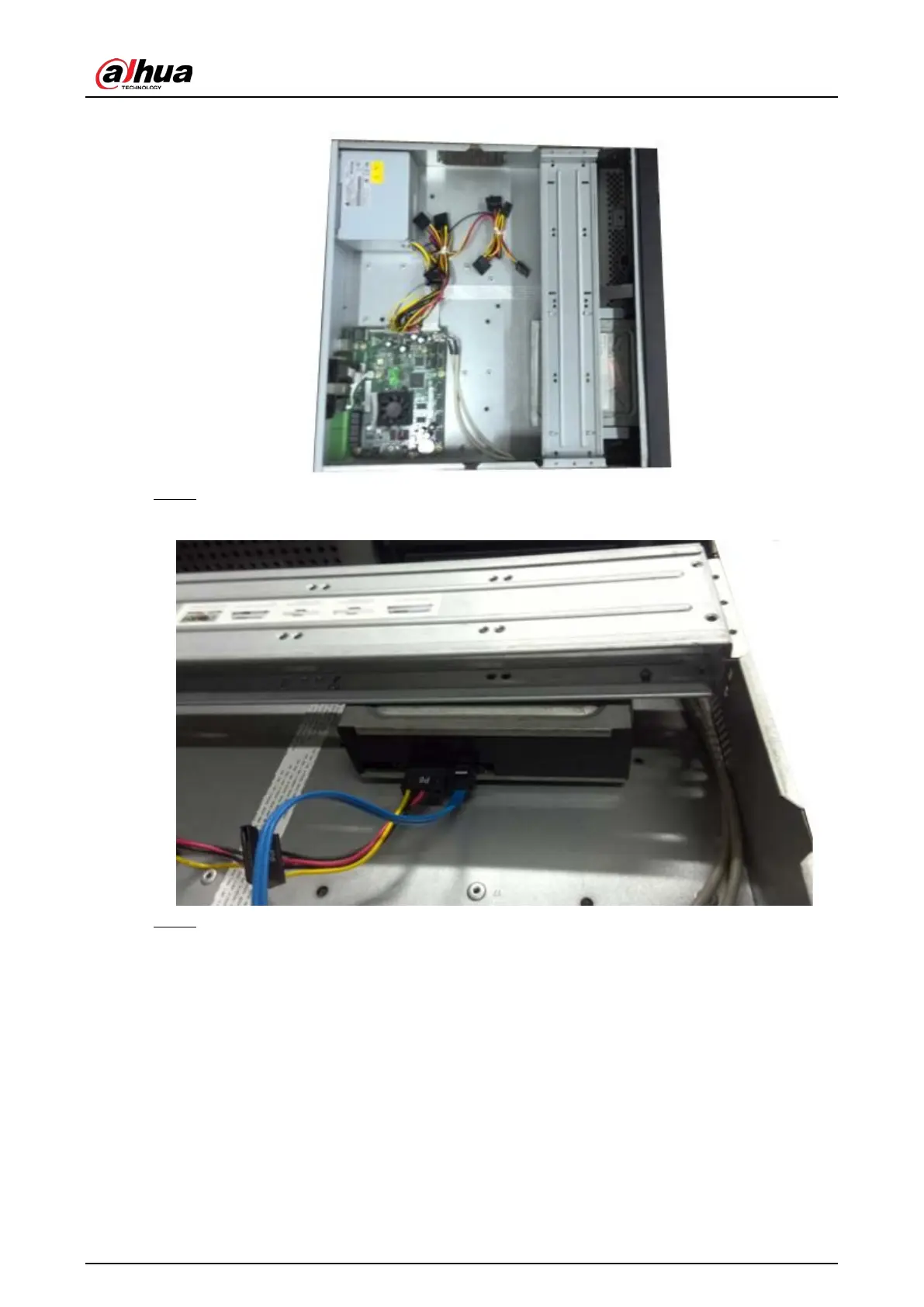

Figure 3-45 Put bracket back

Step 8 Connect the SATA cable and power wire.

Figure 3-46 Connect cables

Step 9 Secure the HDD bracket and put the top cover back.
