Dahua NVR22-16P-4KS3 Series - NVR22-4 KS2;NVR22-P-4 KS2;NVR22-8 P-4 KS2;NVR22-I;NVR22-I2;NVR22-P-I;NVR22-P- I2;NVR22-8 P-I;NVR22-8 P-I2;NVR22-16 P-I;NVR22-16 P-I2 Series

User's Manual
105
EI/NVR41HS-P-EI/NVR41HS-8P-EI

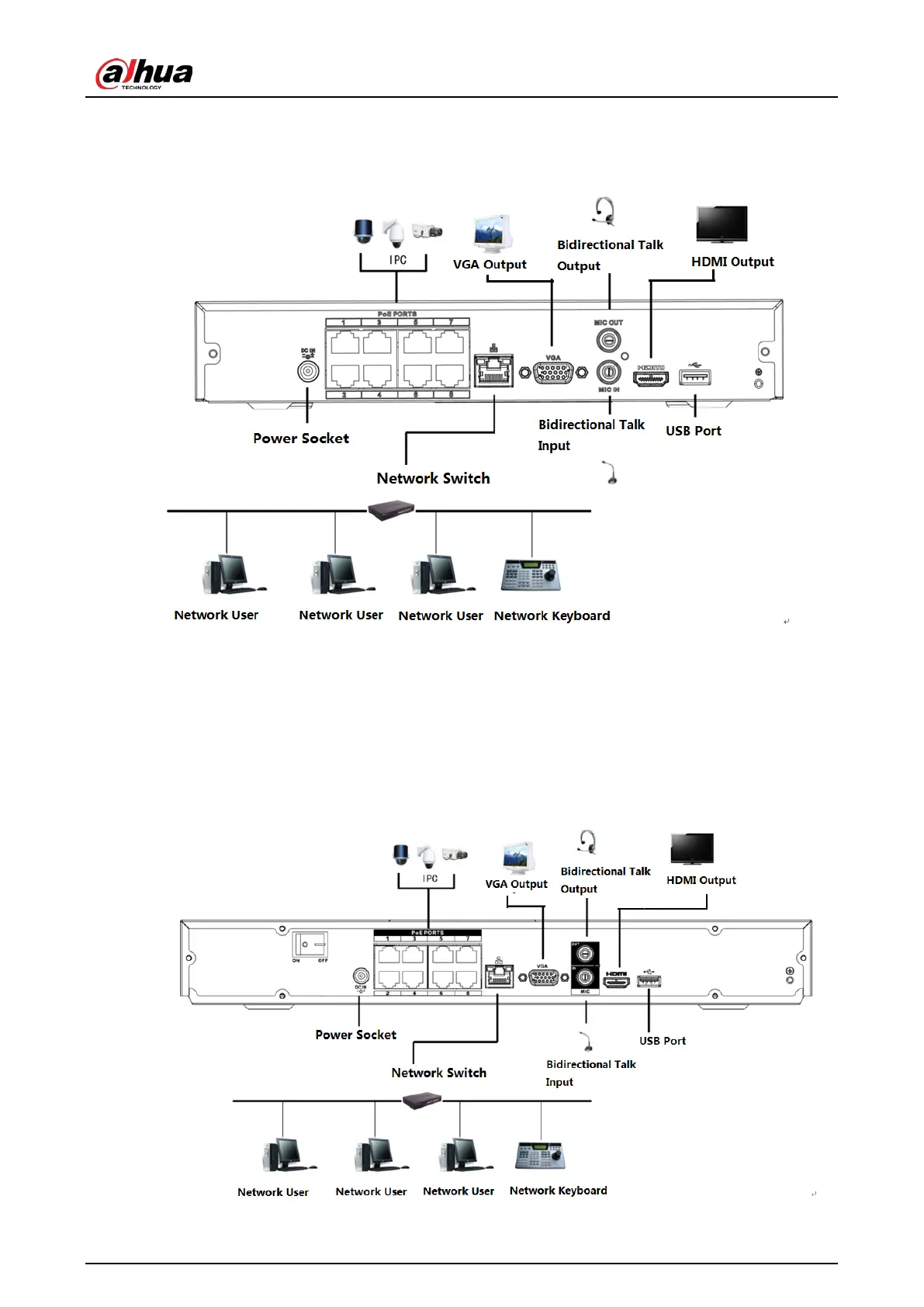

Figure 3-50 Typical connection
3.5.4 NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR22-I/NVR22-
I2/NVR22-P-I/NVR22-P-I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P-
I/NVR22-16P-I2 Series
Figure 3-51 Typical connection
