User's Manual

365

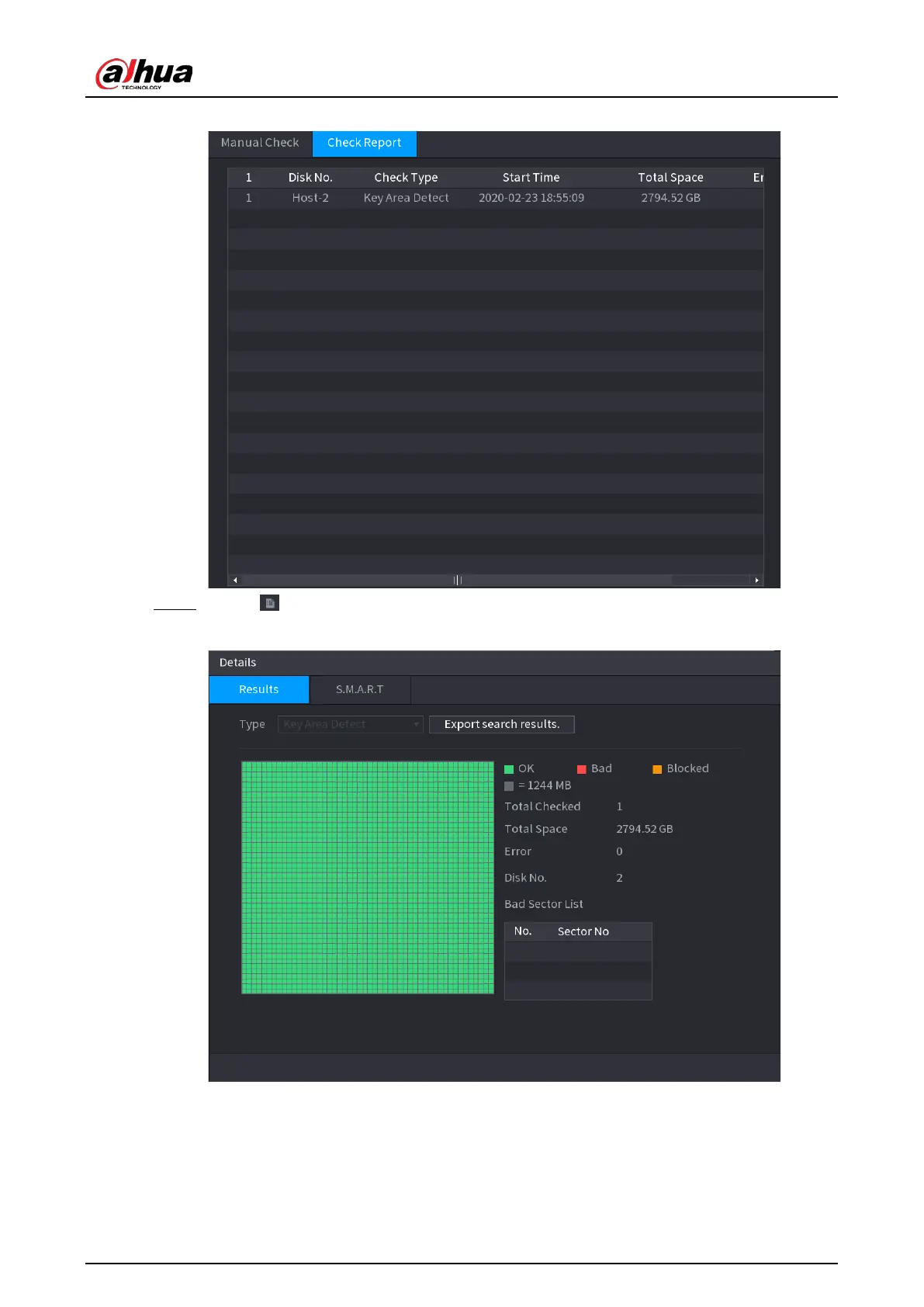

Figure 5-251 Check report

Step 2 Click to view detection results and S.M.A.R.T report.

Figure 5-252 Results
