Dahua NVR41-8P-4KS2L Series - NVR42;42 N;42-P;42-8 P;42-16 P Series

User's Manual
29
Port Name
Connection
Function
MIC OUT
Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
● Bidirectional talk output.
● Audio output on 1-window video monitor.
● Audio output on 1-window video playback.
GND
Ground end
PoE PORTS
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.

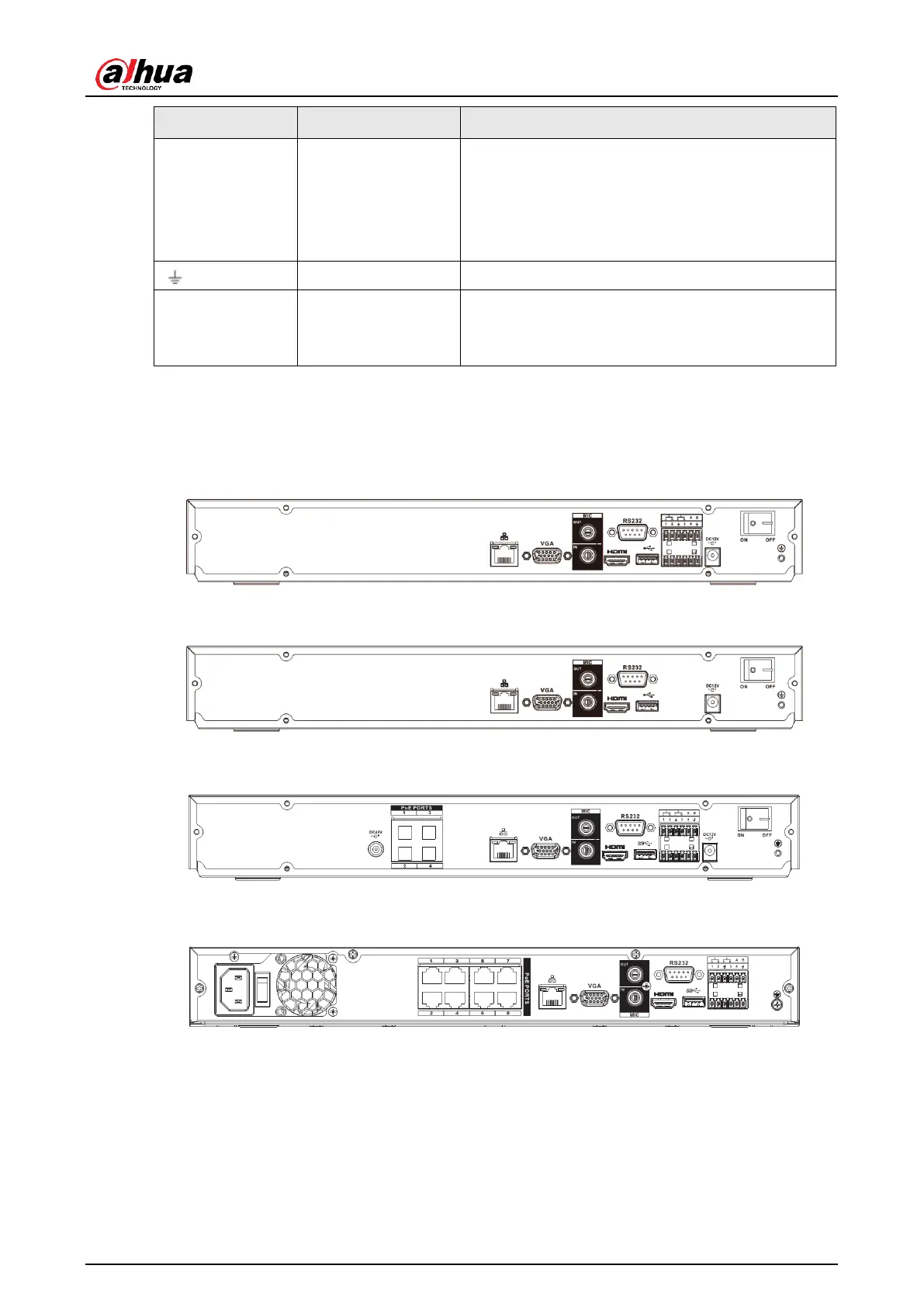

2.2.7 NVR42/42N/42-P/42-8P/42-16P Series
The NVR42 series rear panel is shown as below. See Figure 2-35.
Figure 2-35
The NVR42N series rear panel is shown as below. See Figure 2-36.
Figure 2-36
The NVR42-P series rear panel is shown as below. See Figure 2-37.
Figure 2-37
The NVR42-8P series rear panel is shown as below. See Figure 2-38.
Figure 2-38
The NVR42-16P series rear panel is shown as below. See Figure 2-39.
