2 SETUP BEFORE INSTALLATION
2.1 Check Accessories
Before the installation, please check the accessories one by one according to the packing list.
Please make sure all the components listed are included. (Please check the container list for
details.)
2.2 Open Device

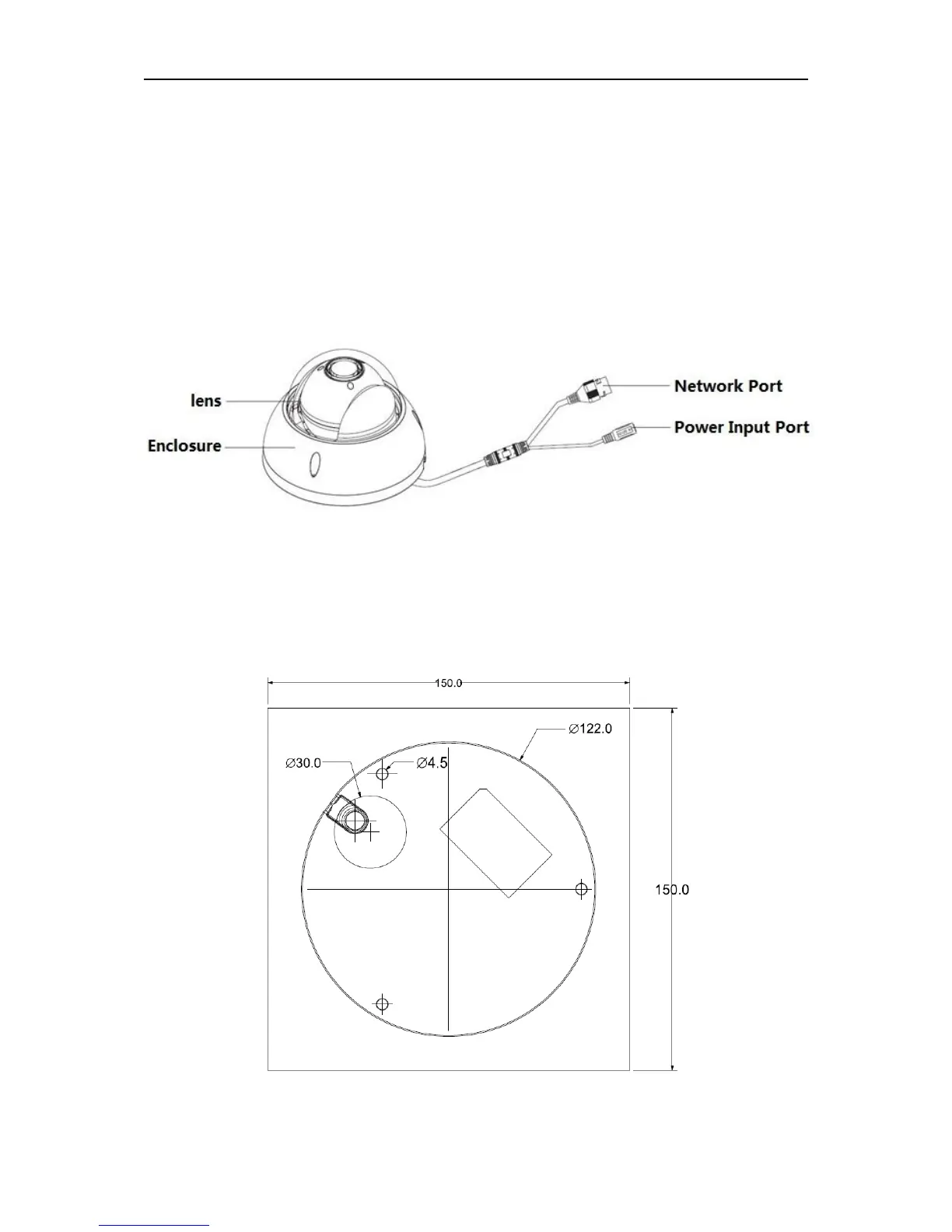

Remove the package and then take out the device. See Figure 2-1.
Figure 2-1
2.3 Installation Position Map
The installation position map is used for drilling positioning on the ceiling and outlet position. See
Figure 2-2.
Figure 2-2
