Dahua VTH1560B(W) User Manual

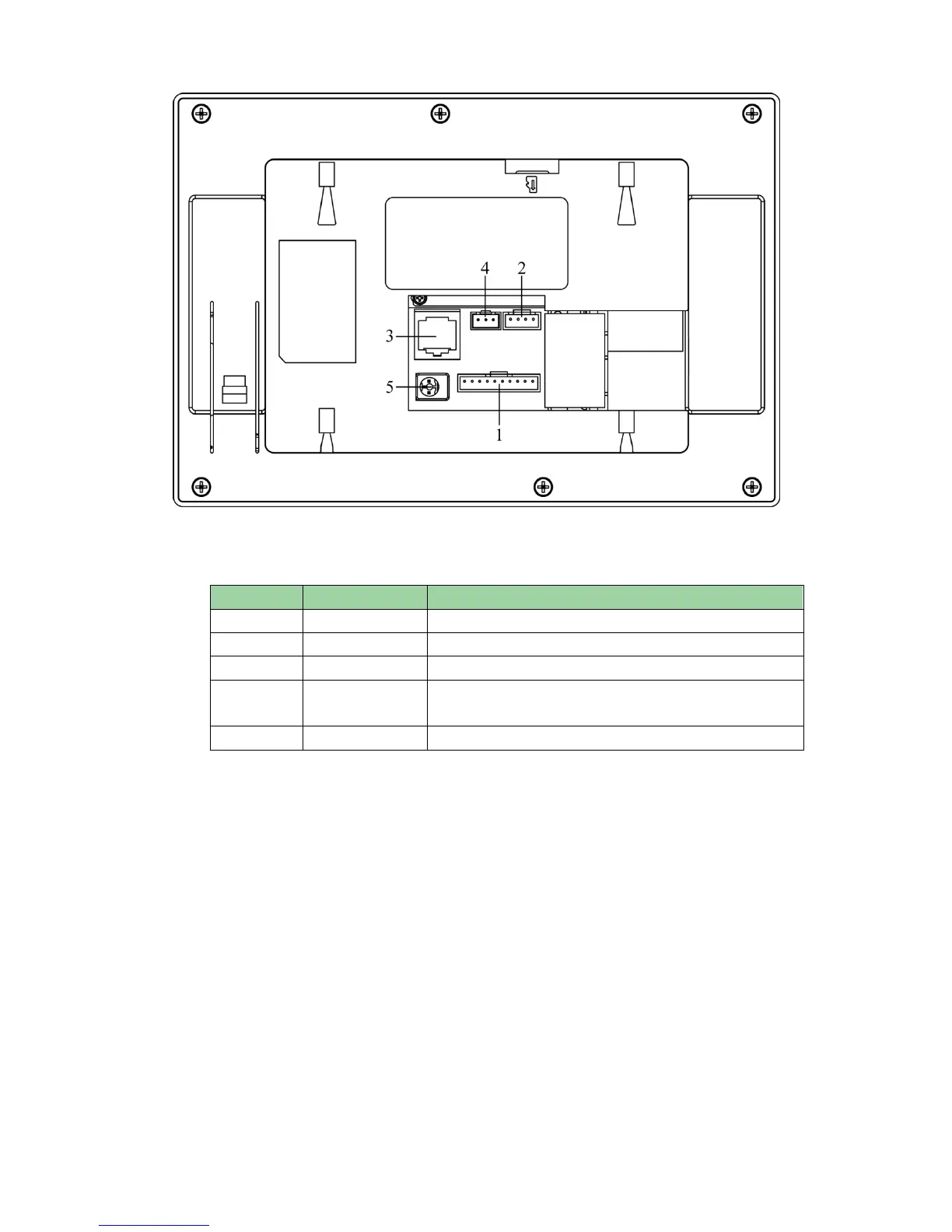

Figure 1- 11 VTH15 Series CH Model
No.
Name
Description
1
Alarm Port
8-ch alarm, please refer to tag.
2
Debug Port
Extension port, for RS485 communication port.
3
Network Port
Plug in network cable.
4
Alarm Output
Note:
Reserved port.
5
Power Port
Connect to 2-pin green 12V power supply.

Dahua VTH1560B(W) Specifications

General

Brand	Dahua
Model	VTH1560B(W)
Category	Intercom System
Language	English
