Dahua VTH1560B(W) User Manual

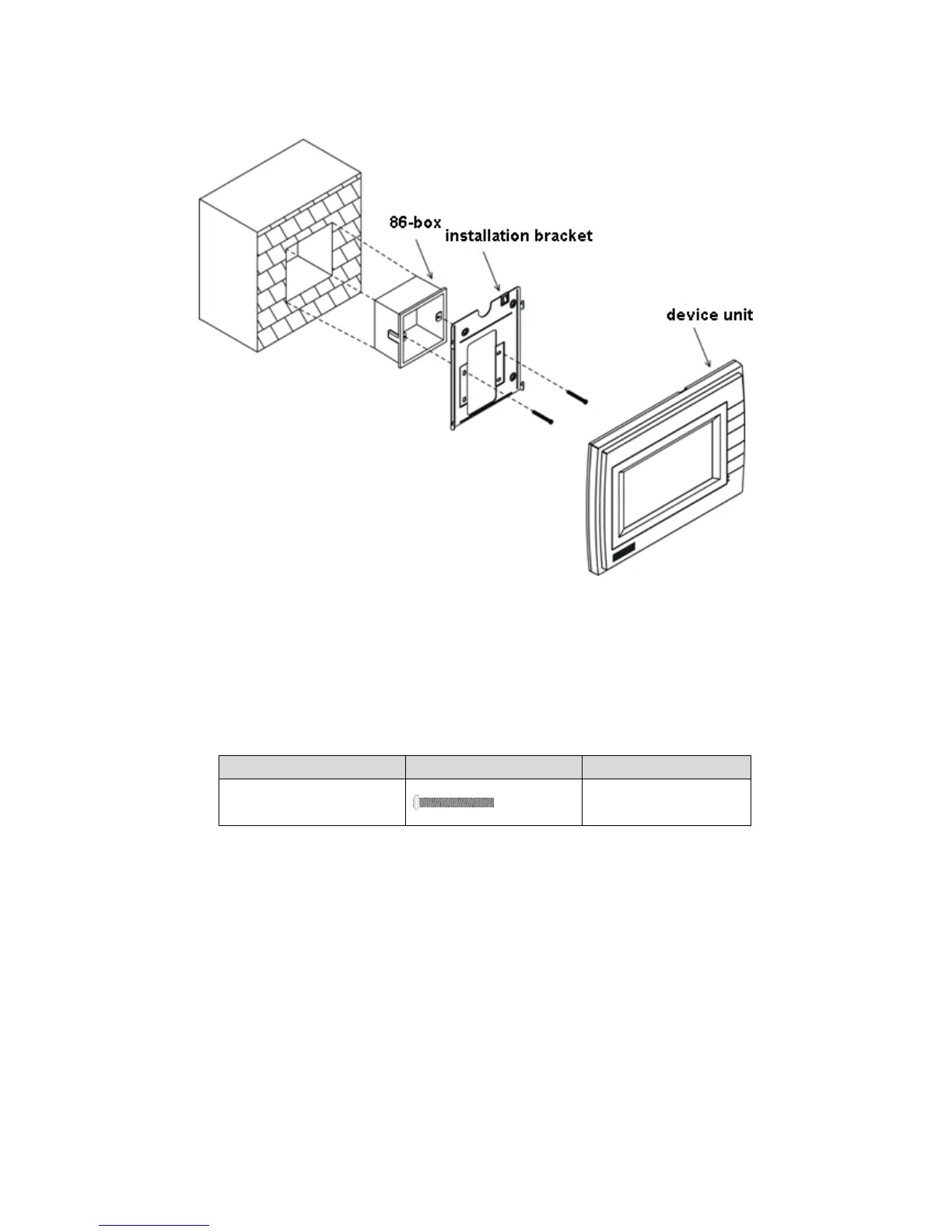

Figure 2- 1
2.1.1.2 Metal Case
This installation method is for CH model only, including VTH1510CH and VTH1520CH.
 Screw
Component Name
Illustration
Quantity
M4×30 cross pan head
machine screw
3
 Installation Step
Step 1. Embed metal case into wall.
Step 2. Fix installation bracket on metal case with screws.
Step 3. Fix device unit on installation bracket with buckle.
Note:
Distance from device center to ground is recommended to be 1400mm-1600mm.
