General types of lock in market are unlocking with power and unlocking without power. Here
make electric lock and Magnetic lock as example.
3.1.1 Install electric lock and unlock button

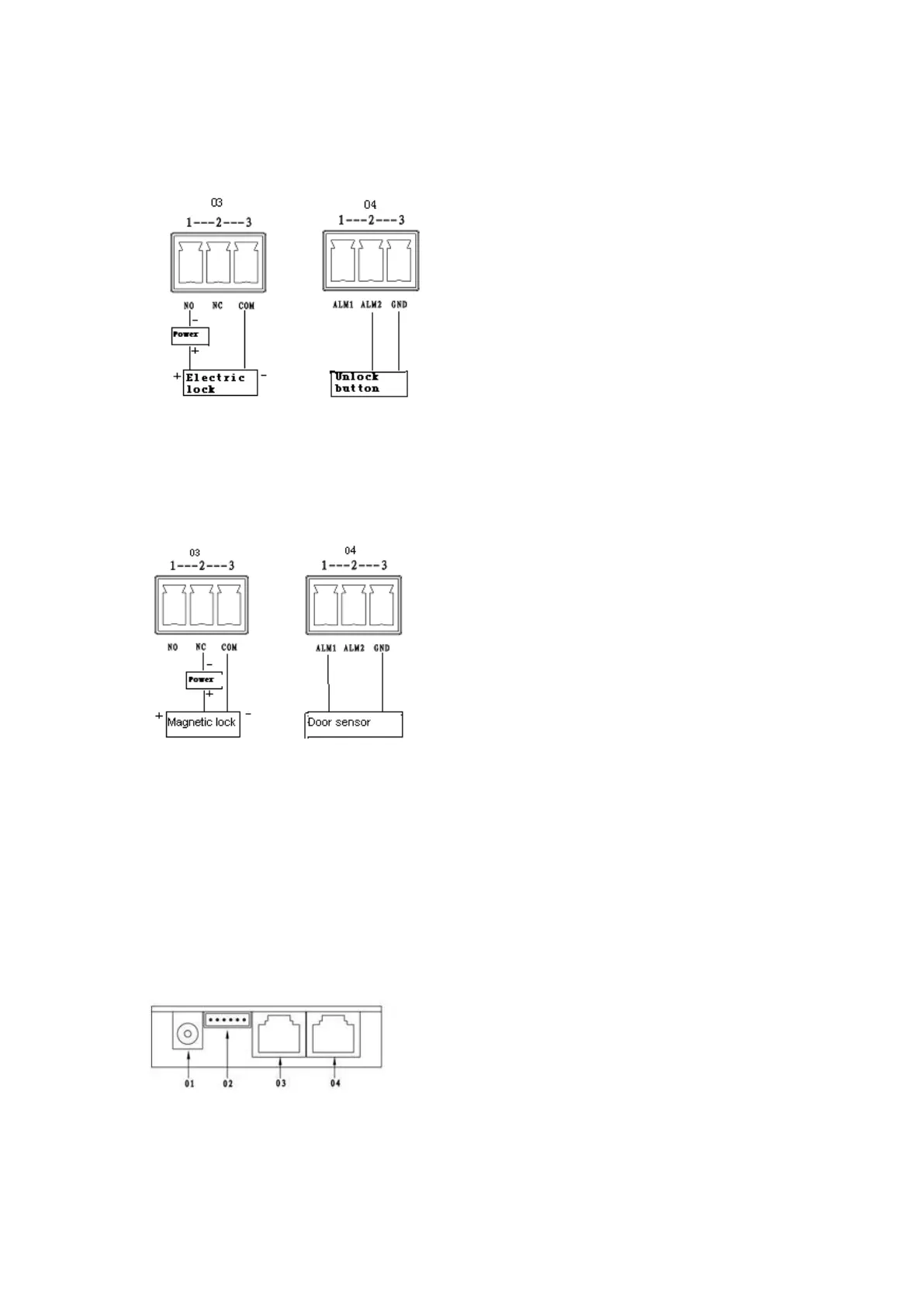

Figure 3-2
1. When connect VTO to electric lock, make
electric lock + toward VTO NO-end
(03.3-pin 1) and electric – toward VTO
COM-end (03.3-pin 3).
2. When connect VTO to unlock button,
make unlock button’s one end toward
VTO (04. 3-pin 2) ALM 2-end and unlock
button’s other end toward VTO (04.3-pin
3) GND-end.
See Figure4-2.
3.1.2 Install Door sensor
Figure 3-3
1. When connect VTO to magnetic lock,
make magnetic lock + toward VTO
(03.3-pin 2) NC-end and magnetic lock –
toward VTO (03. 3-pin 3) COM-end.
2. When VTO is connected to door sensor of
magnetic feedback, make door sensor’s
one end toward VTO (04. 3-pin 1)
ALM2-end to unlock and make door
sensor’s other end toward VTO (04. 3-pin
3) GND-end. See Figure4-3.
3.2 VTO5110B
Definition of VTO6110B ports:
VTH can be connected to any port on VTO.
Figure 3- 4
01. Power port: to input DC +24V.
02. Lock port:
03. Port 1: to VTH 1
04. Port 2: to VTH 2
See Figure4-4
3.2.1 Install electric lock and unlock button
