Dahua VTO6210B

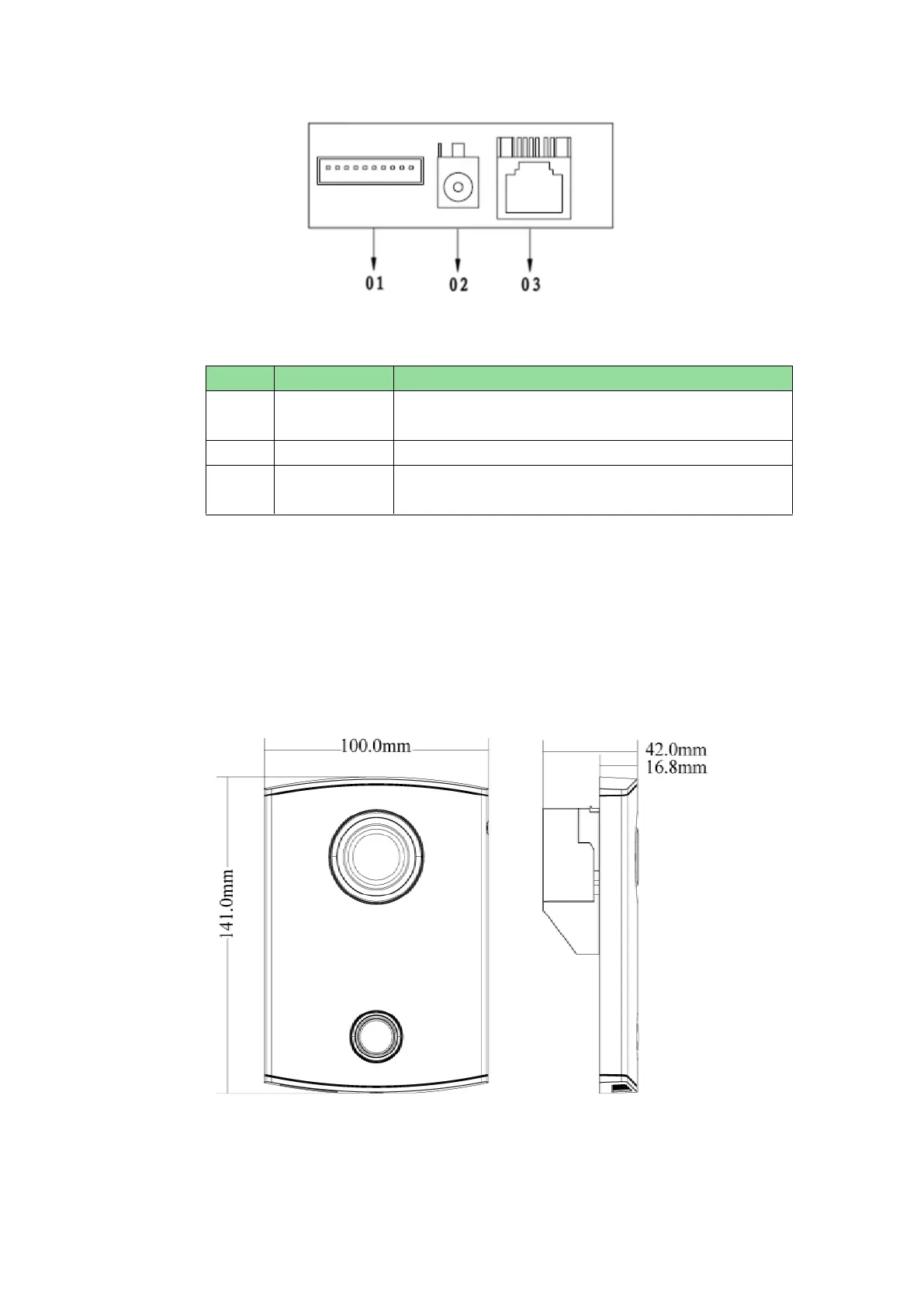

Figure 2- 7
No.
Port Name
Note
01
10-Pin Port
Connect to door lock, door sensor and unlock button.
It provides preserved 485 port for other devices.
02
Power
Input DC 12V
03
Network Port
1
Plug in RJ45 cable
2.5 VTO6000C/VTO6000CM/VTO6100C
2.5.1 Dimension
Before you install the device, please make sure you know the dimension of device and
select appropriate installation method. See Figure 2- 8.
Figure 2- 8
2.5.2 Installation Step
