Dahua VTO6210B

3
Card Swiping
Area
Authorize IC card and unlock by swiping IC card
(must connect to access control extension module).
Note:
Only VTO6100C supports IC card unlocking function.
Silk-screen in this area may vary for different
product.
4
Call Button
Lightly touch button area, to call center or VTH.
Blue NO: VTO is under standby status.
Blue flashing: VTO is calling or in call status.
Yellow: IC card unlocking or call is abnormal.
1.4.2 Rear Panel

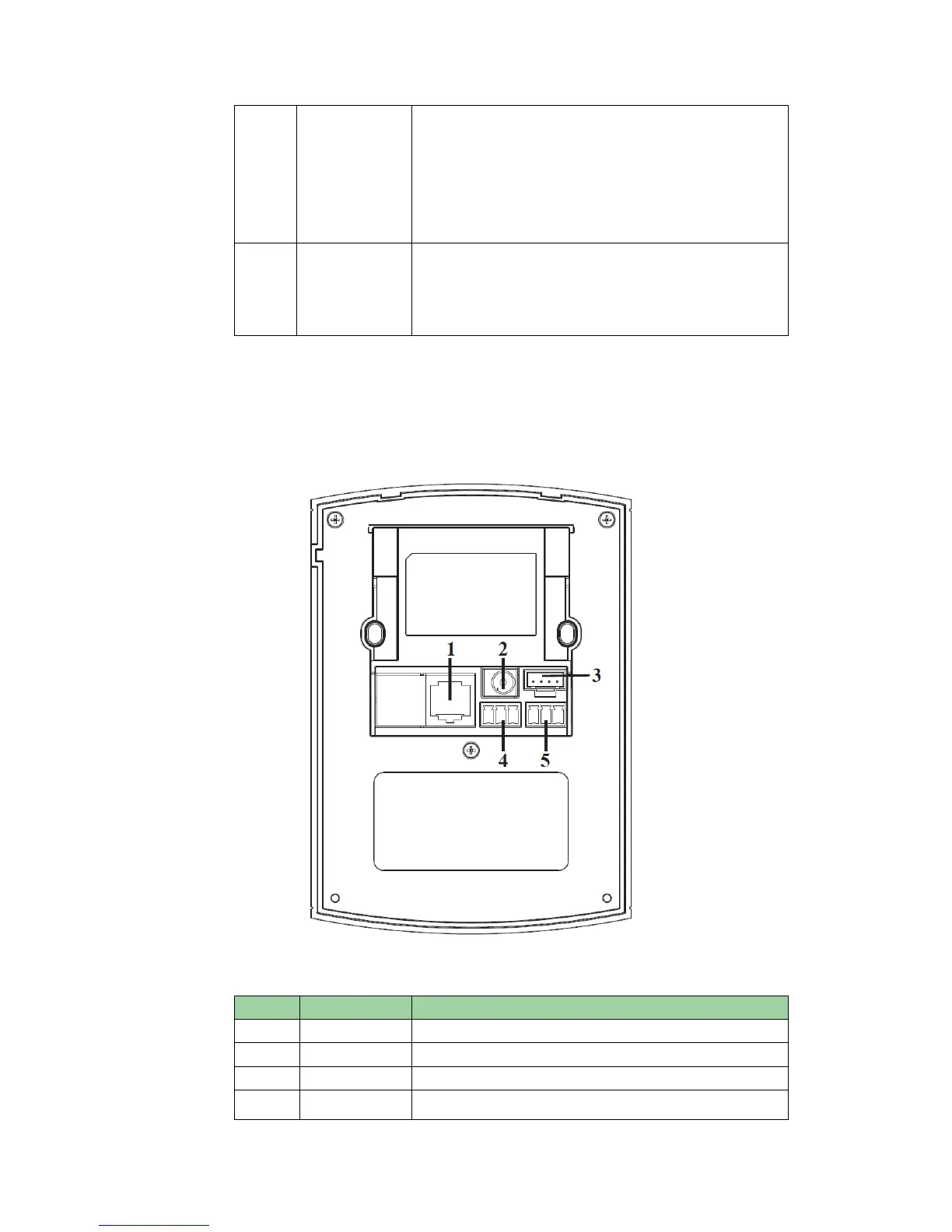

Figure 1- 8 VTO6000C/VTO6000CM/VTO6100C
No.
Port Name
Note
1
Network Port
Connect to network cable（RJ45 port）.
2
Power
Connect to 12V DC.
3
Debug Port
For installer use.
4
Green Port 1
Connect to lock.
