3.2.4 VTO2101E-P

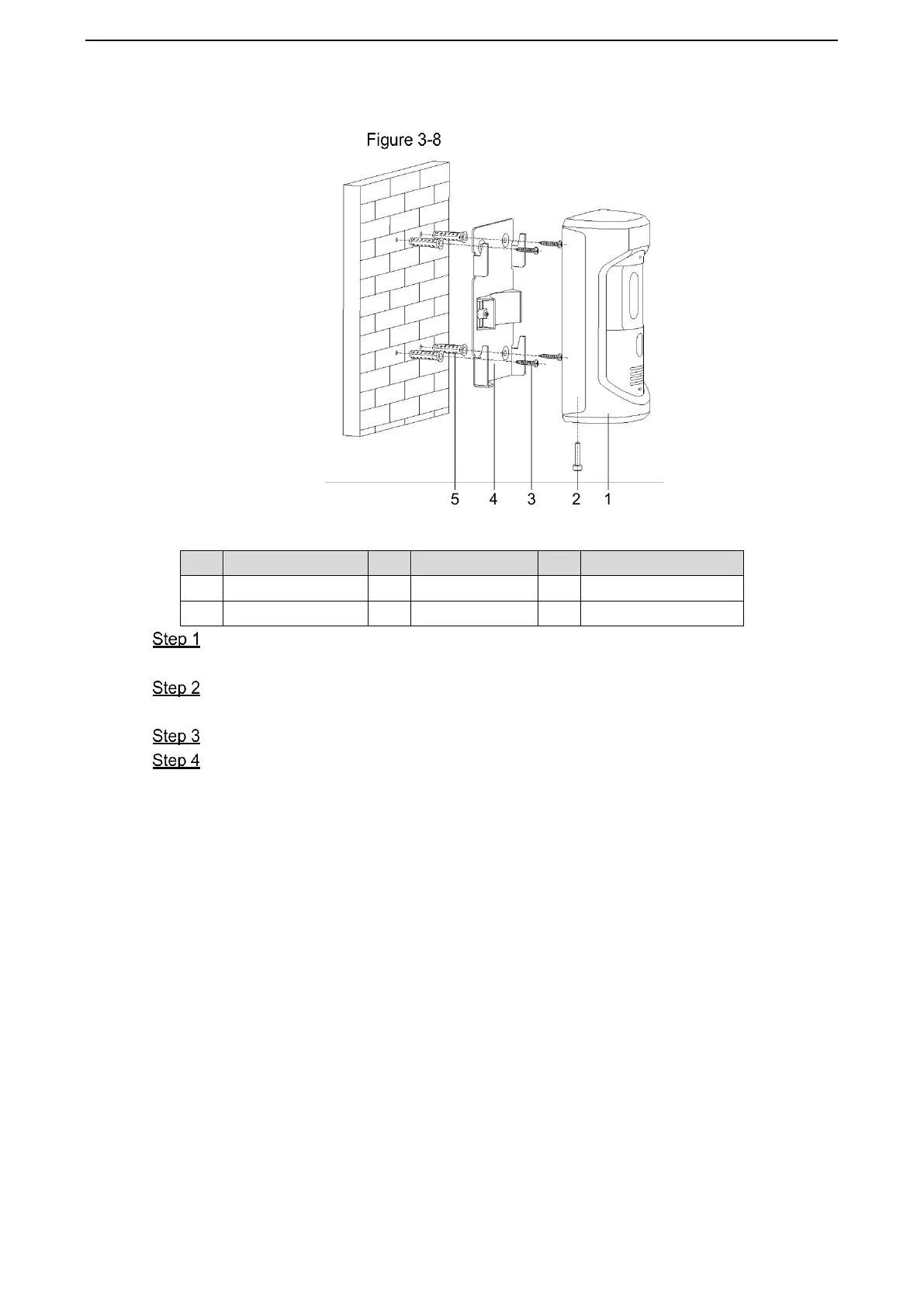

VTO2101E-P installation
Table 3-3 Item list
No.
Item
No.
Item
No.
Item
1
VTO
2
M4×30 screw
3
ST3×18 screw
4
Mounting bracket
5
Expansion bolt
6
–
Drill screw holes on the wall according to those on the mounting bracket, and then put
the expansion bolts in.
Connect the ports on the rear panel to those in the wall through the mounting bracket.
See "2.4.2 Rear Panel."
Fix the mounting bracket on the wall with ST3×18 screws.
Fix the VTO on the bracket with the M4×30 screw.
