Daikin 2MXS18NMVJUA User Manual

Outdoor Unit SiUS121736EA

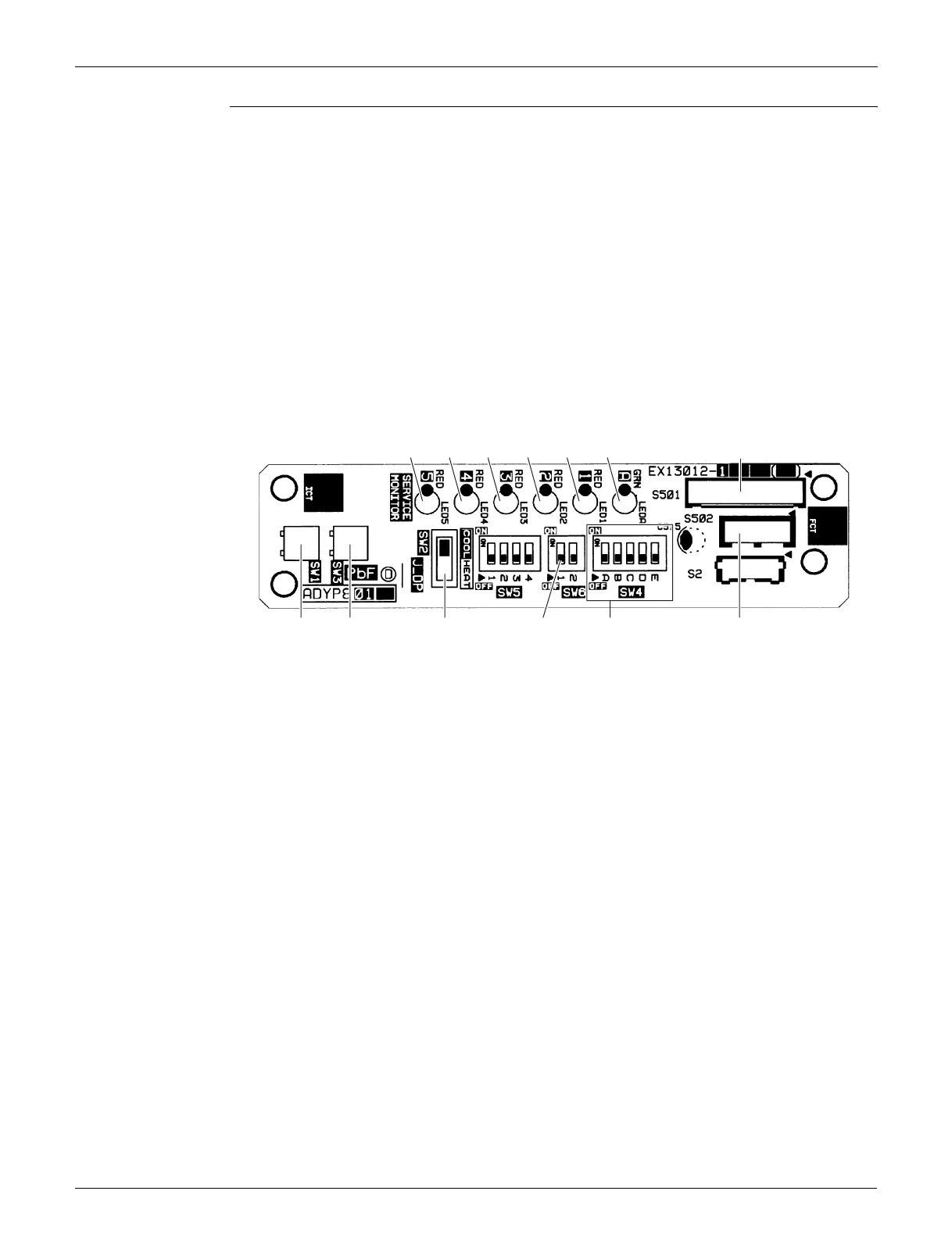

45 Printed Circuit Board Connector Wiring Diagram
Service Monitor
PCB (PCB2)
 SW6-2 and all the switches of SW5 have no function. Keep them OFF.
1) S501, S502 Connector for main PCB (PCB1)
2) LED A LED for service monitor (green)
3) LED1 - LED5 LED for service monitor (red)
4) SW1 Forced operation ON/OFF switch
∗ Refer to page 222 for details.
5) SW2 Operation mode switch
∗ Refer to page 222 for details.
6) SW3 Wiring error check switch
∗ Refer to page 223 for details.
7) SW4 Priority room setting switch
∗ Refer to page 230 for details.
8) SW6-1 NIGHT QUIET mode setting switch
∗ Refer to page 231 for details.
3P346711-10
S502SW6-1SW2SW3
LED5 LED4 LED3 LED2 LED1 LED A S501
SW1 SW4

Daikin 2MXS18NMVJUA Specifications

General

Refrigerant	R-410A
Cooling Capacity	18000 BTU
Power Supply	208/230V, 60Hz
Indoor Unit Dimensions (W x H x D)	Varies by indoor unit model
Indoor Unit Weight	Varies by indoor unit model
Operating Temperature (Cooling)	14°F to 115°F
